Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PW1L-R6AFB002P0G22MM PIEZO DOT 12VDC GREEN |
9 |
|
Datasheet |
PW1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|

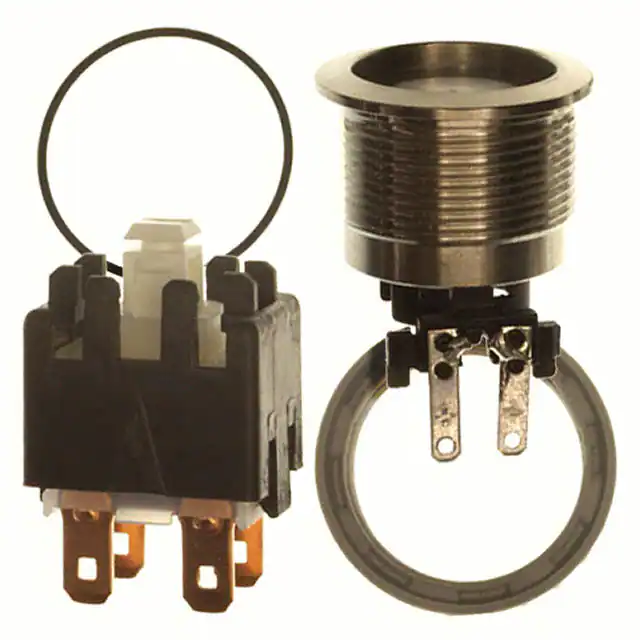

1241.6834.1121000SWITCH PUSHBUTTON DPST 12A 250V |
24 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
A165L-TAM-12D-1SWITCH PUSHBUTTON SPDT 5A 125V |
19 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A16L-AGA-5D-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Green | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
104350108SWITCH PUSHBUTTON SPDT 3A 24V |
25 |
|
Datasheet |
10400 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (DC) | - | 24 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 10.20mm Dia | -40°C ~ 85°C |
|
3-110-094SWITCH PUSHBUTTON SPST 100MA 42V |
5 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
MPI002/FL/BL/24SWITCH PUSH SPST-NO 0.05A 24V |
4 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Wire Leads | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
AVP16MS04H000T5B04SWITCH PUSHBUTTON SPST-NO 1A 24V |
24 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
1.10.010.001/0441SWITCH PUSH SPST-NO 100MA 35V |
22 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A165L-AAA-12D-1SWITCH PUSHBUTTON SPDT 5A 125V |
6 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
3-135-363TTS22 SWITCH MO NO 100MA RI RGB |
20 |
|
Datasheet |
TTS | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 48 V | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 85°C |
|

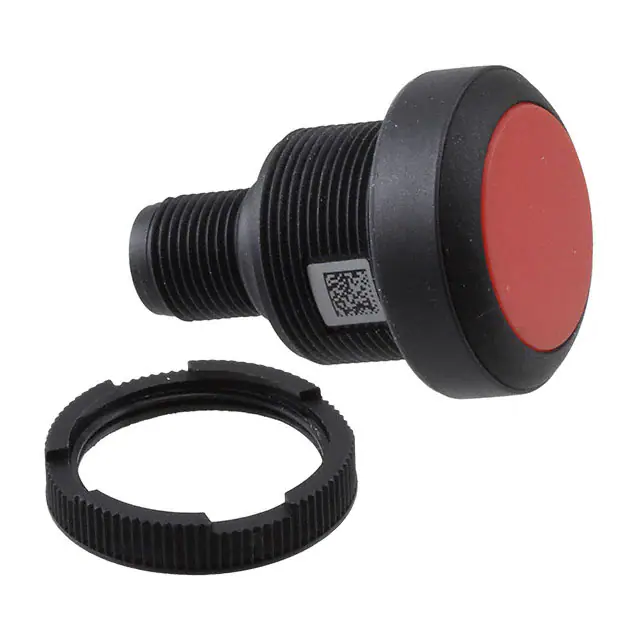

1.10.011.001/0331SWITCH PUSH SPST-NO 100MA 35V |
3 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Red | LED, Red | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

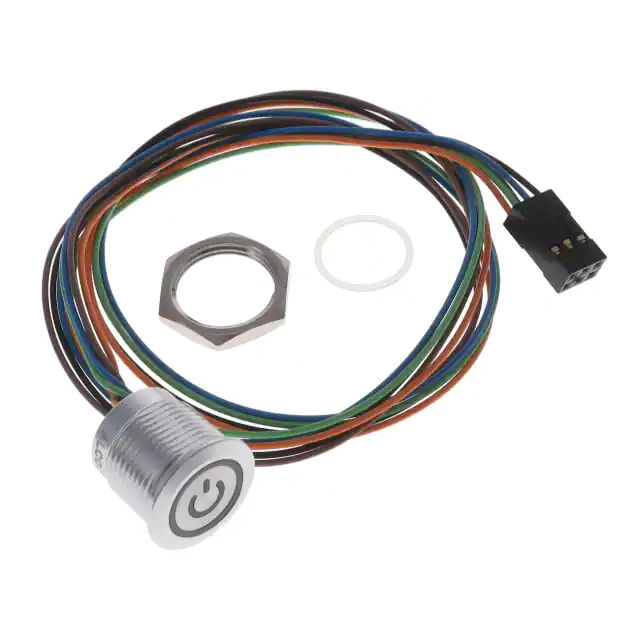

AVC16LAIOFE13T5B04SWITCH PUSHBUTTON SPST 1A |
19 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
|
AV9S0D202001SWITCH PUSH SPST-NO 0.05A 24V |
16 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
A165-TRM-2SSWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Screwless Clamp | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A16L-TAM-5D-1SWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165-TBM-2SSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Screwless Clamp | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
1.10.011.201/0201SWITCH PUSH SPST-NO 100MA 35V |
2 |
|
Datasheet |
RAMO 22 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | White | LED, White | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
1241.8544SWITCH PUSHBUTTON SPST 12A 250V |
22 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
|
3-101-009SWITCH PUSHBUTTON SPST 16A 250V |
10 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
