Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

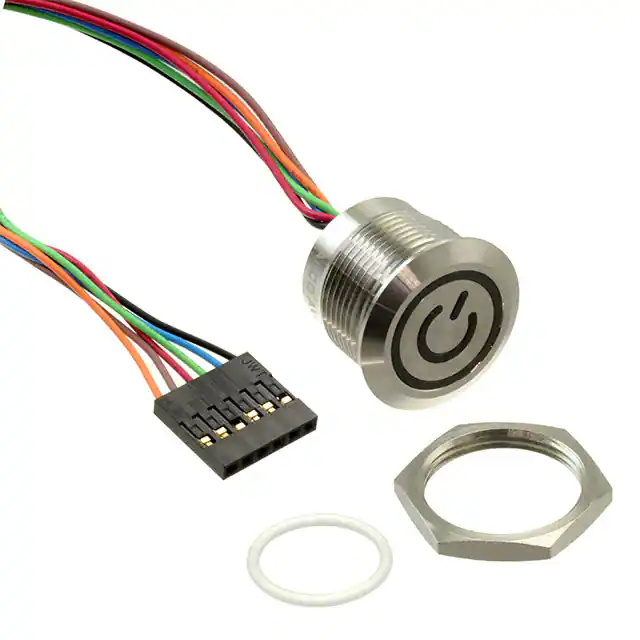

AVC19MS16FE1DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
14 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
XB7NJ04B1ILLUMINATED PUSH BUTTON, HARMONY |
12 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
PN1L-M4AFB002D0W30MM PIEZO RING 12VDC WHITE |
10 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
3-101-030SWITCH PUSHBUTTON SPST 16A 250V |
9 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|

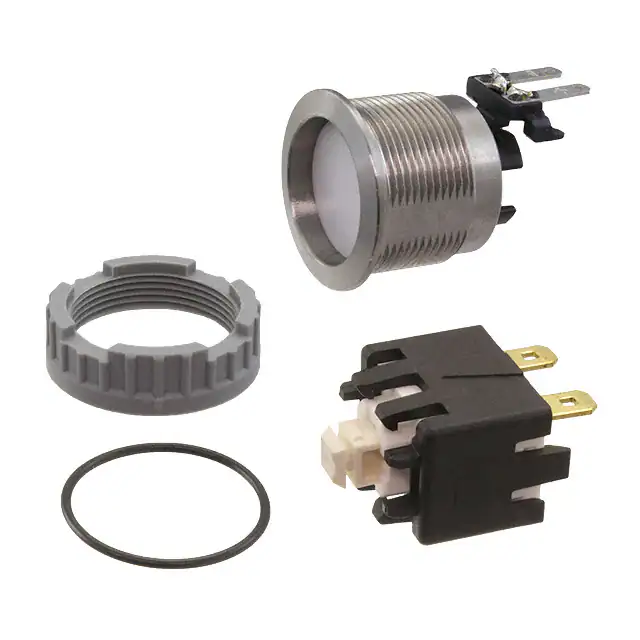

1241.8560SWITCH PUSHBUTTON SPST 12A 250V |
8 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
1.15.108.977/0000SWITCH PUSHBUTTON 4PST 4A 250V |
5 |
|
Datasheet |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 4A (AC), 200mA (DC) | 250 V | 230 V | Round, Button | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
A165L-TAM-5D-2SWITCH PUSHBUTTON DPDT 5A 125V |
5 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

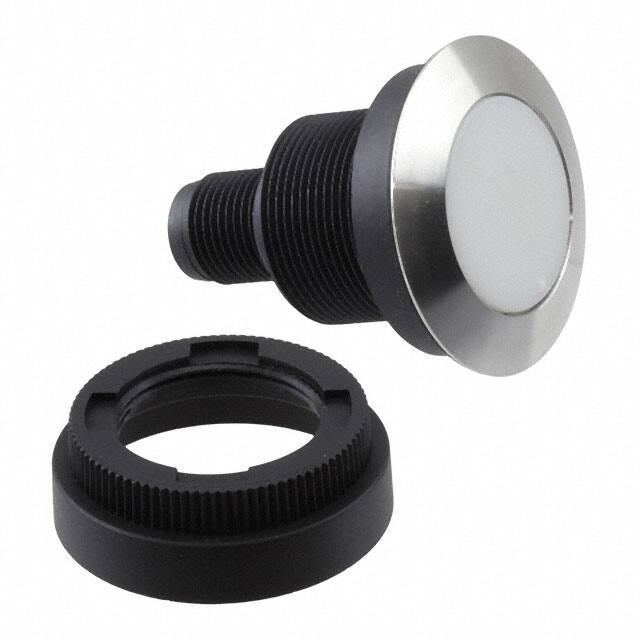

1.11.011.201/0200SWITCH PUSH SPST-NO 100MA 35V |
4 |
|
Datasheet |
RAMO 30 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | White | LED, White | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 30.30mm Dia | -25°C ~ 70°C |
|
A3U-TBW-A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
5 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | White | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
1241.8566SWITCH PUSHBUTTON DPST 12A 250V |
4 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
|
PBAR1AF3000SWITCH PUSH SPST-NO 0.2A 24V |
16 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
|
PBAR6BF0000PIEZO PUSHBUTTON SWITCH |
20 |
|
Datasheet |
PBA | Tray | Active | Panel Mount, Front | Piezo | SPST-NC | On-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Natural | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|

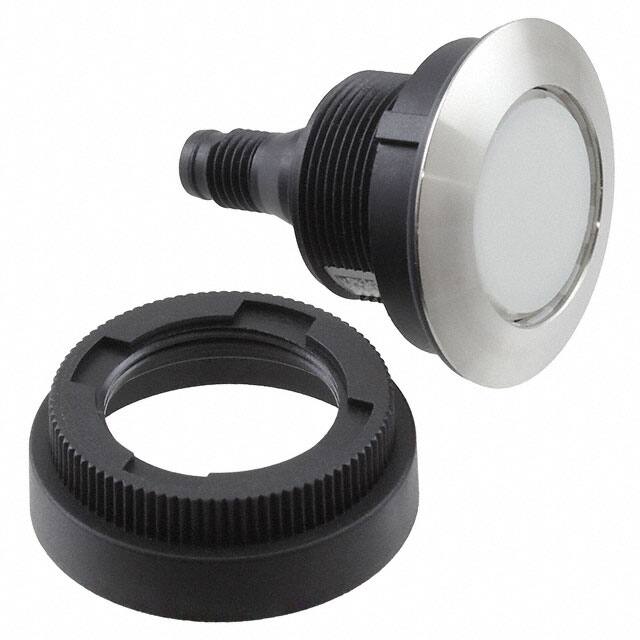

1.11.010.201/0200SWITCH PUSH SPST-NO 100MA 35V |
19 |
|
Datasheet |
RAMO 30 T | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 35 V | Round, Button, Flush | No Marking | White | LED, White | 24 VDC | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 30.30mm Dia | -25°C ~ 70°C |
|
AVP19MAIBFE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
9 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
|
1241.6834.1121074SWITCH PUSHBUTTON DPST 12A 250V |
20 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
|
2ZAP-BSWITCH PUSH SPDTX2 15A 125V |
2 |
|
Datasheet |
ZAP | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 80°C |
|
|
A3UL-TBU-1A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
2 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 5 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TBU-2A2C-MSWITCH PUSHBUTTON DPDT 0.1A 30V |
2 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 12 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
82-6657.2114SWITCH PB SPDT 3A 240V |
5 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
ZB5AW063COMPLETE BODY/CONTACT ASSEMBLY A |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | - | - | 250 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
