Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3PJ-90A11-24ERSWITCH PUSHBUTTON SPDT 5A 125V |
13 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
A3PJ-90A11-24EOSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
AV24LP402SWITCH PUSHBUTTON SPDT 5A 250V |
14 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 24.20mm Dia | -20°C ~ 55°C |
|

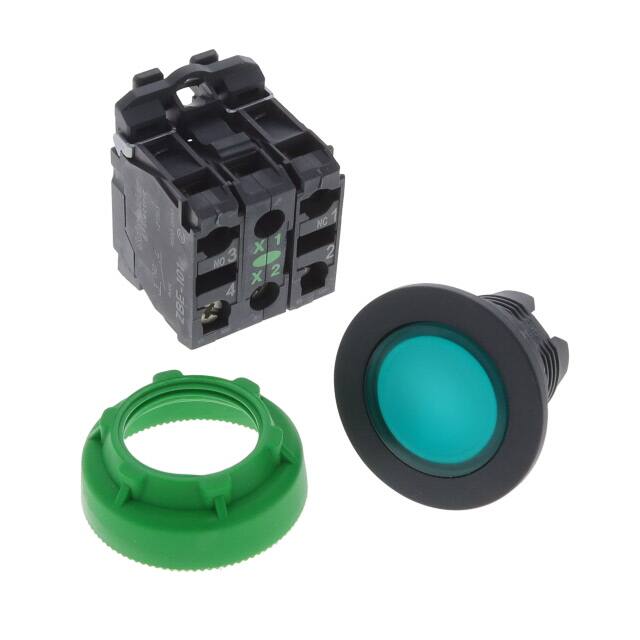

XB5FW33M5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 220 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW31B5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW31M5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | Neon, White | 220 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|

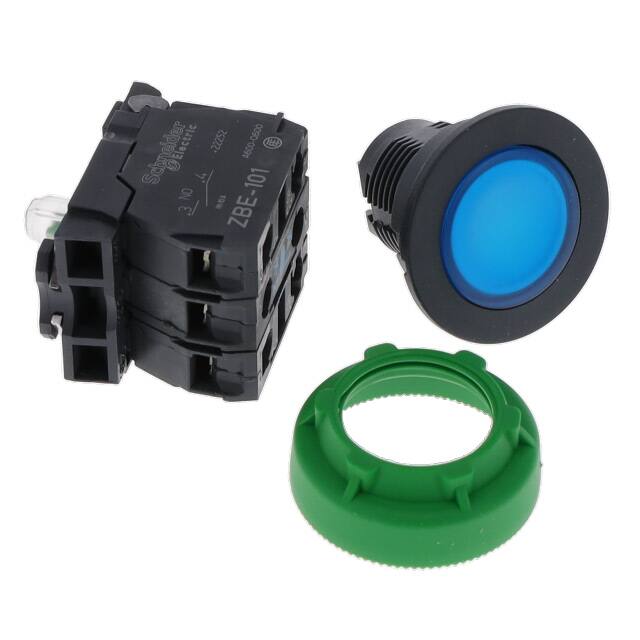

XB5FW36M5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 220 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW34B5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | Incandescent, Red | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW36B5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW35M5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 220 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW34M5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | Neon, Red | 220 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB5FW35G5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | Neon, Orange | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FW31G5HARMONY XB5, ANTIMICROBIAL ILLUM |
10 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | Neon, White | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
A3PJ-90C11-24EGSWITCH PUSHBUTTON DPDT 5A 125V |
2 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
A3KA-90C1-24EWPUSHBUTTON SWITCH |
2 |
|
Datasheet |
A3K | Box | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
XB5AW73731G5HARMONY XB5, ILLUMINATED DOUBLE- |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB5FW36G5HARMONY XB5, ANTIMICROBIAL ILLUM |
9 |
|
Datasheet |
XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | Neon, Blue | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
K30APPBXXQK30 SERIES EZ-LIGHT: NO COLOR PU |
5 |
|
Datasheet |
K30 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 150mA (DC) | - | 30 V | Round, Button, Domed | No Marking | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 50°C |
|
84-ASKS-B14-04A0SWITCH PB 0.2A 32V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 32 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | -30°C ~ 65°C |
|
84-ASKS-B10-049CSWITCH PB 0.2A 32V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 32 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | -30°C ~ 65°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
