Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH19LSFE6122604SWITCH PUSHBUTTON SPDT 26A 125V |
6 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFE3242604SWITCH PUSHBUTTON SPDT 26A 125V |
1 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
YB25WSKW01-5D-JBSWITCH PUSHBUTTON DPDT 3A 125V |
16 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
1.15.210.001/0301LUMOSTAST 16 PB NON-ILLUMINABLE |
8 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
SW-PB7-03LB22CFRB12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
40 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
SW-PB7-03LB22CFRR12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
40 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Red | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
SW-PB7-03LB22CFPR12VANTI-VANDAL PUSHBUTTON SWITCH, 1 |
24 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Red | 12 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
DH252NBSYGNSWITCH PB 4PST-2NO/2NC 2A 125V |
13 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PDT (DB/DM) | On-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Yellow | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
A16-JGA-1SWITCH PUSHBUTTON SPDT 5A 125V |
25 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AV2511000T5Q04SWITCH PUSHBUTTON SPDT 3A 250V |
0 |
|
Datasheet |
AV25 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
W58M-A12B12PBS 22MM SPST 0.1A 48V MOM METAL |
100 |
|
Datasheet |
W58M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button, Flush | - | Silver | LED, Blue | 3.2 VDC | Wire Leads | - | - | - | - |
|
LPI3124G1XX1711SWITCH PUSH SPST-NO 0.05A 24V |
4 |
|
Datasheet |
LPI | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | White | LED, Green | 24 VDC | Screw Terminal | IP40 | Tactile Feedback | Circular - 38.10mm Dia | -20°C ~ 65°C |
|
|
A3AT-90L1-00EGSWITCH PUSH SPST-NO 6A 125V |
10 |
|
Datasheet |
A3A | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | IP00 | - | Circular - 11.50mm Dia | -10°C ~ 55°C |
|
PV8F2U0SS-335SWITCH PB 4PST-2NO/2NC 2A 48V |
15 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
DH251LBGGNSWITCH PB DPST-NO/NC 2A 125V |
20 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
|
YB225CWCKG01-N-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
12 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB26WRKW01-5F24-JFSWITCH PUSHBUTTON DPDT 3A 125V |
12 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
XB7NA11HARMONY XB7, MONOLITHIC PUSH BUT |
10 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
AV044746A200SWITCH PUSHBUTTON DPDT 6A 125V |
35 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP54 - Dust Protected, Water Resistant | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|

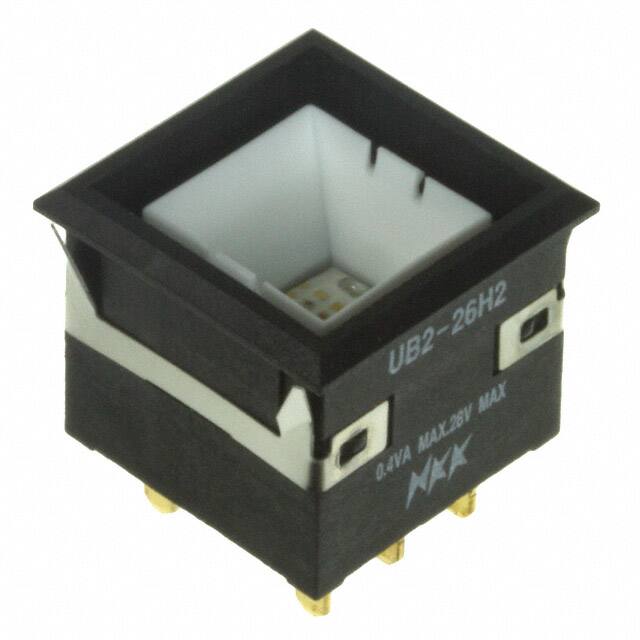

UB226KKG016CFSWITCH PUSH DPDT 0.4VA 28V |
18 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
