Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH221LGSRG24SWITCH PB DPST-NO/NC 2A 125V |
20 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH221LBSRG6SWITCH PB DPST-NO/NC 2A 125V |
19 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH221LGSRG12SWITCH PB DPST-NO/NC 2A 125V |
18 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB26RKW01-6B-JBSWITCH PUSHBUTTON DPDT 3A 125V |
11 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB225KKW016CF-3JBLOW PROFILE PUSHBUTTON/ILLUMINAT |
19 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
SW-PB7-04MB42ARMLOW PROFILE ANTI-VANDAL PUSHBUTT |
70 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (AC), 100mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.10mm Dia | -30°C ~ 85°C |
|
AVH19LSFPB241604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFPA121604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFE1B241604SWITCH PUSHBUTTON SPDT 16A 125V |
100 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFPB121604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|

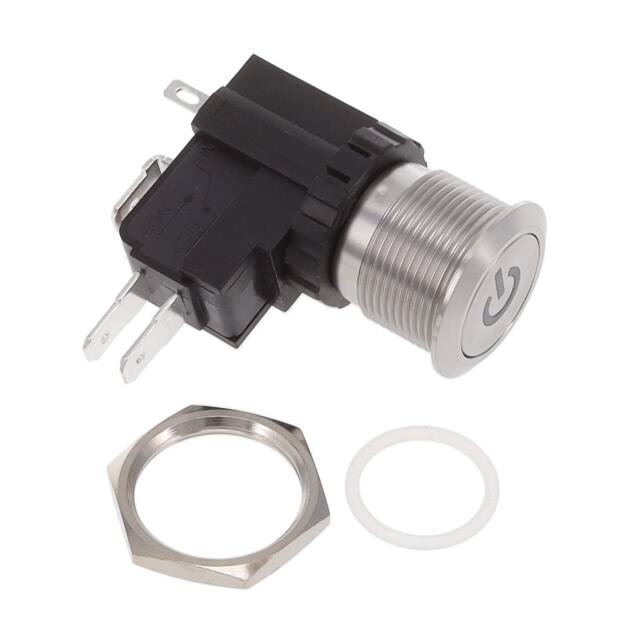

AVH19LSFPA121604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE1A121604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFPB241604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE1B121604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFPA241604SWITCH PUSHBUTTON SPDT 16A 125V |
20 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE1A241604SWITCH PUSHBUTTON SPDT 16A 125V |
17 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE1B241604SWITCH PUSHBUTTON SPDT 16A 125V |
9 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFE1A121604SWITCH PUSHBUTTON SPDT 16A 125V |
17 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFE1B121604SWITCH PUSHBUTTON SPDT 16A 125V |
9 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFPA241604SWITCH PUSHBUTTON SPDT 16A 125V |
87 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
