Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH19LSFE1A241604SWITCH PUSHBUTTON SPDT 16A 125V |
84 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFPB121604SWITCH PUSHBUTTON SPDT 16A 125V |
0 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFP7242604SWITCH PUSHBUTTON SPDT 26A 125V |
88 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AH1LGBRGNSWITCH PB DPST-NO/NC 1A 125V |
15 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
D16EES12MREDSWITCH PUSHBUTTON DPDT 8A 125V |
19 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Red | Incandescent, Red | 6 VAC/DC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
YB15RKW01-2CF12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
12 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB16WKG01-5C-JCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
12 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
PV4F23011-314SWITCH PUSHBUTTON SPDT 2A 24V |
50 |
|
Datasheet |
PV4, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV4F23011-345SWITCH PUSHBUTTON SPDT 2A 24V |
33 |
|
Datasheet |
PV4, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
AH1NBGG12SWITCH PB DPST-NO/NC 1A 125V |
20 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBUBNSWITCH PB DPST-NO/NC 1A 125V |
20 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBRR12SWITCH PB DPST-NO/NC 1A 125V |
19 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

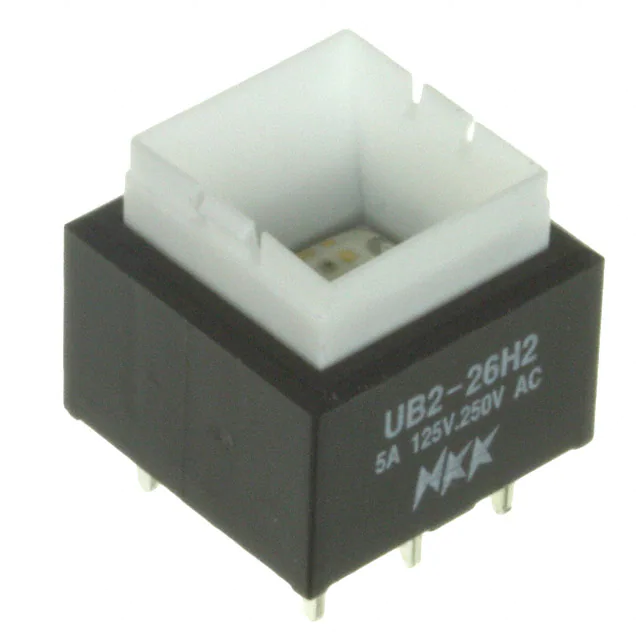

UB226SKW036CFSWITCH PUSHBUTTON DPDT 5A 125V |
16 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
82-6153.2122SWITCH PUSHBUTTON SPDT 200MA 24V |
16 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 6 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
LB15SKG01-5C05-JCSWITCH PUSH SPDT 0.4VA 28V |
47 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15SKG01-5F05-JFSTD SIZE PUSHBUTTON/ILLUMINATED/ |
39 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
DHU251LGUBNBSWITCH PB SPDT 16A 125V |
15 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -40°C ~ 85°C |
|
|
LAKEEV11JGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
99 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-3K1-M03SWITCH PB DPST-NO/NC 2A 48V |
38 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green/Orange | 1.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
PV4F2G0SS-304SWITCH PB DPDT 2A 24V |
33 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
