Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV4F2Y0SSSWITCH PUSHBUTTON DPST 2A 24V |
28 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
1203MRASWITCH PUSH SPST-NO 8A 125V |
34 |
|
Datasheet |
1200MR | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger, Metal | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
82-6152.1124.B002SWITCH PB SPDT 3A 240V |
11 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|

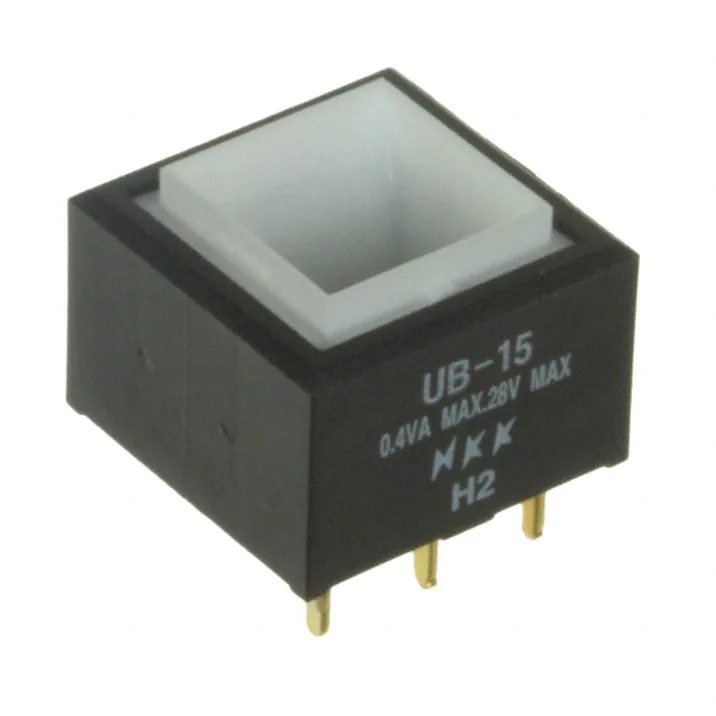

UB15SKG036FSWITCH PUSH SPDT 0.4VA 28V |
5 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
IMR7Z432SWITCH PUSHBUTTON SPDT 3A 28V |
82 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
AH1LBUB12SWITCH PB DPST-NO/NC 1A 125V |
20 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBUBNSWITCH PB DPST-NO/NC 1A 125V |
20 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBRR12SWITCH PB DPST-NO/NC 1A 125V |
19 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
DHU301NGUBNBSWITCH PB SPDT 16A 125V |
25 |
|
Datasheet |
DHU | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
1.15.210.001/0201LUMOSTAST 16 PB NON-ILLUMINABLE |
10 |
|
Datasheet |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
A165-JAA-1SWITCH PUSHBUTTON SPDT 5A 125V |
9 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AVH19LSFE1B242604SWITCH PUSHBUTTON SPDT 26A 125V |
98 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
|
IPR3SAD5L0YSWITCH PUSH SPST-NO 0.5A 48V |
39 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Yellow | LED, Yellow | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
|
LB26CGW01-5F24-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ |
12 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
UB15KKW016FSWITCH PUSHBUTTON SPDT 5A 125V |
8 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

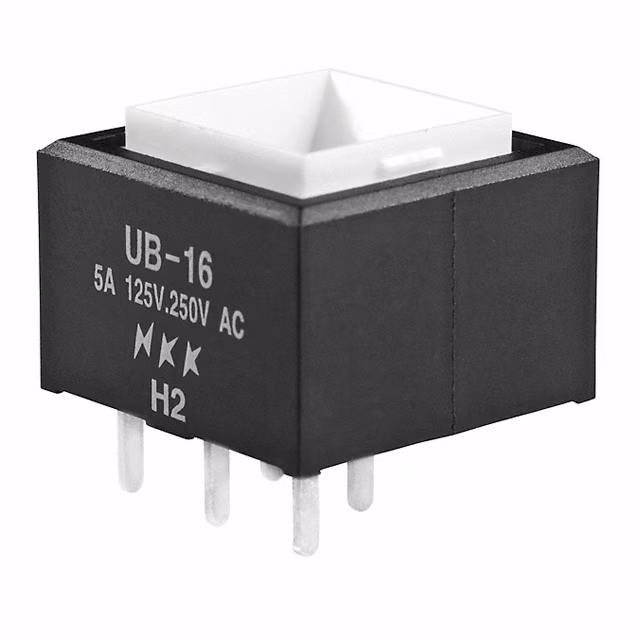

UB16SKW036FSWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
SW-PB7-06B22FFHIGH CURRENT ANTI-VANDAL PUSHBUT |
40 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 55°C |
|
A3U-TBK-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
15 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Black Filter/Diffuser) | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
AV2520000T5Q04SWITCH PUSHBUTTON DPDT 3A 250V |
9 |
|
Datasheet |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
YB15NKG01-5F24-JBSHORT BODY PUSHBUTTON/ILLUMINATE |
12 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
