Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB226SKG036CFSWITCH PUSH DPDT 0.4VA 28V |
5 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
YB16WRKG01-5C-JCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
11 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
AVH25MSSFE7121604SWITCH PUSHBUTTON SPDT 16A 125V |
19 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|

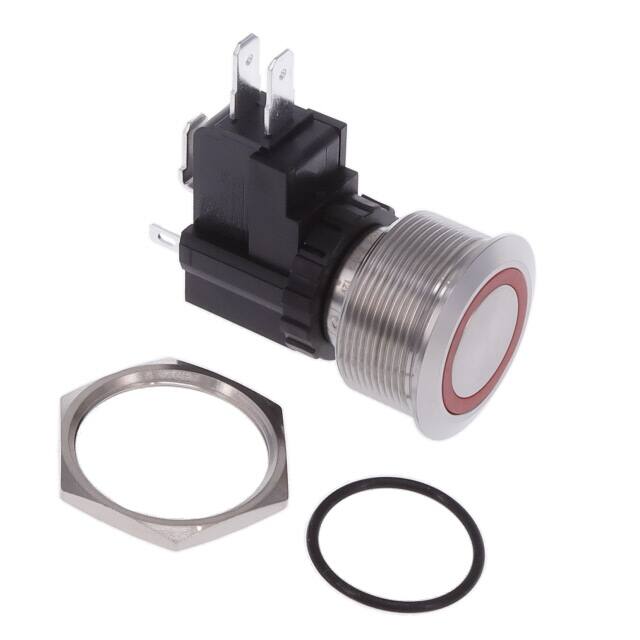

AVH25LSSFE3121604SWITCH PUSHBUTTON SPDT 16A 125V |
18 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFE6121604SWITCH PUSHBUTTON SPDT 16A 125V |
18 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25LSSFE5241604SWITCH PUSHBUTTON SPDT 16A 125V |
17 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFE6241604SWITCH PUSHBUTTON SPDT 16A 125V |
17 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25LSSFE6121604SWITCH PUSHBUTTON SPDT 16A 125V |
97 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25LSSFE7241604SWITCH PUSHBUTTON SPDT 16A 125V |
16 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFE3121604SWITCH PUSHBUTTON SPDT 16A 125V |
17 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFE7241604SWITCH PUSHBUTTON SPDT 16A 125V |
9 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFE3241604SWITCH PUSHBUTTON SPDT 16A 125V |
8 |
|
Datasheet |
AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25LSSFE7121604SWITCH PUSHBUTTON SPDT 16A 125V |
40 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
|
YB15WCKG01-5F-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
18 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

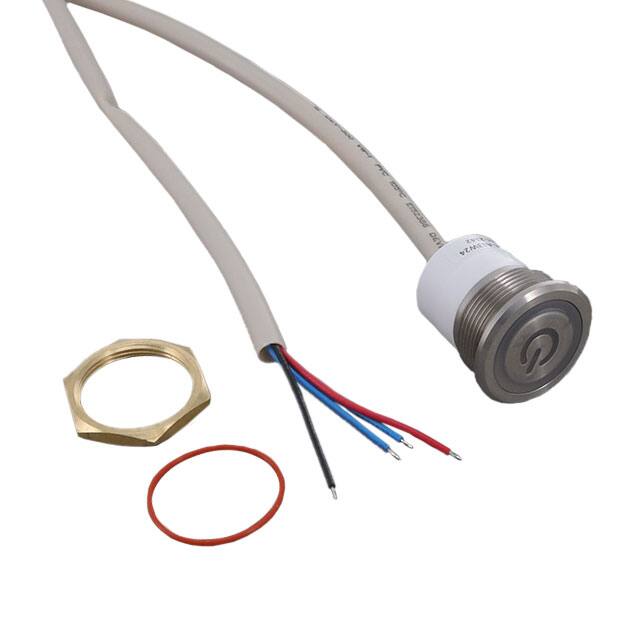

W58M-A13W24PBS 22MM SPST 0.1A 48V MOM METAL |
7 |
|
Datasheet |
W58M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button, Flush | - | Silver | LED, White | 3.2 VDC | Wire Leads | - | - | - | - |
|
1977740-4SWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet |
Blue | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
AVH25MSSFE5241604SWITCH PUSHBUTTON SPDT 16A 125V |
49 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
|
DH252LBSRNSWITCH PB 4PST-2NO/2NC 2A 125V |
19 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -25°C ~ 70°C |
.jpg)
|
AV2521M724Q04SWITCH PUSHBUTTON DPDT 3A 250V |
70 |
|
Datasheet |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
PLP1624SQ3DE6LOCK, SQUARE, IP65, ILLUMINATE P |
24 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 1A (DC) | 250 V | 30 V | Square, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
