Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BH16NGBBBSWITCH PB SPST 1A 125V |
40 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Black | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
1241.2806.164SWITCH PUSH SPST-NO 125MA 48V |
100 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -20°C ~ 60°C |
|
LP0115CMKW015CASWITCH PUSHBUTTON SPDT 3A 125V |
18 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | LED, Red | 2.05 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
|
|
FHNBBBRGNSWITCH PB SPST 2A 48V |
31 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
WSA48-1-RB-N-BK-BPBS 12MM SPDT 5A 28V UL61058 MOM |
42 |
|
Datasheet |
WSA48 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Round, Button, Domed | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.58mm Dia | -40°C ~ 85°C |
|
A22NN-BNA-NRA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
21 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

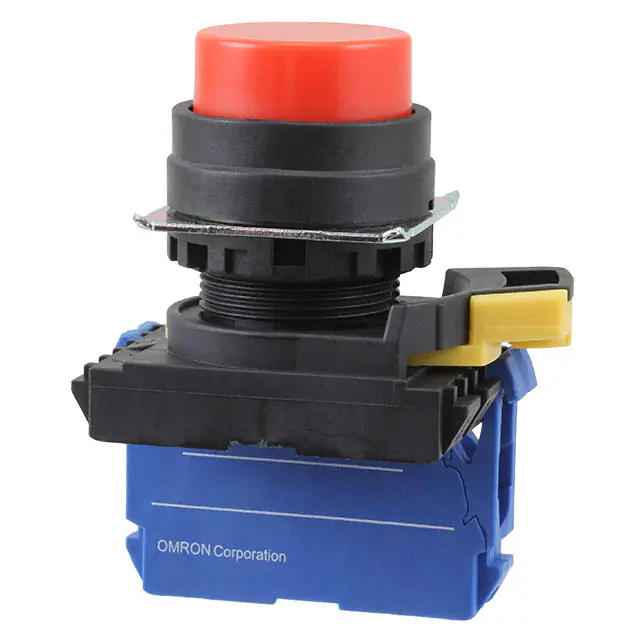

A22NN-BPA-NRA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
14 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
HB15SKW01-ASWITCH PUSH SPDT 0.1A 30V |
52 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
HB16SKW01-ASWITCH PUSH SPDT 0.1A 30V |
14 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
8225SHZBESWITCH PUSH DPDT 0.4VA 20V |
15 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

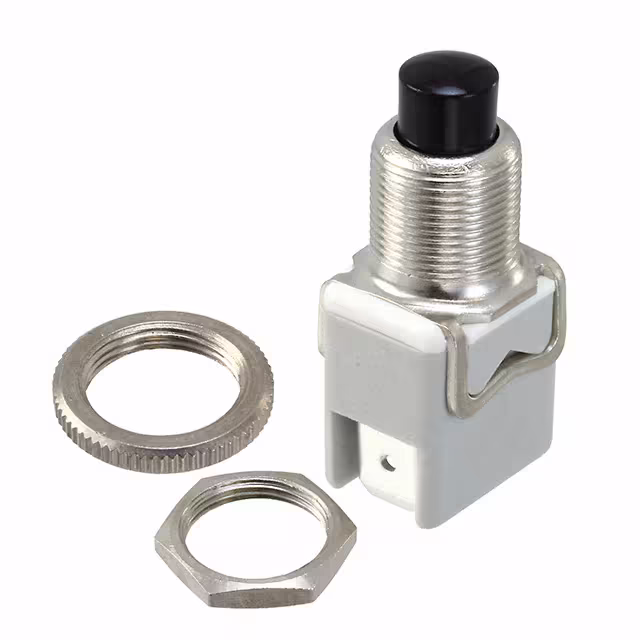

1232A2SWITCH PUSH SPST-NC 8A 125V |
78 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
UB216SKG03N-4JBSWITCH PUSH SPDT 0.4VA 28V |
19 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
LB26SKW01-5D-JDSWITCH PUSHBUTTON DPDT 3A 125V |
6 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

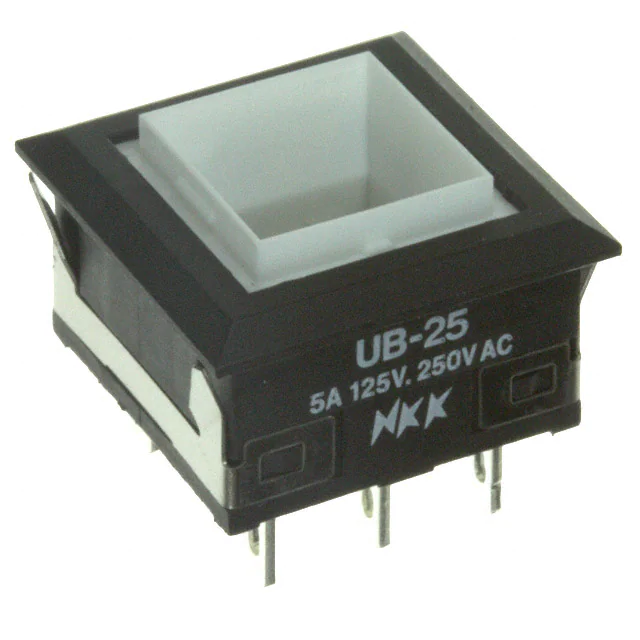

UB25KKW01NSWITCH PUSHBUTTON DPDT 5A 125V |
11 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

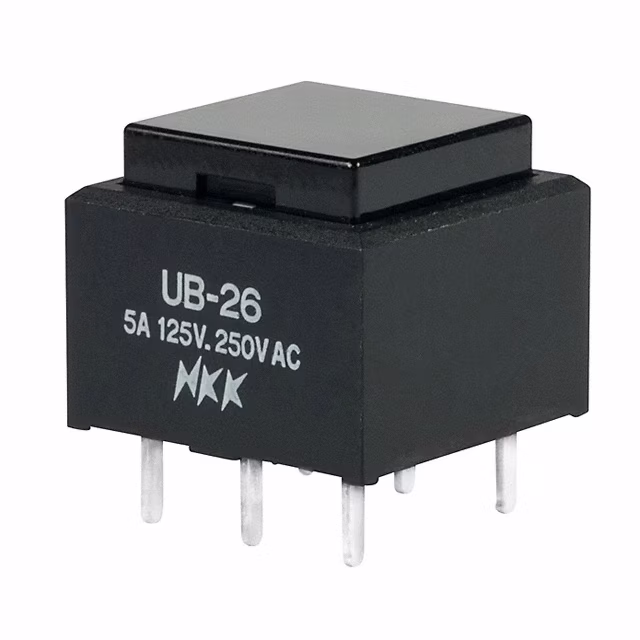

UB26SKW03N-ASWITCH PUSHBUTTON DPDT 5A 125V |
9 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
U811SHZGESWITCH PUSHBUTTON SPDT 1A 120V |
8 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
UB15SKG035C-JJSWITCH PUSH SPDT 0.4VA 28V |
37 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKG035F-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
35 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
W76-599008SWITCH PUSHBUTTON 100MA 50V |
92 |
|
Datasheet |
W76-94 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 100mA (DC) | - | 50 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 18.80mm Dia | -55°C ~ 105°C |
|
TP21LTCGESWITCH PUSH DPST-NO 1A 120V |
43 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
