Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP0215ASAKG03RGBP-1SJB3.5MM STROKE SPST OFF-(ON) TACTI |
45 |
|
Datasheet |
KP | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
EB2085SWITCH PUSHBUTTON DPDT 3A 125V |
88 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

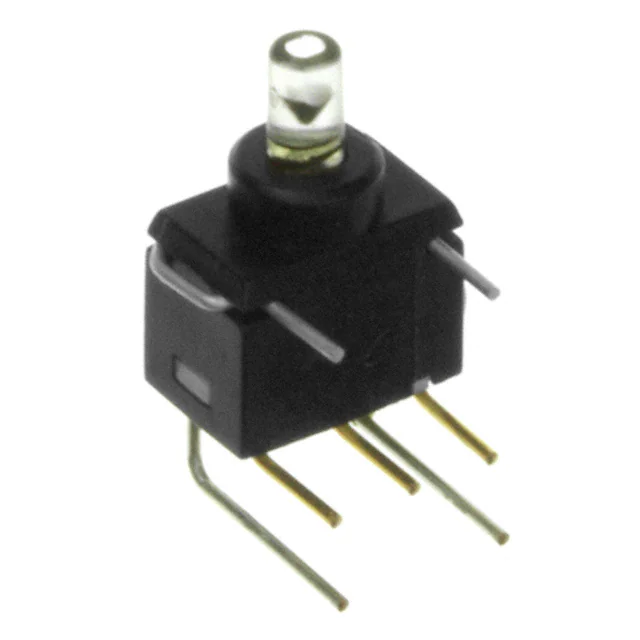

GB15JHFSWITCH PUSH SPDT 0.4VA 28V |
85 |
|
Datasheet |
GB | Box | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
9095SWITCH P-P MOM NO 2POS |
31 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 20A (DC) | - | 24 V | Round, Plunger, Metal | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
8R2021-N-ZSWITCH PUSHBUTTON DPDT 3A 125V |
49 |
|
Datasheet |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|
PV3H2B0NNSWITCH PUSHBUTTON SPDT 2A 48V |
31 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

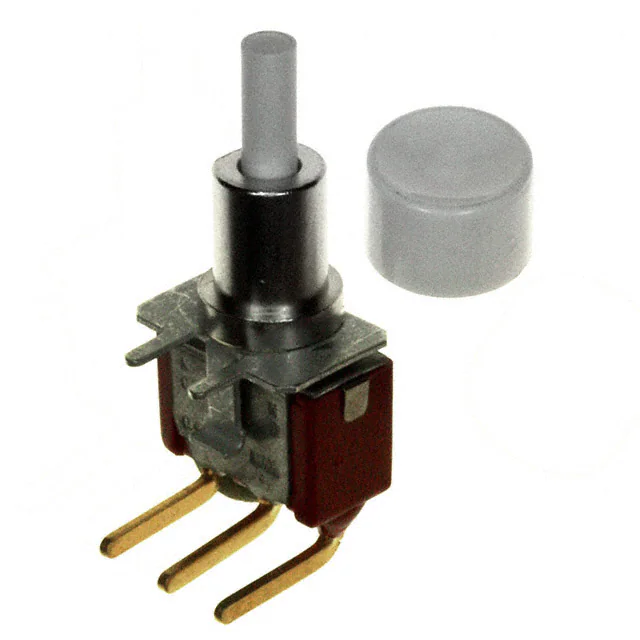

8168SH9ABE1SWITCH PUSH SPDT 0.4VA 20V |
85 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
EB2011G-B-J23AFESWITCH PUSHBUTTON SPDT 0.4VA 28V |
96 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green/Yellow | 2.1, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|

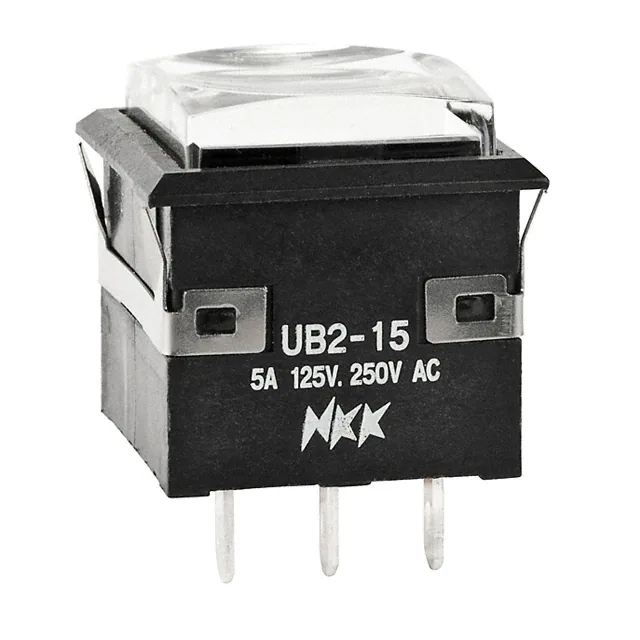

UB215KKW01N-4JASWITCH PUSHBUTTON SPDT 5A 125V |
19 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Black Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
4001ULSWITCH PUSH SPST-NO 3A 115V |
13 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
|
ULV4F23SS311SWITCH PUSHBUTTON SPDT 3A 125V |
66 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
SW-PB7-01B32BFMANTI-VANDAL PUSHBUTTON SWITCH, 1 |
16 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 500mA (AC) | 220 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.50mm Dia | -25°C ~ 55°C |
|
ELUMOATHQ2C22SWITCH PUSH SPDT 0.25A 50V |
86 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|

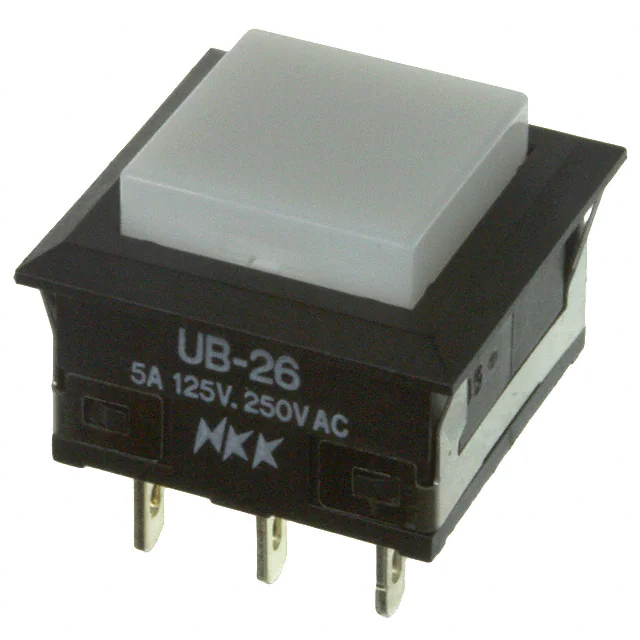

UB26KKW01N-BSWITCH PUSHBUTTON DPDT 5A 125V |
26 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
PVA6RE24113VSWITCH PUSHBUTTON SPST 2A 36V |
61 |
|
Datasheet |
PVA6 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (AC) | - | 36 V | Round, Button | - | Black | LED, Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
ELUMEETHQ6C12SWITCH PUSH SPDT 0.25A 50V |
87 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
|
PV0H240SS-321SWITCH PB SPST-NO 2A 36V |
35 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | LED, Orange | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
8161SH9V3BE2SWITCH PUSH SPDT 0.4VA 20V |
72 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
|
UB215KKG01N-4JBSWITCH PUSH SPDT 0.4VA 28V |
18 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|

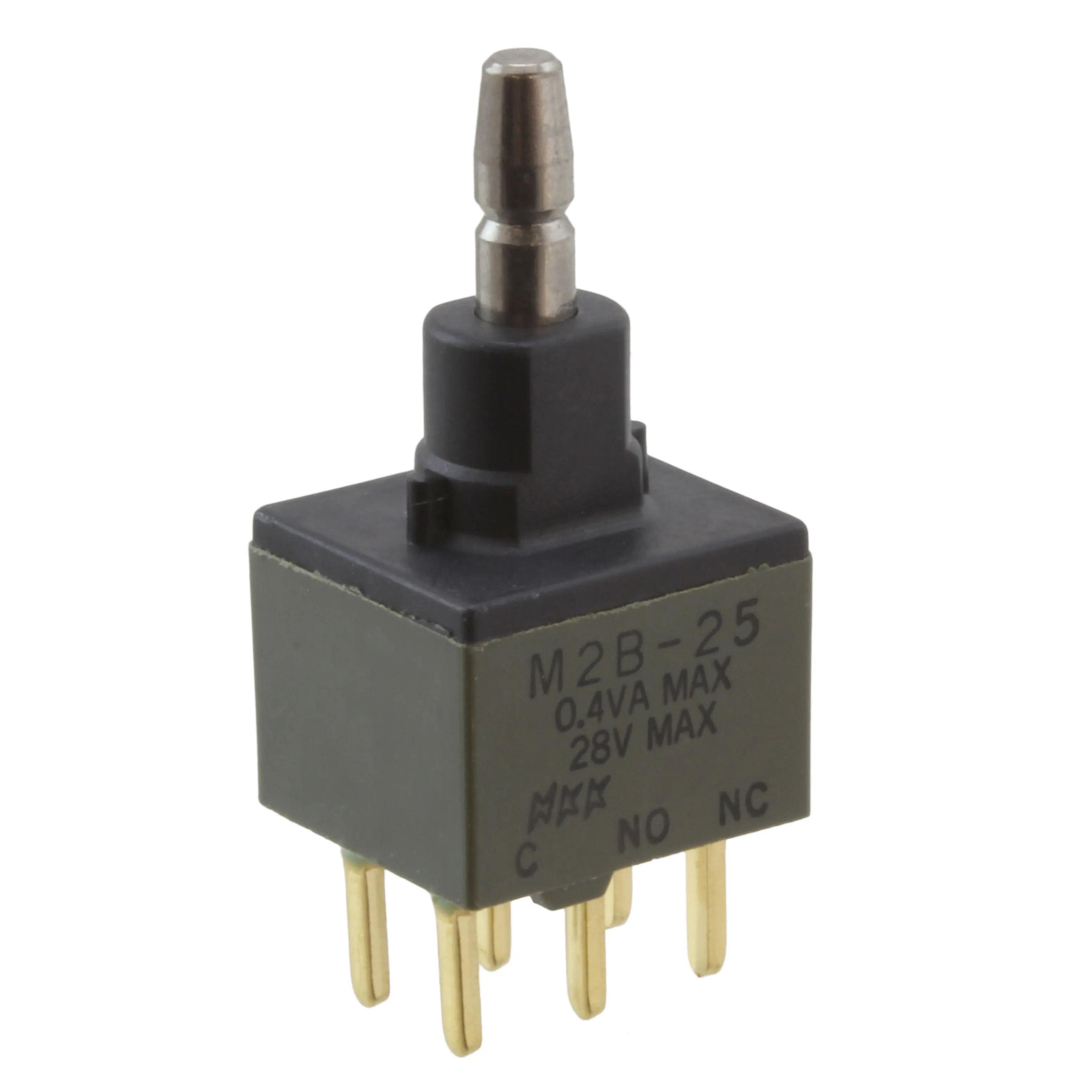

M2B25BA5G03SWITCH PUSHBUTTON DPDT 0.4VA 28V |
49 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
