Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

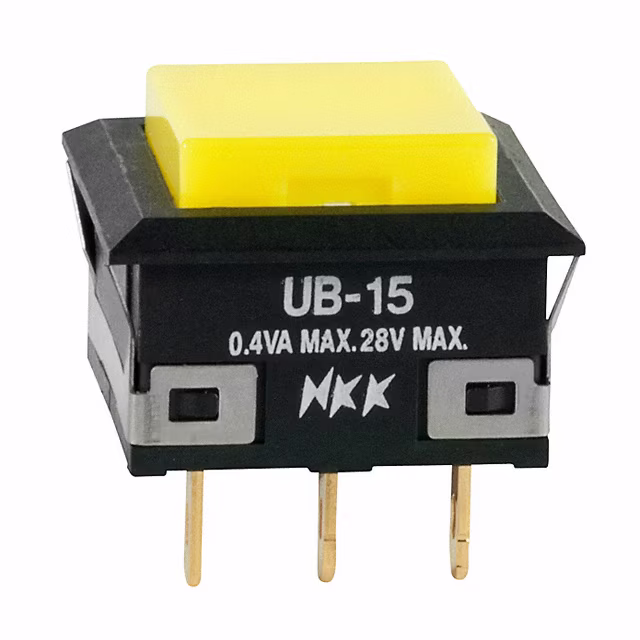

UB15KKG01N-ESWITCH PUSH SPDT 0.4VA 28V |
31 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Yellow | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

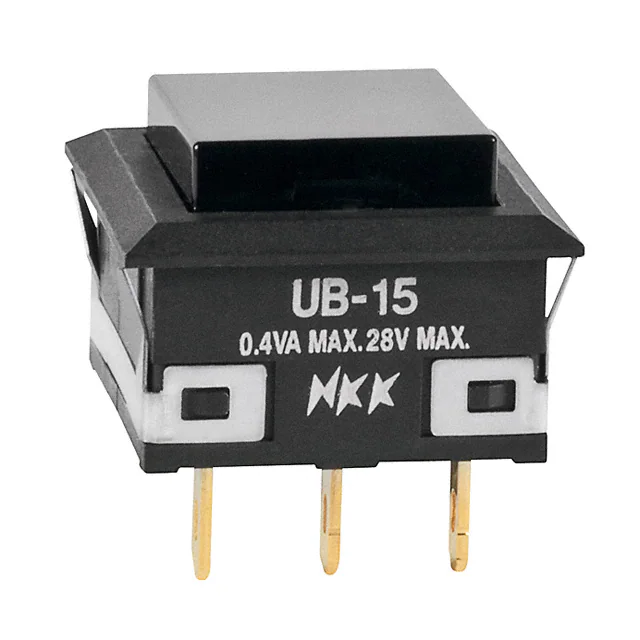

UB15KKG01N-ASWITCH PUSH SPDT 0.4VA 28V |
29 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
4002SWITCH PUSH SPST-NC 1A 115V |
26 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|

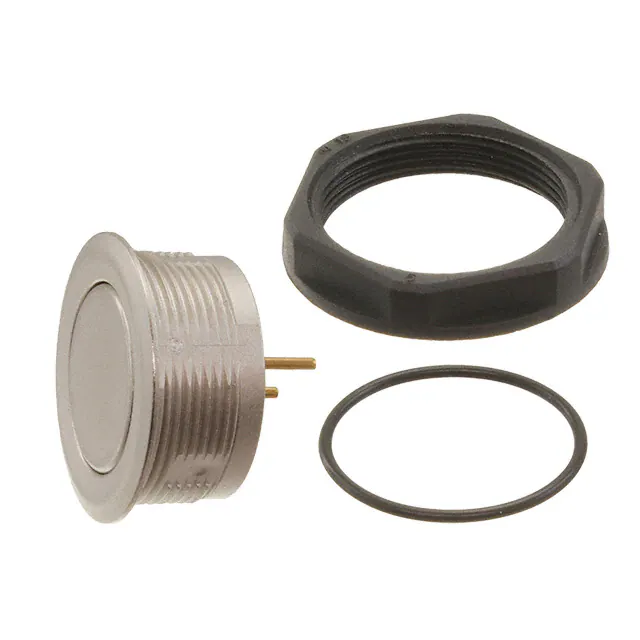

1241.2810SWITCH PUSH SPST-NO 80MA 24V |
50 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -20°C ~ 60°C |
|
0041.9146.5127SWITCH PUSH SPST-NO 200MA 60V |
88 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
|
UB16NBKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
17 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB15KKG015C-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
30 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
PV6F24011-331SWITCH PB SPST-NO 2A 48V |
78 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
UB25SKG03N-FLOW PROFILE PUSHBUTTON/NON ILLUM |
14 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Spot LED | - | -25°C ~ 70°C |
|
|
UB15NKG01N-BSWITCH PUSH SPDT 0.4VA 28V |
37 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | Plunger Seal | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB15NKG01N-CLOW PROFILE PUSHBUTTON/NON ILLUM |
24 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | Plunger Seal | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
9001SWITCH MOM NC |
14 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Standard | SPST-NC | On-Mom | 5A (DC) | - | 12 V | Round, Plunger | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
8125SYCBESWITCH PUSH SPDT 0.4VA 20V |
79 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
LB22F2HQ6514SWITCH PB DPDT 3A 250V |
98 |
|
Datasheet |
LB22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
UB16SKG03N-GSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

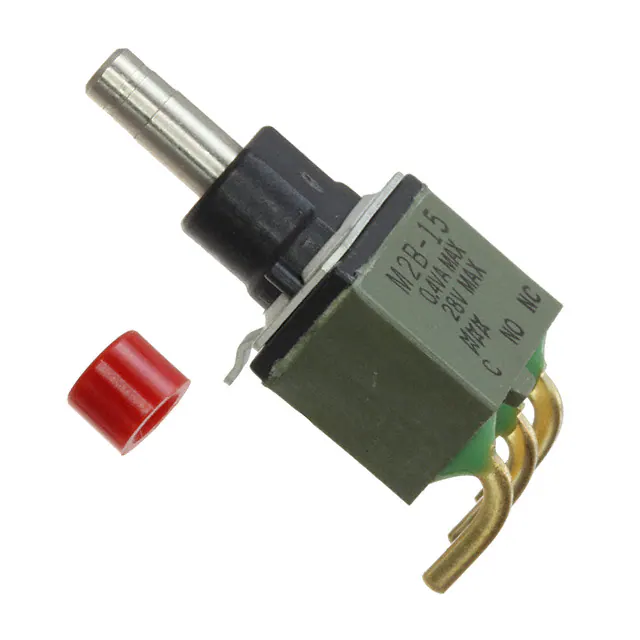

M2B15AA5G30-FCSWITCH PUSH SPDT 0.4VA 28V |
95 |
|
Datasheet |
M2 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
8125SD8AV2BESWITCH PUSH SPDT 0.4VA 20V |
71 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
UB215SKG03N-4JBSWITCH PUSH SPDT 0.4VA 28V |
66 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKG03N-3JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
PV0H240SS-211SWITCH PUSHBUTTON SPST-NO 2A 48V |
77 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
