Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV1610R112R04SWITCH PUSHBUTTON SPDT 2A |
97 |
|
Datasheet |
AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
EB2011-A-J21ASWITCH PUSHBUTTON SPDT 3A 125V |
68 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
UB26SKW035C-JBSWITCH PUSHBUTTON DPDT 5A 125V |
28 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
UB15KKW015C-JBSWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB15KKW015F-JFSWITCH PUSHBUTTON SPDT 5A 125V |
74 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
PV6H24011-351SWITCH PUSHBUTTON SPST 2A 48V |
27 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | LED, Yellow | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
UB15KKW015C-CJLOW PROFILE PUSHBUTTON/ILLUMINAT |
9 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
A3AA-91L1-00LSWITCH PUSH SPST-NO 6A 125V |
9 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Gray, Light | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|
|
A3AT-91L1-00HSWITCH PUSH SPST-NO 6A 125V |
7 |
|
Datasheet |
A3A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Gray | - | - | PC Pin | IP00 | - | - | -10°C ~ 55°C |
|

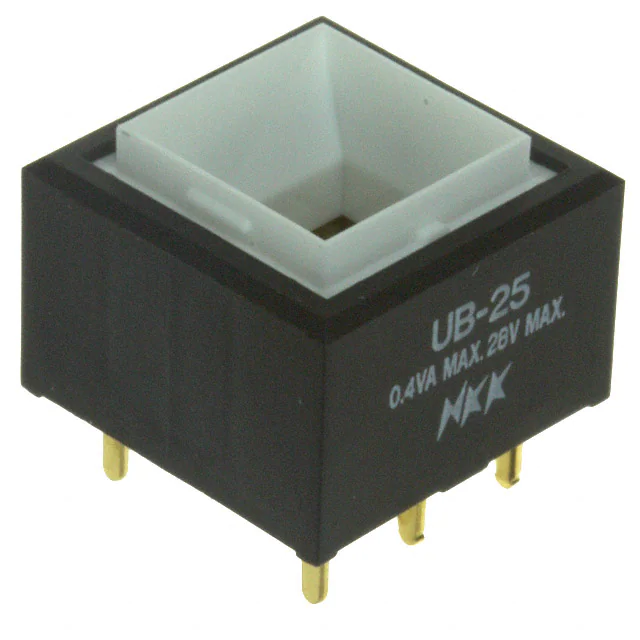

UB25SKG03NSWITCH PUSH DPDT 0.4VA 28V |
20 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Spot LED | - | -20°C ~ 70°C |
|
PV3H2H0NN-234SWITCH PUSHBUTTON DPDT 2A 48V |
39 |
|
Datasheet |
PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
UB15KKW015C-JCSWITCH PUSHBUTTON SPDT 5A 125V |
62 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15SKW035C-JCSWITCH PUSHBUTTON SPDT 5A 125V |
24 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKW035C-JBSWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKW035D-JBSWITCH PUSHBUTTON SPDT 5A 125V |
37 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
W50-A-RBK-N-BK-BPBS 16MM SPST 0.1A 48V MOM PLAST |
82 |
|
Datasheet |
W50 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.15mm Dia | -40°C ~ 85°C |
|
913DSSWITCH PUSH SPDT-MBB 0.25A 125V |
90 |
|
Datasheet |
913 | Bulk | Active | Panel Mount, Front | Standard | SPDT (MBB) | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
1233A2NFSWITCH PUSH SPST-NO 8A 125V |
54 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
UB15SKW035C-CCSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
HB16CKW01-GSWITCH PUSH SPDT 0.1A 30V |
16 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
