Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

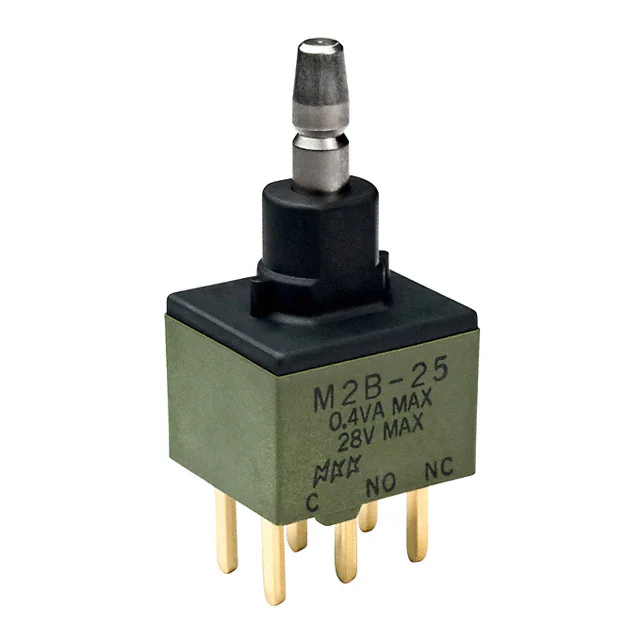

M2B25AA5G03SWITCH PUSH DPDT 0.4VA 28V |
11 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

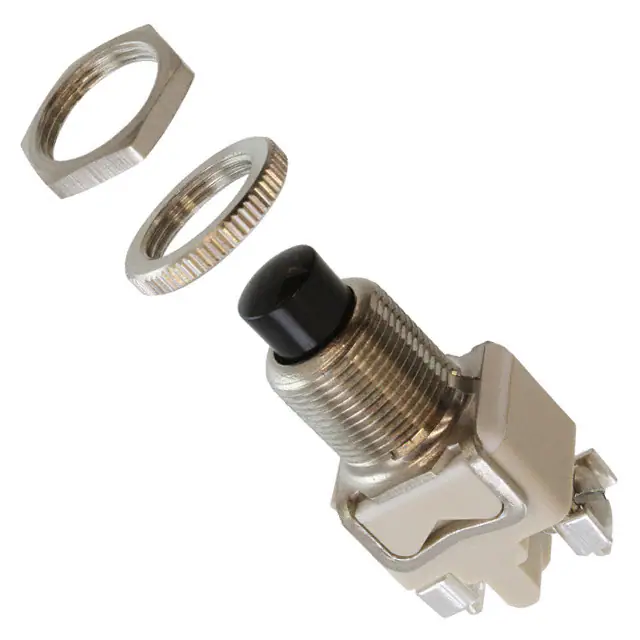

1202A2SWITCH PUSH SPST-NC 8A 125V |
51 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
HB15CKW01SWITCH PUSH SPDT 0.1A 30V |
21 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
UB16KKG01N-ASWITCH PUSH SPDT 0.4VA 28V |
19 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
HB16CKW01SWITCH PUSH SPDT 0.1A 30V |
22 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
EB2011P-B-J21ASWITCH PUSHBUTTON SPDT 3A 125V |
16 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
UB25RKW03NSWITCH PUSHBUTTON DPDT 5A 125V |
57 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Spot LED | - | -20°C ~ 70°C |
|
18535CDSWITCH PUSH SPDT 0.1A 30V |
58 |
|
Datasheet |
18000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
8534TZQE2SWITCH PUSH SPST-NC 1A 120V |
29 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

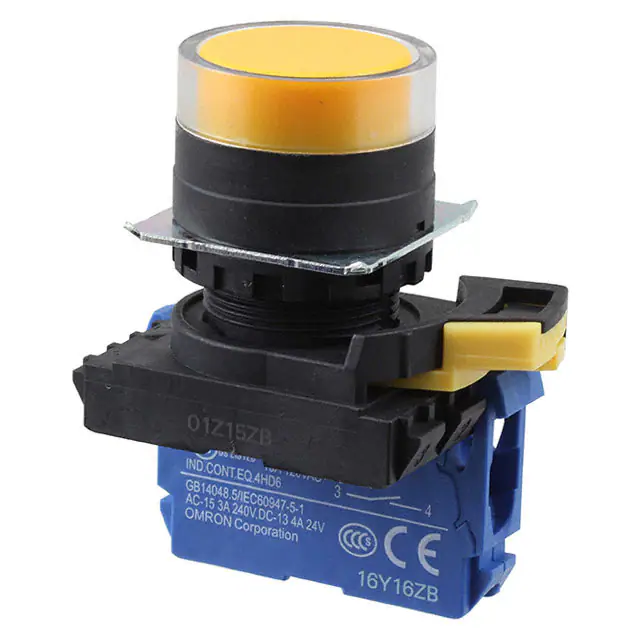

A22NN-BGA-NYA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
27 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
BH16NGSBRGSWITCH PB SPST 1A 125V |
14 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
EH12NLB2BBSWITCH PB SPST-NO 2A 48V |
93 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
BH16NGSBBSWITCH PB SPST 1A 125V |
28 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
EH12NLB2BGSWITCH PB SPST-NO 2A 48V |
13 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
UB16NKG01N-ALOW PROFILE PUSHBUTTON/NON ILLUM |
42 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
38BM-4-H-3-SSWITCH PUSH SPST-NO 0.4VA 20V |
20 |
|
Datasheet |
38BM | Bulk | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | Sealed - Fully | - | -30°C ~ 85°C |
|
PV6H240SS-3G1SWITCH PB SPST-NO 2A 48V |
44 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, Green/Red | 1.8, 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

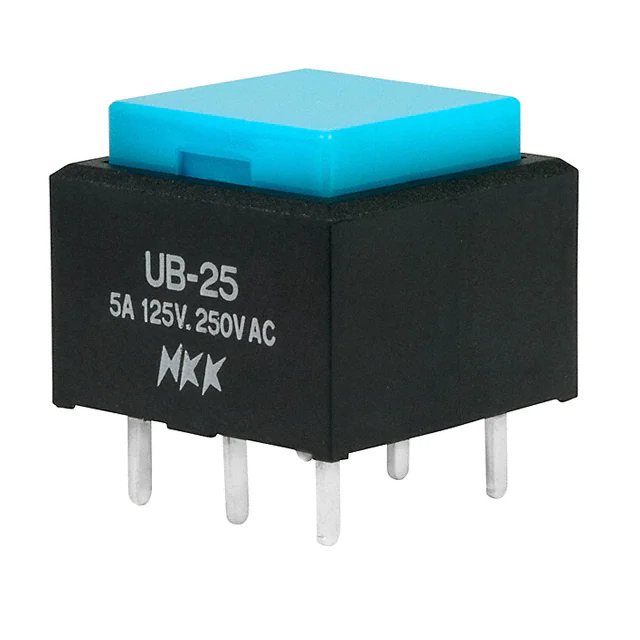

UB25SKW03N-GSWITCH PUSHBUTTON DPDT 5A 125V |
47 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
EB2011-A-J20SWITCH PUSHBUTTON SPDT 3A 125V |
18 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
FHLBSBRNSWITCH PB SPST 2A 48V |
47 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
