Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP8E2D203QESWITCH PUSHBUTTON SPDT 5A 28V |
1,293 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
AP4D300SZBESWITCH PUSH SPST-NO 0.125A 125V |
152 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
PVA6LRE21211SWITCH PUSHBUTTON SPST 2A 36V |
159 |
|
Datasheet |
PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Clear | LED, Red | 1.7 ~ 2.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PV6HW40SS341SWITCH PB SPST 2A 48V |
155 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PVA6RPW41K1SWITCH PUSHBUTTON SPST 2A 36V |
163 |
|
Datasheet |
PVA6 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Green/Orange | 1.7 ~ 2.5 VDC / 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
MMP0120/ABKPSWITCH PUSHBUTTON SPST-NO 2A 36V |
129 |
|
Datasheet |
MMP0120 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
PVA6LRE21111SWITCH PUSHBUTTON SPST 2A 36V |
123 |
|
Datasheet |
PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Red | 1.7 ~ 2.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
8121SHCGESWITCH PUSHBUTTON SPDT 1A 120V |
1,026 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
ULV4F2B11544SWITCH PUSHBUTTON SPDT 3A 250V |
2,975 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Black | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
9635CDBSWITCH PUSH SPDT 0.1A 30V |
198 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
YB16CKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
212 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
401ZBESWITCH PUSH SPST 0.4VA 20V |
344 |
|
- |
400 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PVA6LRE21141SWITCH PUSHBUTTON SPST 2A 36V |
392 |
|
Datasheet |
PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Blue | 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PVA6RPW4141SWITCH PB SPST 2A 36V |
324 |
|
Datasheet |
PVA6 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Blue | 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
YB15RKW01-FBSWITCH PUSHBUTTON SPDT 3A 125V |
431 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

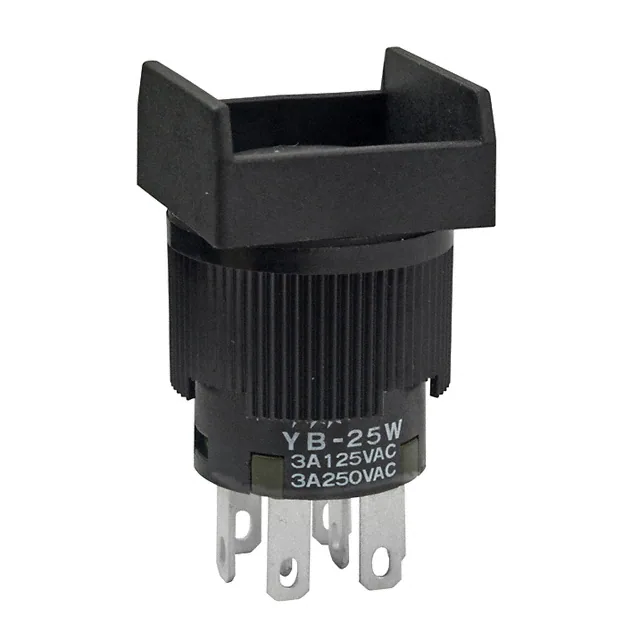

YB25WSKW01SWITCH PUSHBUTTON DPDT 3A 125V |
2,284 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

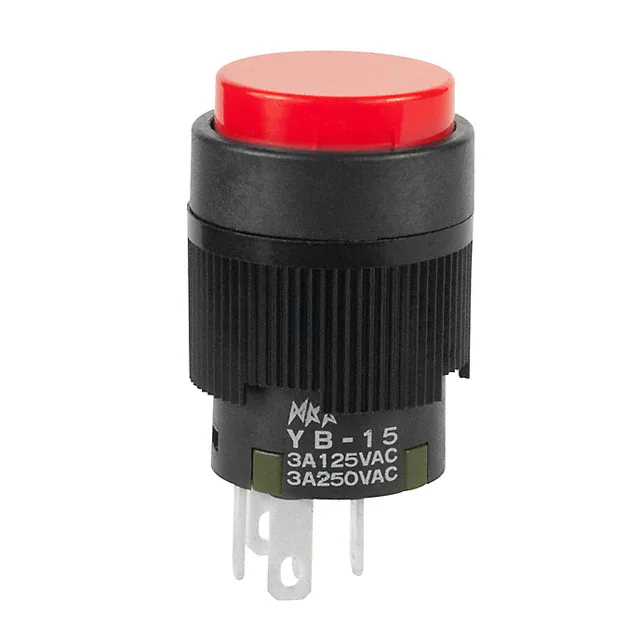

YB15CKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
301 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
YB15RKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
287 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
HB16CKW01-5C-CBSWITCH PUSH SPDT 0.1A 30V |
166 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
HB16CKW01-5F-FBSWITCH PUSH SPDT 0.1A 30V |
114 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
