Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15SKG035C-CCSWITCH PUSH SPDT 0.4VA 28V |
898 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKG035F-JBSWITCH PUSH SPDT 0.4VA 28V |
114 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
KJD17-22413-112SWITCH PB DPST 16A 230V |
219 |
|
Datasheet |
KJD17 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 230 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 46.00mm x 22.00mm | -25°C ~ 55°C |
|
UB15KKW015C-CCSWITCH PUSHBUTTON SPDT 5A 125V |
201 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
40-3657-00SWITCH PUSHBUTTON SPDT 2A 14V |
287 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
UB15KKW015F-FFSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

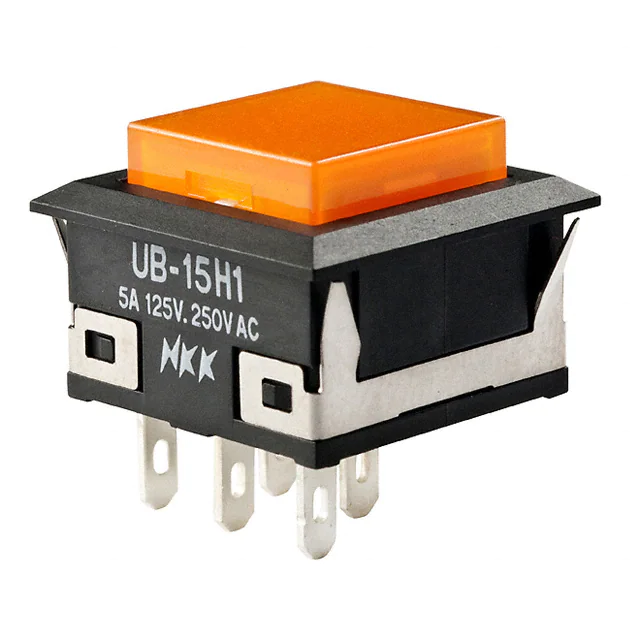

UB15KKW015D-DDSWITCH PUSHBUTTON SPDT 5A 125V |
123 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
39-351 BLKSWITCH PUSH SPST-NO 0.5A 115V |
302 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed - Fully | Circular - 4.37mm Dia | -40°C ~ 85°C |
|

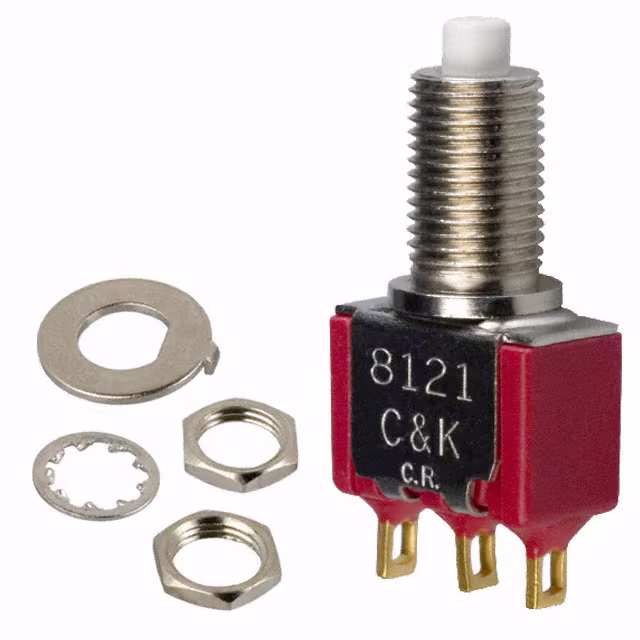

8121LY4ZGESWITCH PUSHBUTTON SPDT 1A 120V |
101 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
MPG 106 FSWITCH PUSHBUTTON 1-POLE ON-MOM |
307 |
|
Datasheet |
MPG | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -45°C ~ 140°C |
|
|
PVA6REW4111SWITCH PB SPST 2A 36V |
171 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, Red | 1.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
MPG106DSWITCH PUSHBUTTON SPDT 6A 125V |
919 |
|
Datasheet |
MPG | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|

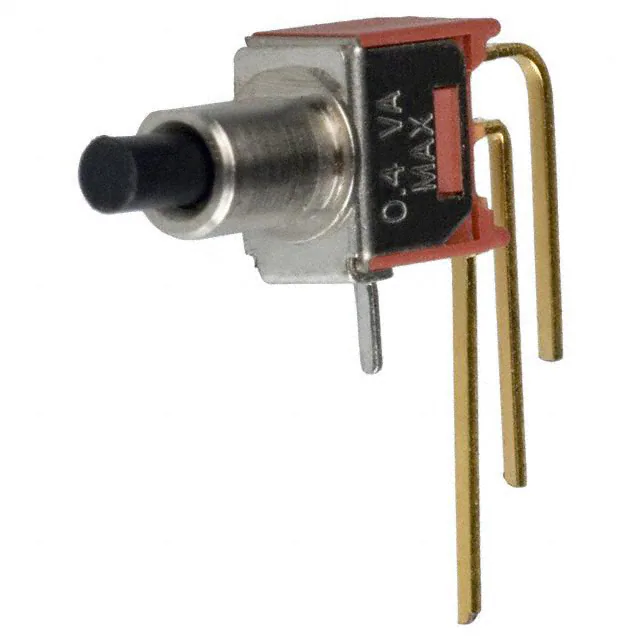

TP12SH9AVBESWITCH PUSH SPDT 0.4VA 20V |
153 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

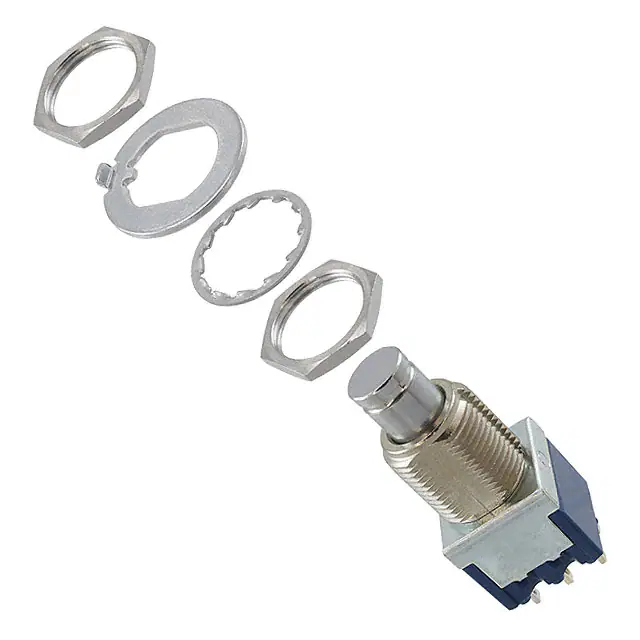

8Y2021-ZSWITCH PUSHBUTTON DPDT 6A 125V |
214 |
|
Datasheet |
8Y | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

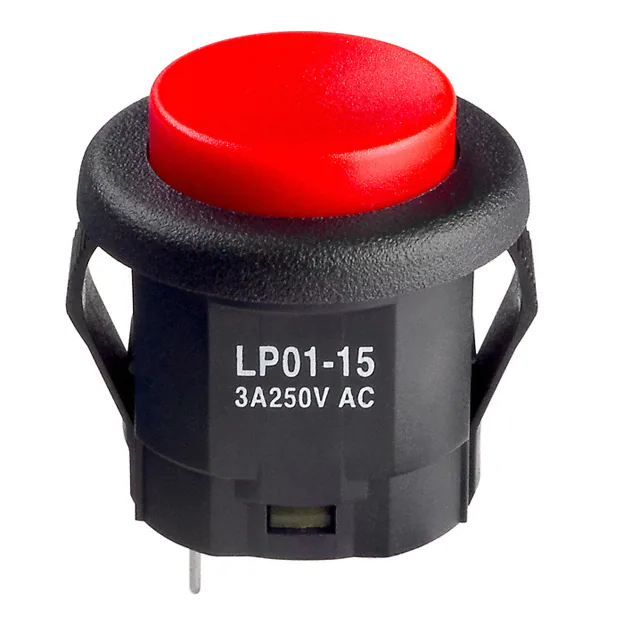

LP0115CMKW01CSWITCH PUSHBUTTON SPDT 3A 125V |
113 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -25°C ~ 70°C |
|
PV6H240SS-311SWITCH PUSH SPST-NO 2A 48V |
157 |
|
Datasheet |
PV6, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
LP0115CCKW01CSWITCH PUSHBUTTON SPDT 3A 125V |
246 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

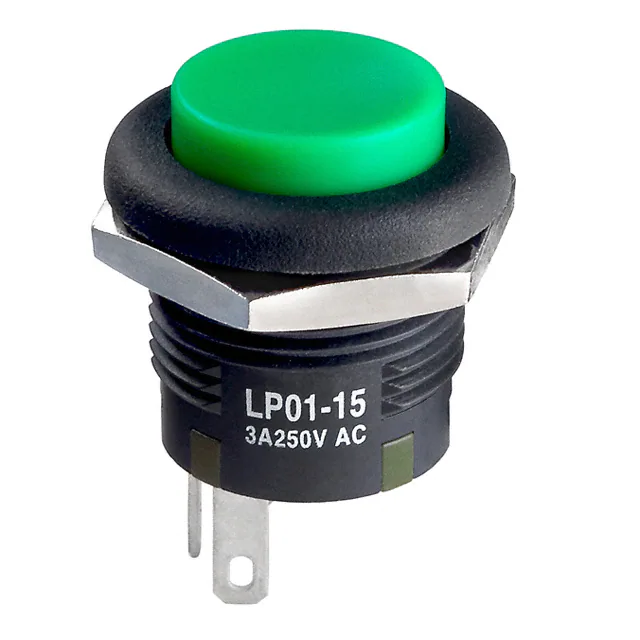

LP0115CCKW01FSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
AV1610P712R04SWITCH PUSHBUTTON SPDT 2A |
161 |
|
Datasheet |
AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
ULV4F2BSLL34L20SWITCH PUSHBUTTON SPDT 3A 125V |
148 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
