Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1187SWITCH PUSHBUTTON SPST-NO WHT |
135 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button, Domed | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
ELUMEESAQ6C12SWITCH PUSH SPDT 0.25A 50V |
220 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
UB15SKG035D-DDSWITCH PUSH SPDT 0.4VA 28V |
403 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
G3B15AP-S-YASWITCH PUSH SPDT 0.4VA 28V |
323 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

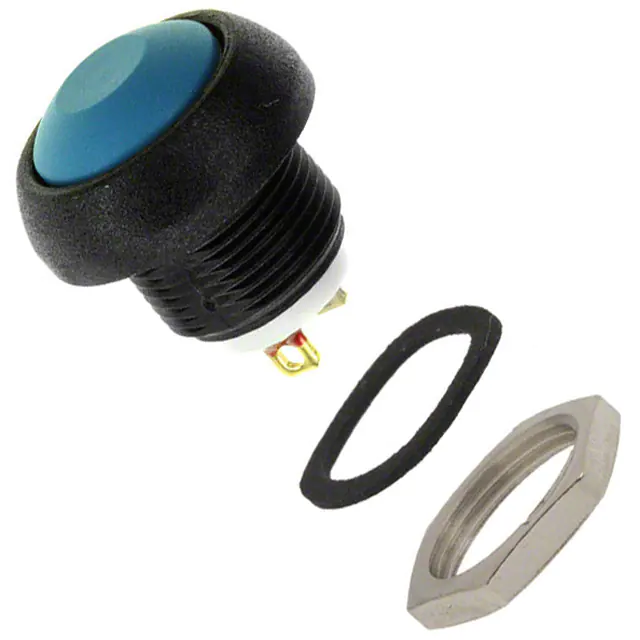

ISR3SAD100SWITCH PUSH SPST-NO 0.4A 32V |
163 |
|
Datasheet |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

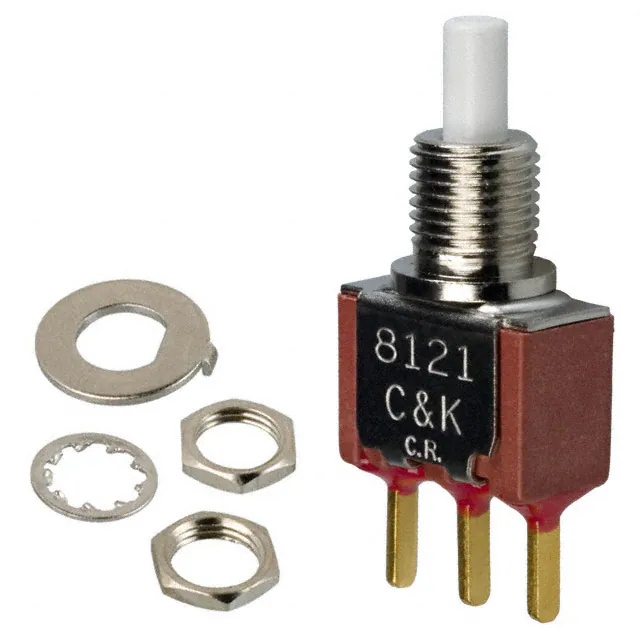

8125SHCBESWITCH PUSH SPDT 0.4VA 20V |
446 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
GB25AV-XCSWITCH PUSH DPDT 0.4VA 28V |
5 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
8532MZQE2SWITCH PUSH SPST-NO 1A 120V |
233 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

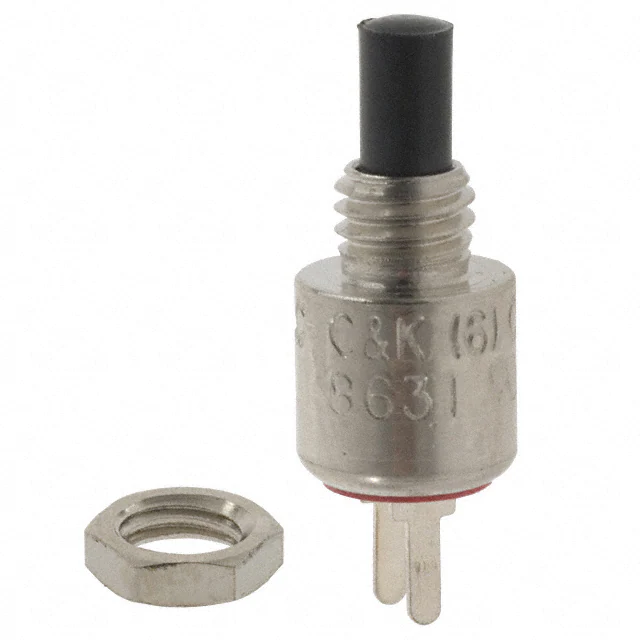

8631CQD2SWITCH PUSH SPST-NO 0.5A 120V |
1,901 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
8125SHZBESWITCH PUSH SPDT 0.4VA 20V |
221 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TP11SH9V3BESWITCH PUSH SPST-NO 0.4VA 20V |
148 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

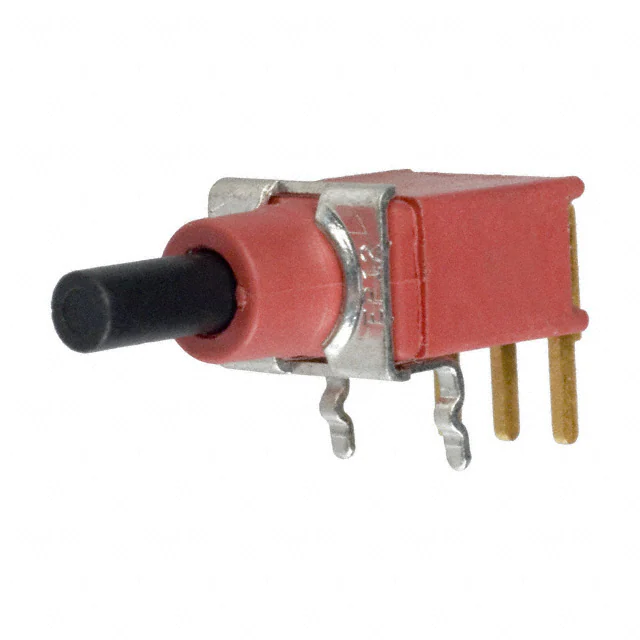

EP12SD1ABESWITCH PUSH SPDT 0.4VA 20V |
885 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PV5S640SSSWITCH PUSH SPST-NO 2A 36V |
659 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
A22NN-BPM-NWA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
375 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | White | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

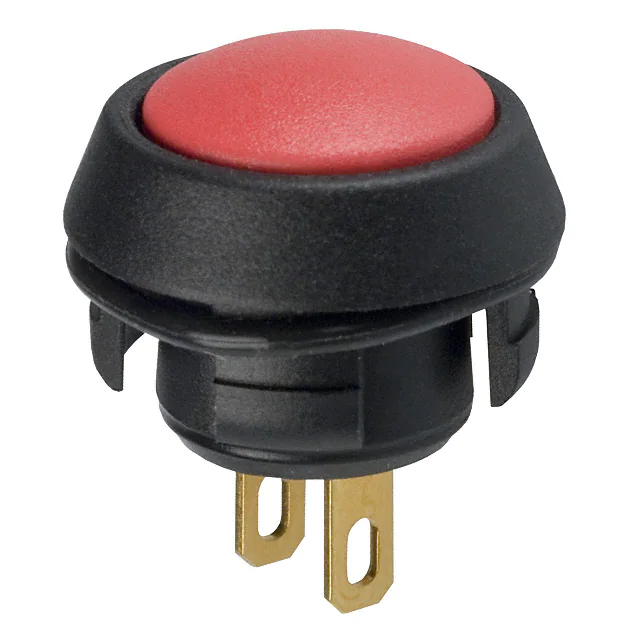

30-101SWITCH PUSH SPST-NO 0.15A 24V |
925 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|

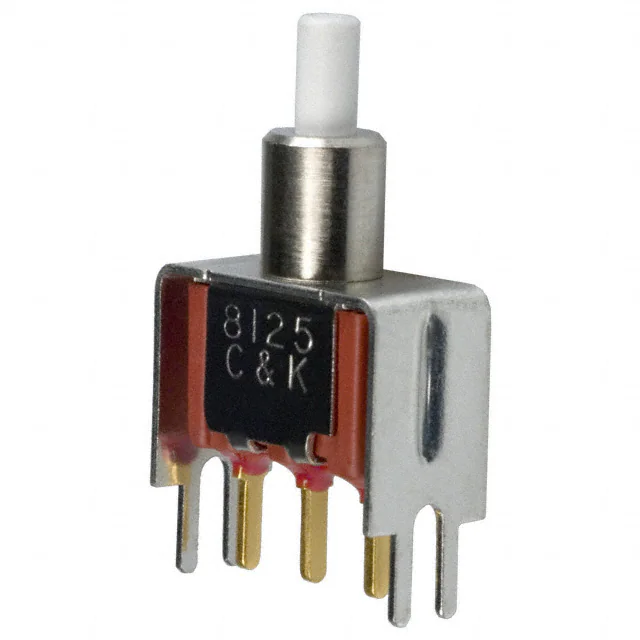

8125SD9V3BESWITCH PUSH SPDT 0.4VA 20V |
185 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
FHNESBWNSWITCH PB SPST 2A 48VDC |
111 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
G3B15AH-R-YASWITCH PUSH SPDT 0.4VA 28V |
803 |
|
Datasheet |
G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

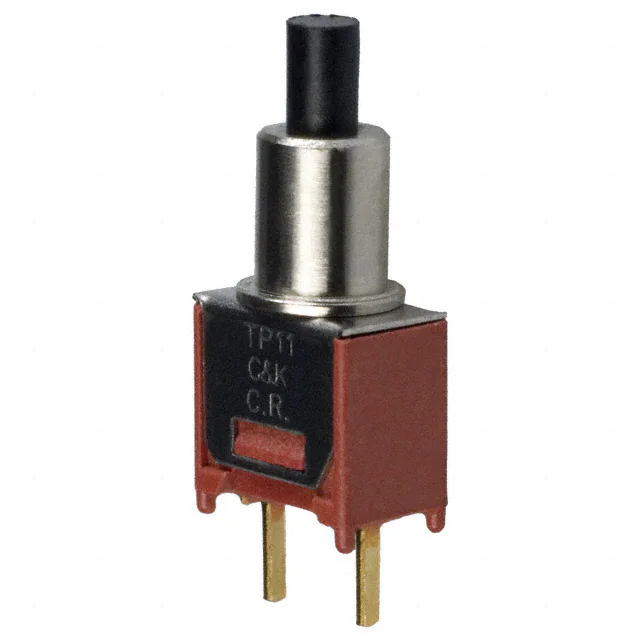

TP11SH9CBESWITCH PUSH SPST-NO 0.4VA 20V |
202 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

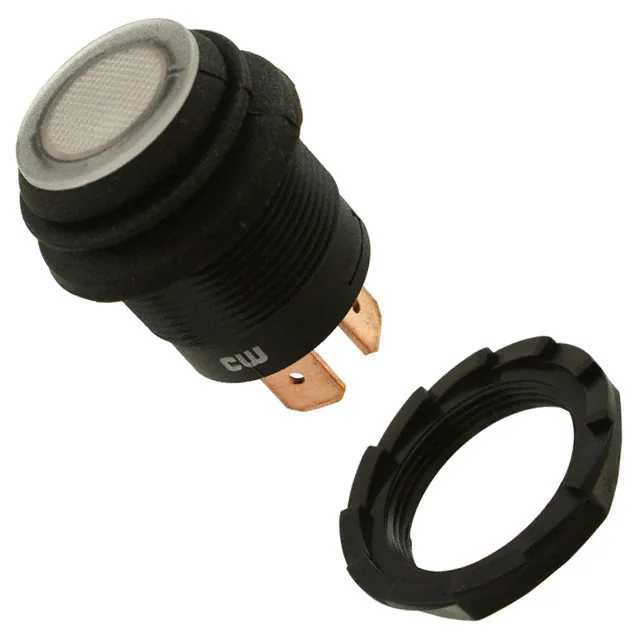

GPB553A2L01BWSWITCH PUSH SPST-NO 10A 14V |
283 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | White | LED, White | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
