Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

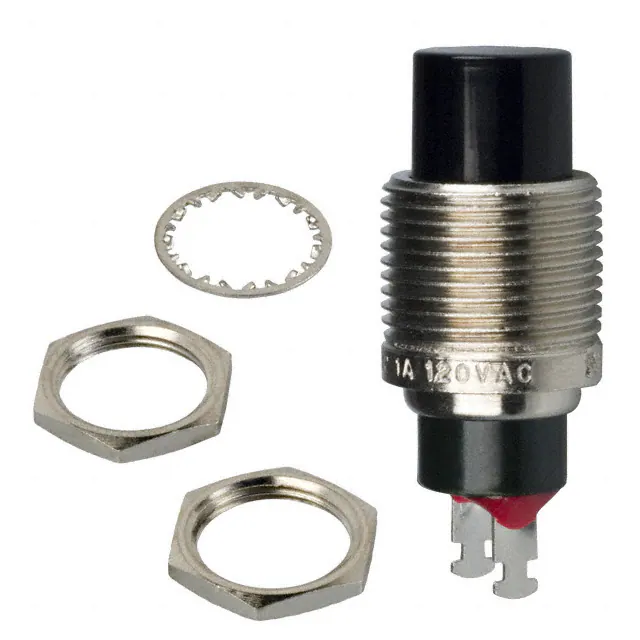

8551TZQE2SWITCH PUSH SPST-NO 3A 120V |
296 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
E125SD1V3BESWITCH PUSH SPDT 0.4VA 20V |
148 |
|
Datasheet |
E020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
PV1F24011SWITCH PUSHBUTTON SPST-NO 2A 48V |
107 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
KJD17-21521-612SWITCH PB DPST 16A 240V |
643 |
|
Datasheet |
KJD17 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 240 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 46.00mm x 22.00mm | -25°C ~ 55°C |
|
8168SHCQE2SWITCH PUSHBUTTON SPDT 6A 120V |
179 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
ELUMEESAQ6C22SWITCH PUSH SPDT 0.25A 50V |
2,381 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|

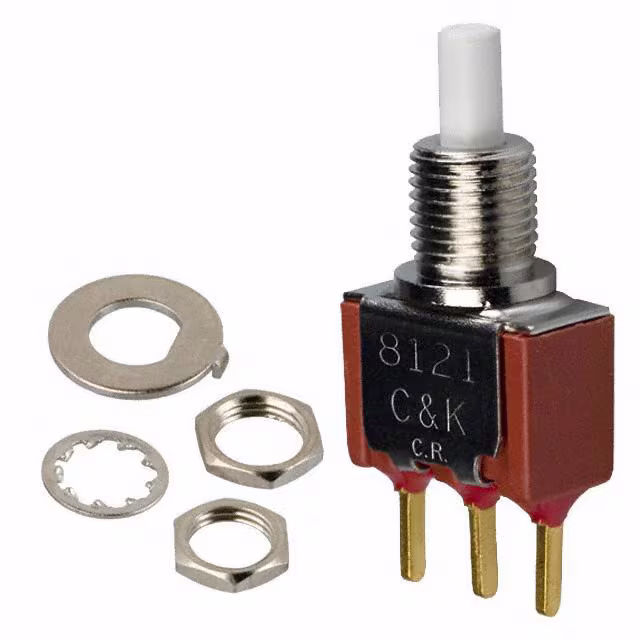

8121SDCGESWITCH PUSHBUTTON SPDT 1A 120V |
1,703 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8125SD9ABESWITCH PUSH SPDT 0.4VA 20V |
1,280 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
ELUMOASAQ7C12SWITCH PUSH SPDT 0.25A 50V |
450 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Blue | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|

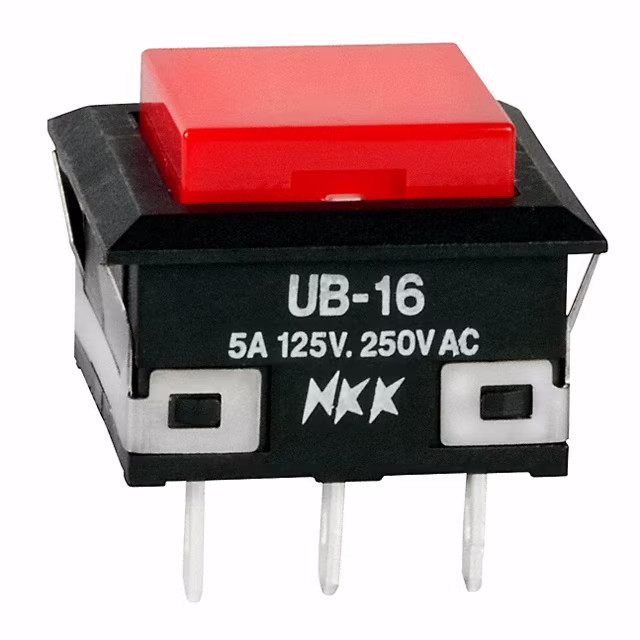

UB16KKW01N-CSWITCH PUSHBUTTON SPDT 5A 125V |
426 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

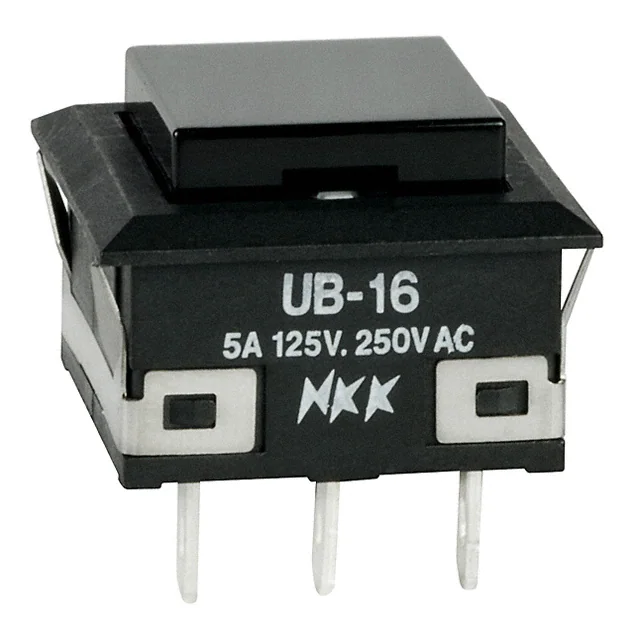

UB16KKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
424 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
KP0115ANBKG03RGBP-3SJBSWITCH PB MINI ILLUMINATED RGB |
187 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

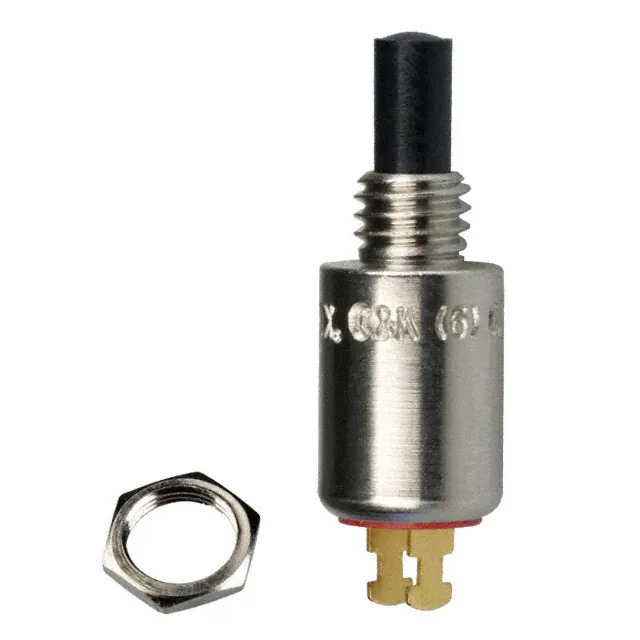

8632ZBD2SWITCH PUSH SPST-NO 0.4VA 20V |
736 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|

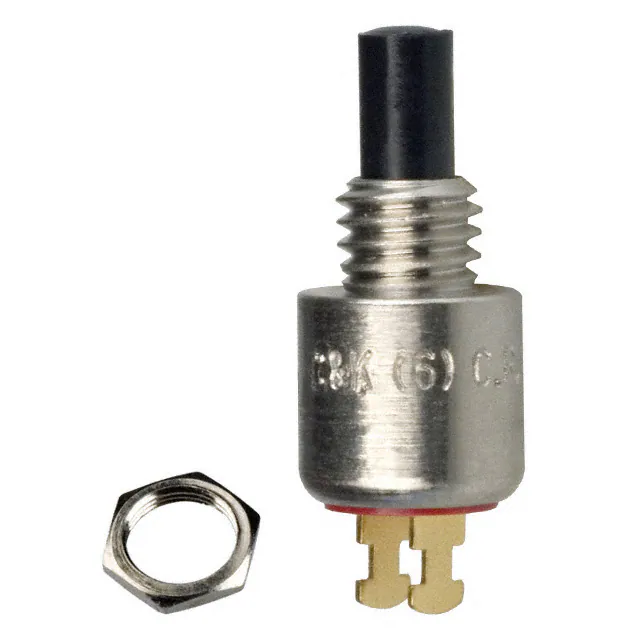

8631ZBD2SWITCH PUSH SPST-NO 0.4VA 20V |
247 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
8632ZQD2SWITCH PUSH SPST-NO 0.5A 120V |
2,002 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
PV0H240SS-241SWITCH PUSHBUTTON SPST-NO 2A 48V |
241 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
8R2022-N-ZSWITCH PUSHBUTTON DPDT 3A 125V |
535 |
|
Datasheet |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|
HB215SKG03CF-JBSWITCH PUSH SPST-NO 0.4VA 28V |
182 |
|
Datasheet |
HB2 | Tray | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 2.25 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
SERL BK RD AU EESWITCH PUSH SPDT 0.01A 24V |
548 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
TP12SHCQESWITCH PUSHBUTTON SPDT 1A 120V |
803 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
