Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP11LTCBESWITCH PUSH SPST-NO 0.4VA 20V |
1,994 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
1212A2SWITCH PUSH SPST-NC 8A 125V |
811 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|

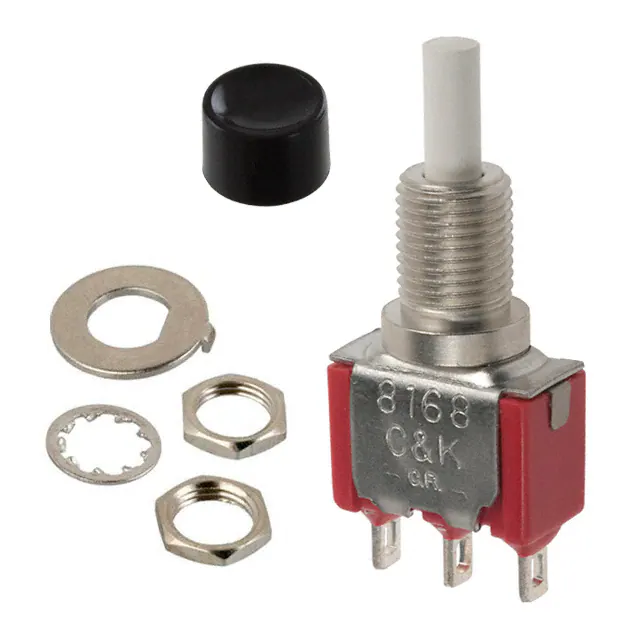

8168SHZQE2SWITCH PUSHBUTTON SPDT 6A 120V |
477 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
1213A2SWITCH PUSH SPST-NO 8A 125V |
1,362 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|

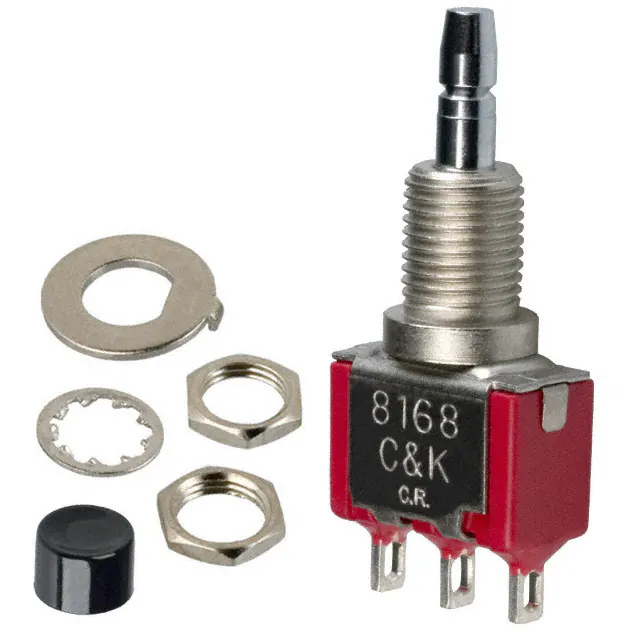

8168LHZQE2SWITCH PUSHBUTTON SPDT 6A 120V |
155 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
TP12SHZQESWITCH PUSHBUTTON SPDT 1A 120V |
167 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|

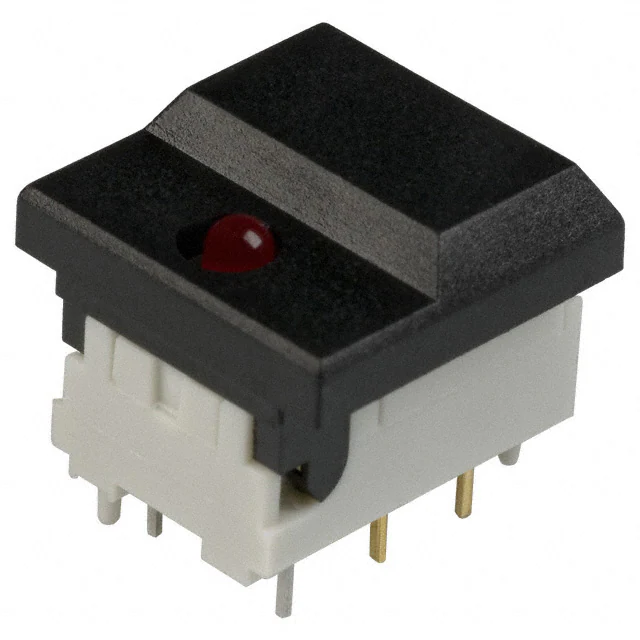

SETL BK RD 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
590 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
SERL BK GN 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
256 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

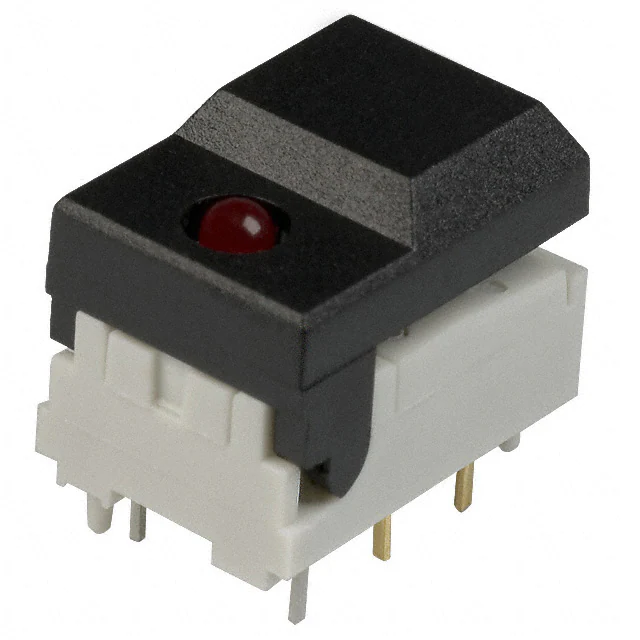

SERL BK RD 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
131 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
BH16NBSBBSWITCH PB SPST 1A 125V |
183 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

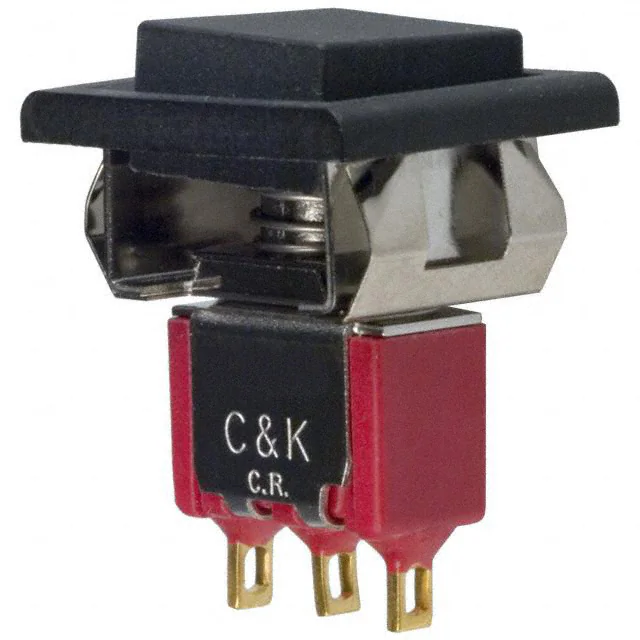

8125J81ZBE22SWITCH PUSH SPDT 0.4VA 20V |
151 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
LB16CKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
1,626 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
FHLBSBBNSWITCH PB SPST 2A 48V |
111 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
PV0H240SS-311SWITCH PUSHBUTTON SPST-NO 2A 48V |
233 |
|
Datasheet |
PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
MBN15SS1W01-BABUSHING MOUNT MINIATURE PUSHBUTT |
126 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

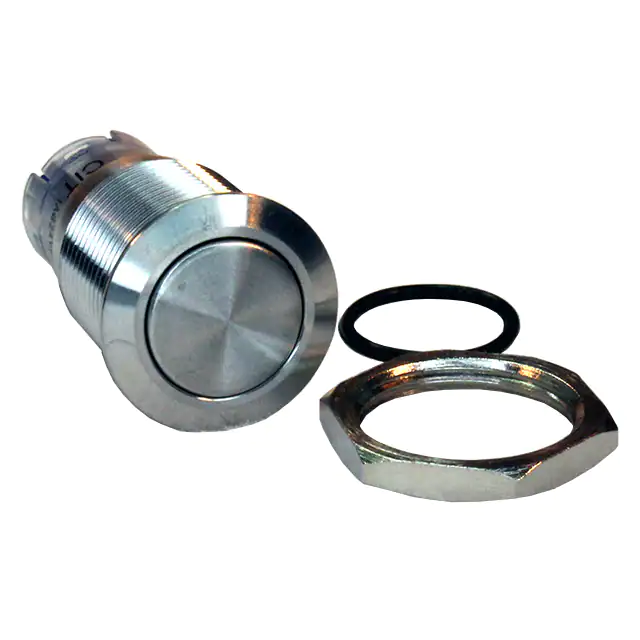

CH1NASSSWITCH PB SPDT 1A 125V |
108 |
|
Datasheet |
CH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
9269SWITCH MOM NO |
239 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 12 V | Round, Plunger | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
8732S1HZBESWITCH PUSH SPST-NO 0.4VA 20V |
168 |
|
Datasheet |
8700 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Overtravel | Circular - 8.08mm Dia | -30°C ~ 65°C |
|

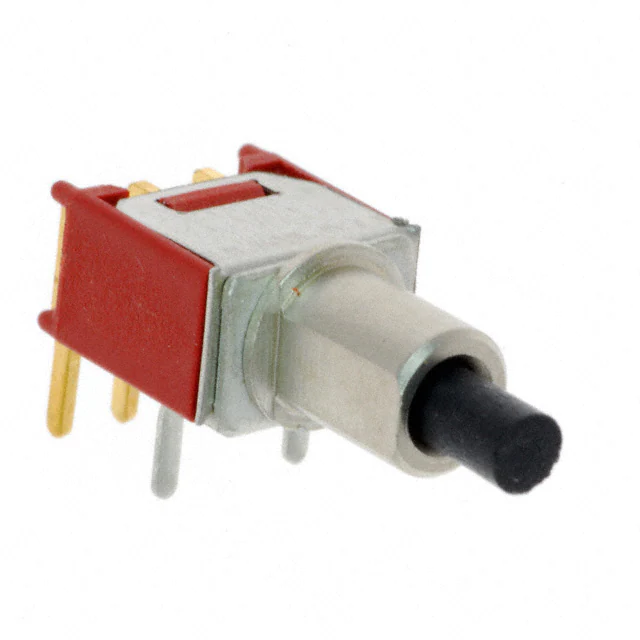

TP12SH9ABESWITCH PUSH SPDT 0.4VA 20V |
1,060 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
PLP16C1SQ3SA4MOMENTARY, SQUARE, IP40, NON-ILL |
187 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC), 1A (DC) | 250 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
