Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

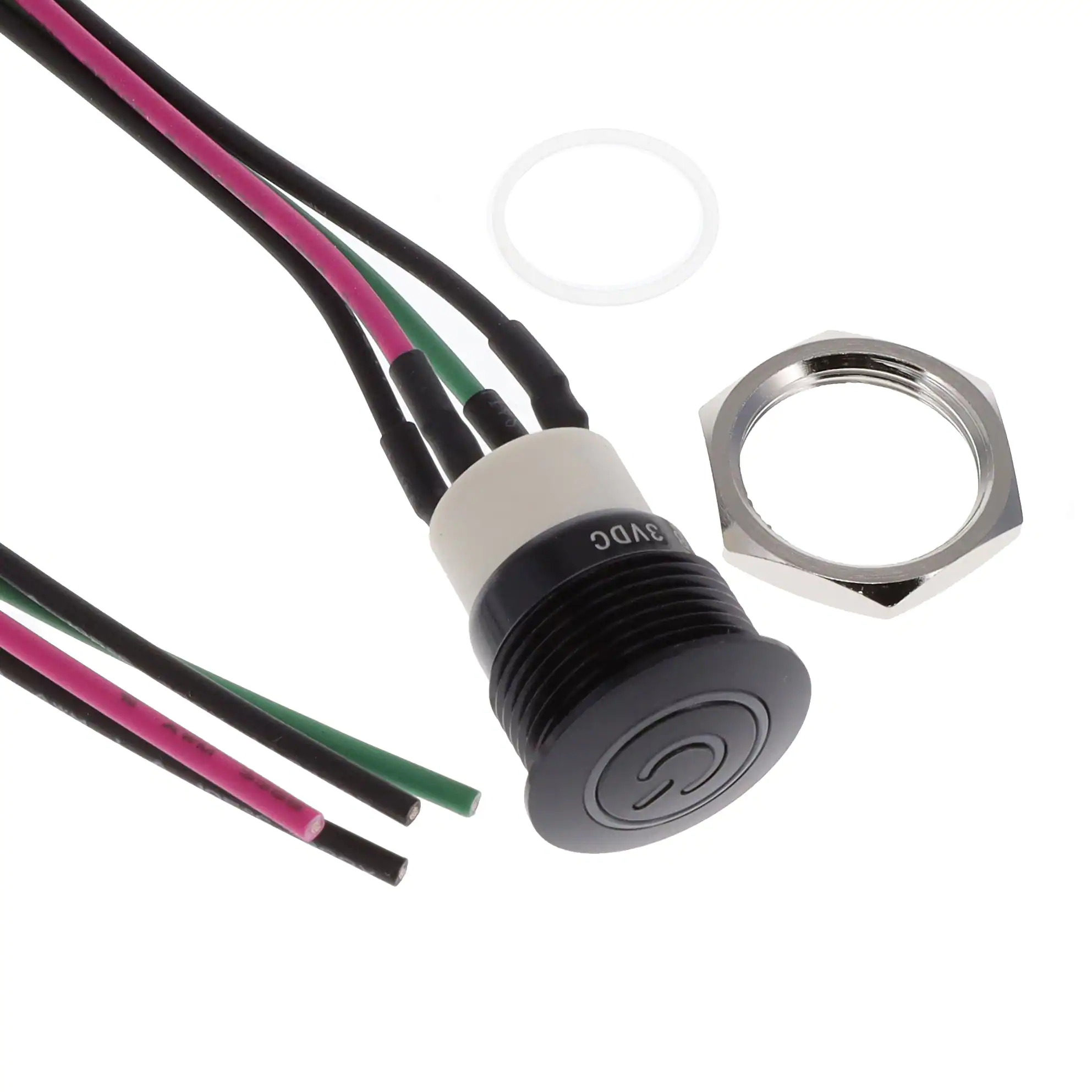

PVA6LRPW1141SWITCH PB SPST 2A 36V |
383 |
|
Datasheet |
PVA6L | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Blue | 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
IAR3F17/100SWITCH PUSH SPST-NO 2A 24V |
5,645 |
|
Datasheet |
IA | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | White | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
IAR3F1600SWITCH PUSH SPST-NO 2A 24V |
2,164 |
|
Datasheet |
IA | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
AV1911P612Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,547 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910P612Q04SWITCH PUSHBUTTON SPDT 3A 250V |
306 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
EP913S20SWITCH PUSH SPDT 0.25A 125V |
327 |
|
Datasheet |
EP913 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom, Off-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | - |
|
82-4151.2000SWITCH PUSHBUTTON SPDT 3A 240V |
396 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
AP2E200TWBESWITCH PUSH SPST-NO 0.125A 125V |
1,506 |
|
Datasheet |
AP | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
82-5151.1000SWITCH PUSHBUTTON SPDT 3A 240V |
1,567 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
82-5151.2000SWITCH PUSHBUTTON SPDT 3A 240V |
547 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -30°C ~ 70°C |
|

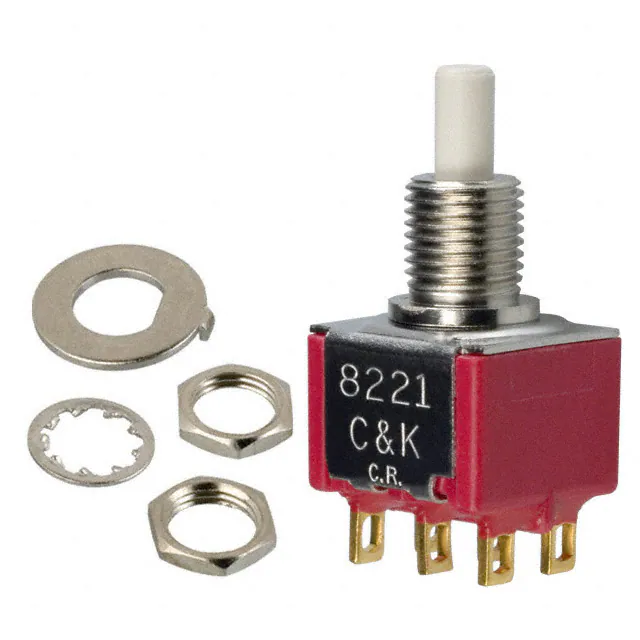

8221SHZGESWITCH PUSHBUTTON DPDT 1A 120V |
289 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
ILR3SAD2SWITCH PUSHBUTTON SPST-NO 2A 24V |
613 |
|
Datasheet |
IL | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
AV1921P712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
783 |
|
Datasheet |
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
IPR1SAD2SWITCH PUSHBUTTON SPST 4A 12V |
3,488 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
ISR3SAD600SWITCH PUSH SPST-NO 0.4A 32V |
390 |
|
Datasheet |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
MP0013SWITCH PUSH SPST-NO 1A 50V |
182 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC) | 50 V | - | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 19.20mm Dia | -20°C ~ 85°C |
|
ATP16DL5606B3SA04GSWITCH ANTIVANDAL 16MM DOME RING |
1,098 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Green | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

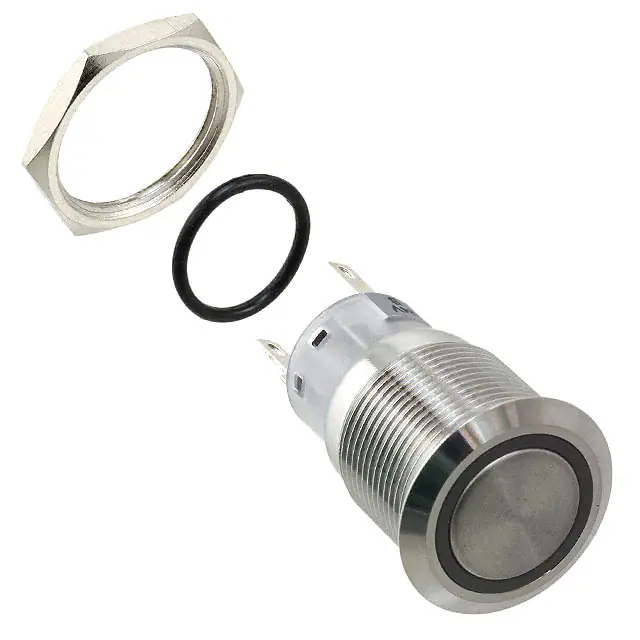

PV4F2B0SS-345SWITCH PUSHBUTTON SPDT 2A 24V |
209 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
MPB037SWITCH PUSHBUTTON SPST-NO 1A 50V |
133 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 50 V | 50 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|
AL6M-M14P-G16MM PUSHBUTTON ILLUMINATED |
185 |
|
Datasheet |
A6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
