Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDANN005PGAA5SENSOR 5PSIG 0.19" 4.5V 8DIP |
172 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRRD100PDSA3SENSOR 100PSID 0.08" 12BIT 8SMD |
64 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | - | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
BPS130-HG300P-1SGSENSOR 300PSIG 0.122" 4.95V |
476 |
|
Datasheet |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 600PSI (4136.85kPa) | -40°C ~ 150°C | - | - | - | - |
|
SSCSNBN015PGAA5SENSOR 15PSIG 0.19" 4.5V 4SIP |
317 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN001PGAA5SENSOR 1PSIG 0.19" 4.5V 4SIP |
76 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
26PCCFB6GSENSOR 15PSIC 0.18" 0.1V |
208 |
|
Datasheet |
26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NPH-8-200AHSENSOR 29.01PSIA 0.19" 0.1V TO8 |
373 |
|
Datasheet |
NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
ADP5211SENSOR 14.5PSIG 0.12" 4.5V |
762 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | -14.5PSI (-100kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
NPI-19H-101AHSENSOR 14.5PSIA 1/4"NPT 0.1V |
130 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
HSCDRRD006MDSA3SENSOR 0.09PSID 0.08" 12BIT 8DIP |
71 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.09PSI (±0.6kPa) | SPI | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPI-19J-050A2SENSOR 50PSIA 1/8"NPT 14BIT |
34 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 50PSI (344.74kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 100PSI (689.48kPa) | -40°C ~ 125°C | - | - | - | - |
|

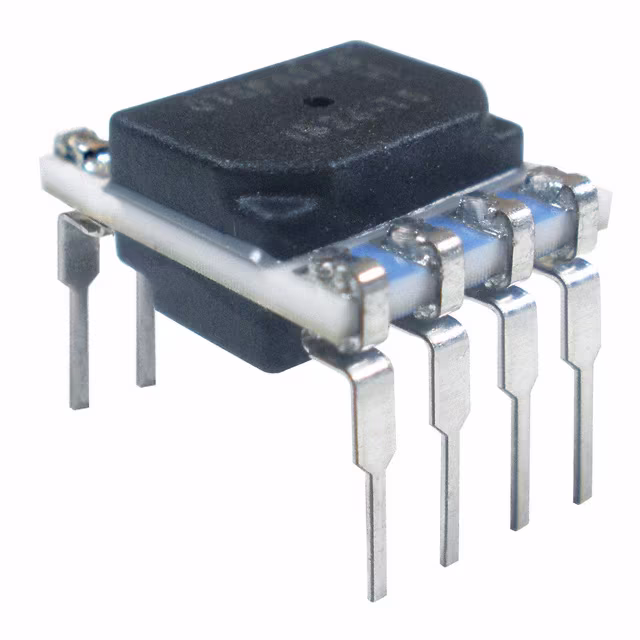

HSCDNNV005PDSA5SENSOR 5PSID 12BIT 8DIP |
174 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm) | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPI-19A-300A2SENSOR 300PSIA 14BIT |
42 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 300PSI (2068.43kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-300G2SENSOR 300PSIG 1/8"NPT 14BIT |
35 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 300PSI (2068.43kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19M-200G2SENSOR 200PSIG M12 14BIT |
34 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
4515DO-DS3BK005DPSENSOR 0.18PSID 0.14" 14BIT |
239 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
24PCCFA2GSENSOR 15PSIC 0.25" .225V |
96 |
|
Datasheet |
24PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbless | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDRRN025MDAA3SENSOR 0.36PSID 0.08" 2.97V 8DIP |
50 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDNNV100PGSA5SENSOR 100PSIG 12BIT 8DIP |
102 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm) | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ADP5121SENSOR 3.63PSIG 0.12" 4.5V |
138 |
|
Datasheet |
PS-A | 6-DIP Module, Top Port | Bulk | Last Time Buy | Board Mount | Vented Gauge | 3.63PSI (25kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 7.25PSI (50kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
