Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPS130-HG015P-3SSENSOR 15PSIG 0.122" 4.95V |
191 |
|
Datasheet |
BPS130 | 3-SIP Module | Tray | Active | Board Mount | Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 150°C | - | - | Through Hole | - |
|
NPC-410-050D-3-SSENSOR 50PSID 0.13" .125V 8DIP |
183 |
|
Datasheet |
NPC-410 | 8-DIP Module | Tray | Active | Board Mount | Differential | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
NPI-19A-101GHSENSOR 14.5PSIG 0.1V |
153 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
SSCDRRN001PGAA5SENSOR 1PSIG 0.08" 4.5V 8DIP |
117 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NPA-500B-001GSENSOR 1PSIG 0.12" 4.5V |
328 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-300B-05WDSENSOR 0.18PSID 0.12" 3V |
260 |
|
Datasheet |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
HSCDANN1.6BASA5SENSOR 23.21PSIA 0.19" 12BIT DIP |
559 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 23.21PSI (160kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SM9333-BBE-S-125-000SENSOR 0.02PSID 0.12" 16BIT SOIC |
1,034 |
|
Datasheet |
SM9333 | 16-SOIC (0.295", 7.50mm Width) | Box | Active | - | Differential | -0.02PSI ~ 0.02PSI (-0.12kPa ~ 0.13kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.02PSI (7kPa) | -20°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|

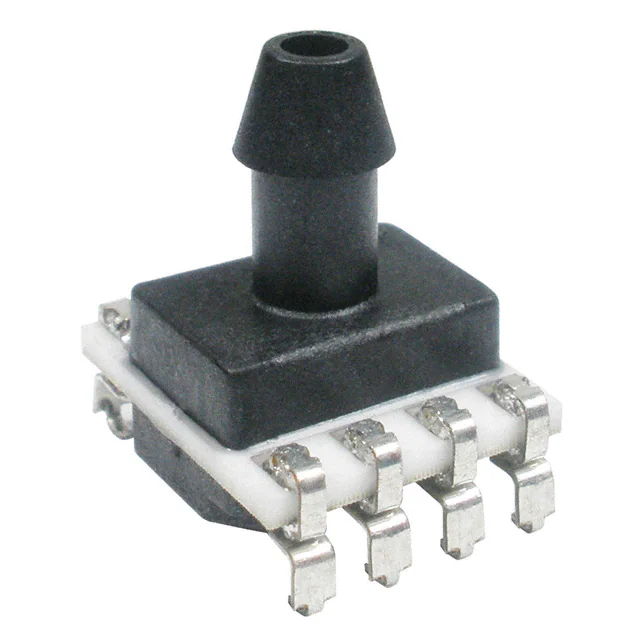

SSCMANN060PG2A3SENSOR 60PSIG 0.19" 12BIT 8SMT |
545 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

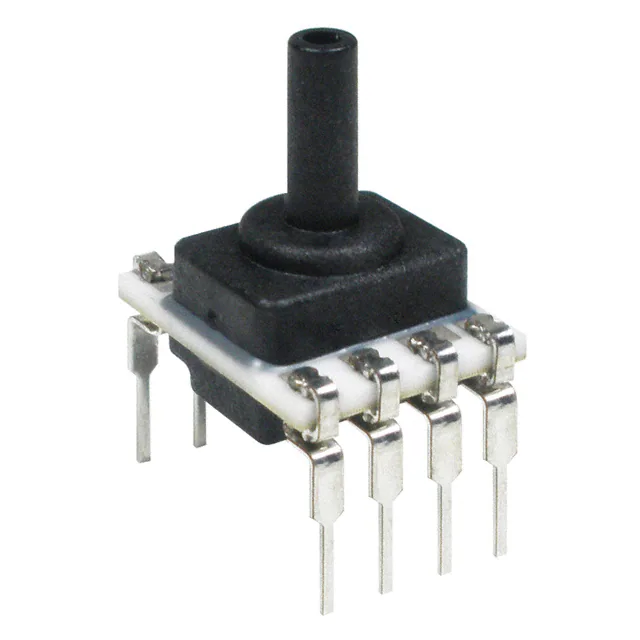

HSCDLNN001PDAA3SENSOR 1PSID 0.1" 2.97V 8DIP |
401 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMRND015PGSA3SENSOR 15PSIG 0.08" 12BIT 8SMT |
381 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
DLH-L60D-E1BD-C-NAV8SENSOR 2.17PSID 0.09" 16BIT 8DIP |
316 |
|
Datasheet |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 2.17PSI (15kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLH-L05D-E1BD-C-NAV8SENSOR 0.18PSID 0.09" 16BIT 8DIP |
120 |
|
- |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
1 PSI-D-HGRADE-MVSENSOR 1PSID 0.19" .018V |
165 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4525-SS5A100GPSENSOR 100PSIG 0.14" 4.5V |
143 |
|
Datasheet |
MS4525 | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
|
BPS130-HA015P-1SGSENSOR 15PSIA 0.122" 4.95V |
236 |
|
Datasheet |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 30PSI (206.84kPa) | -40°C ~ 150°C | - | - | - | - |
|

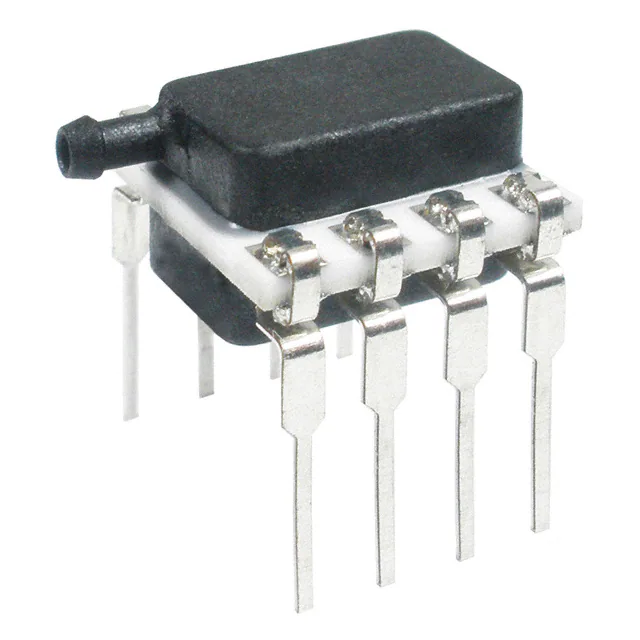

HSCDRNN030PAAA3SENSOR 30PSIA 0.08" 2.97V 8DIP |
169 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

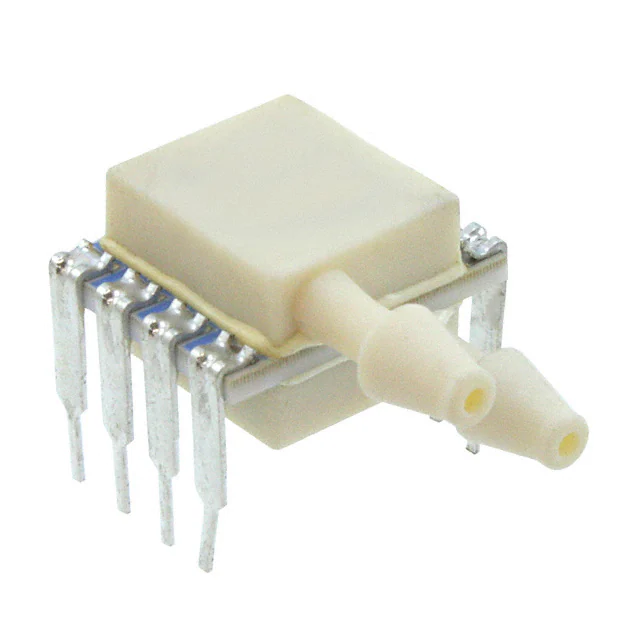

4515-DS5A002DPSENSOR 0.07PSID 0.14" 4.5V |
621 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
4515-DS5A004DPPRESS XDCR,ANALOG,INH20 RANGE |
233 |
|
Datasheet |
MS4515 | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 0.14PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 2.7V ~ 5.5V | Male - 0.14" (3.5mm) Tube, Dual | Barbed | Temperature Compensated | PC Pins | 300PSI (2068.43kPa) | -10°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

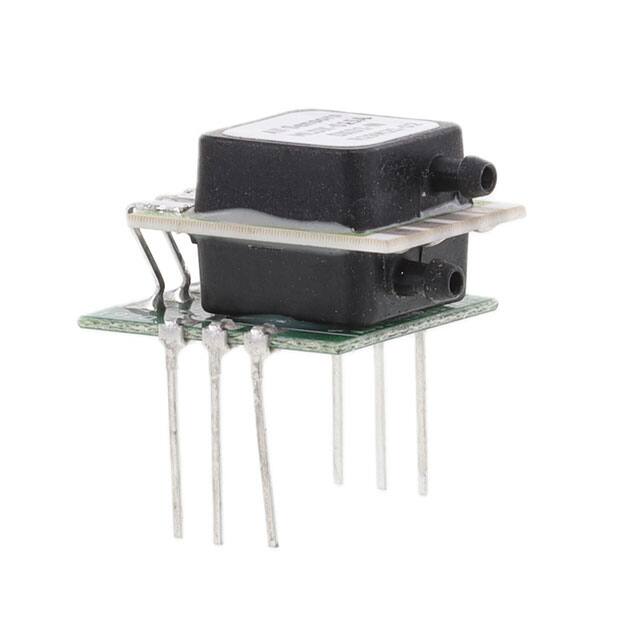

MLDX-015A-DX01-NSENSOR 15PSIA 0.09" .075V 6DIP |
131 |
|
Datasheet |
MLDX | 6-DIP (0.600", 15.24mm), Dual Ports, Same Side | Tray | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 75 mV | ±0.5% | 20V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
