Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86A3R-000000-100PGSENSOR 100PSIG 4.5V |
57 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -20°C ~ 85°C | - | - | - | - |
|
19C015PG4KSENSOR 15PSIG 1/8"NPT 0.1V |
26 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C500PA4KSENSOR 500PSIA 1/8"NPT 0.1V |
221 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C300PG4KSENSOR 300PSIG 1/8"NPT 0.1V |
46 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
B58600E3914B637SENSOR 17.4PSIA .015V DIE |
34,638 |
|
Datasheet |
C39 | Die | Bulk | Active | - | Absolute | 17.4PSI (120kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.1% | 1V ~ 6V | - | No Port | - | SMD (SMT) Tab | 43.51PSI (300kPa) | -40°C ~ 135°C | - | - | - | Die |
|
TBPLLNN030PGUCVSENSOR 30PSIG 0.13" .0275V 6SMT |
194 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tray | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 115PSI (792.9kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
NPP-301A-100ASENSOR 15PSIA .06V |
107 |
|
Datasheet |
NPP-301 | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.2% | 3V ~ 10V | - | No Port | - | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPRLL0001PG0000SCSENSOR 1PSIG 0.1" 24BIT |
144 |
|
Datasheet |
MPR | 12-SMD, No Lead, Top Port | Box | Active | Board Mount | Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
B58601E3513B710SENSOR 1.45PSIG .01V DIE |
338 |
|
Datasheet |
C35 | Die | Tray | Active | - | Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0mV ~ 10mV | ±1% | 1V ~ 5V | - | No Port | - | - | 36.26PSI (250kPa) | -40°C ~ 150°C (TA) | - | - | - | Die |
|
MPX10DSENSOR 1.45PSID .035V |
125 |
|
Datasheet |
MPX10 | 4-SIP Module | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | ±1% | 3V ~ 6V | - | No Port | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

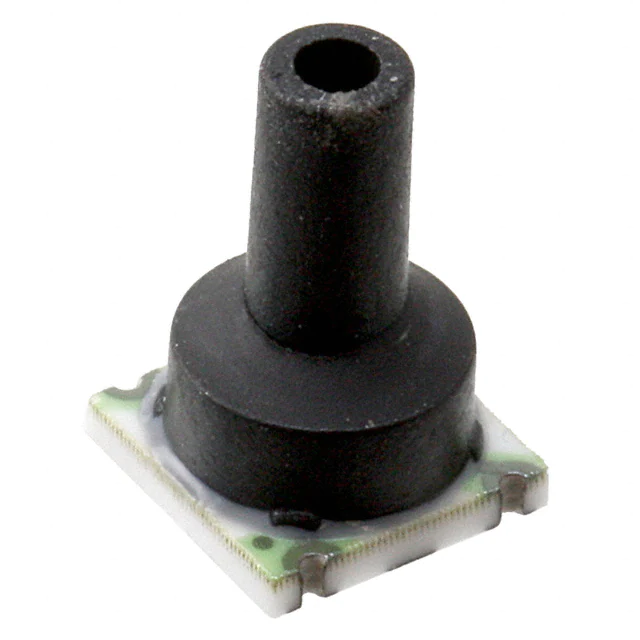

NBPLLNN030PGUNVSENSOR 30PSIG 0.13" .105V |
176 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
6391-BCE-S-040-00040CMH20 DIFF. DIGITAL/ANALOG PRE |
0 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7391-BCE-S-500-000500PA DIFF. DIGITAL/ANALOG PRESS |
0 |
|
Datasheet |
SM7000 | 16-SOIC Module, Dual Top Ports | Bulk | Active | Board Mount | Differential | 0.29PSI (2kPa) | I2C | 16 b | ±1% | 3V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.5PSI (10.34kPa) | -40°C ~ 105°C | - | - | Surface Mount | 16-SOIC |
|
TBPDANS030PGUCVSENSOR 30PSIG 0.11" .02625V 4DIP |
3,045 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
|
7391-BCE-S-005-0005INCHESH2O DIFFERENTIAL SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MPRLL0025PA00001ASENSOR 25PSIA 0.1" I2C |
137 |
|
Datasheet |
MPR | 12-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 25PSI (172.37kPa) | I2C | I2C | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|

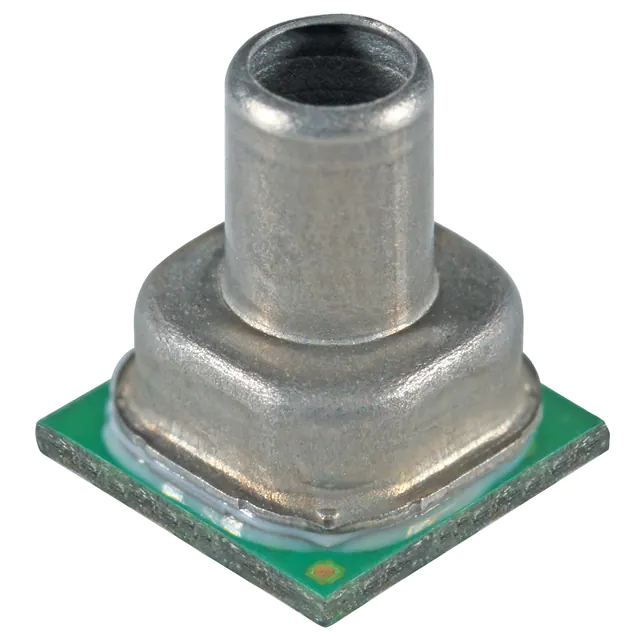

MPRLF0006KG0000SCSENSOR 0.87PSIG 0.1" 24BIT |
2,095 |
|
Datasheet |
MPR | 12-SMD Module | Tape & Reel (TR) | Active | - | Gauge | 0.87PSI (6kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5.08PSI (35kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
MPRLL0001PG00001CSENSOR 1PSIG 0.1" 24BIT |
158 |
|
Datasheet |
MPR | 12-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Gauge | 1PSI (6.89kPa) | I2C | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
NPA-700M-030ASENSOR 30PSIA 0.12" 14BIT 14SOIC |
200 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 2.7V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

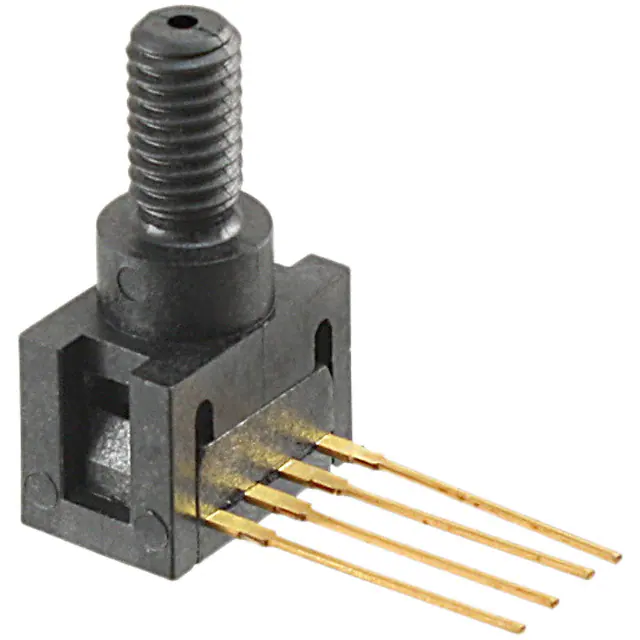

24PCGFH6GSENSOR 250PSIC M5 .212V |
407 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - M5 | Threaded | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
