Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P-2000-103G-15-BNSENSOR 142.28PSIG 0.13" .09V DIP |
993 |
|
Datasheet |
P-2000 | 6-DIP (0.472", 12.00mm), Top Port | Bulk | Active | Board Mount | Gauge | 142.28PSI (981kPa) | Analog Voltage | 0 mV ~ 90 mV | ±0.15% | - | Male - 0.13" (3.2mm) Tube | Barbless | Temperature Compensated | PC Pin | 213.35PSI (1471kPa) | -20°C ~ 80°C | - | - | Through Hole | 6-DIP |
|
SM4291-HGE-S-500-000SENSOR 7.25PSIG 0.12" 16BIT |
122 |
|
Datasheet |
SM4000 | 10-SOIC Module, Top Port | Box | Active | - | Gauge | -7.25PSI (-50kPa) | Analog Voltage, I2C | 16 b | - | 3V | Male - 0.12" (3mm) Tube | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 25PSI (172.37kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
ABP2DRRN002ND2B3XXSENSOR 14BIT 6DIP |
277 |
|
- |
ABP2 | 6-DIP Module, Dual Ports, Same Side | Box | Active | - | Vented Gauge | - | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | - | - | Amplified Output, Temperature Compensated | PC Pin | - | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
NPA-700B-015DSENSOR 15PSID 0.12" 14BIT |
3,185 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NPA-730B-005GSENSOR 5PSIG 0.12" 14BIT 14SOIC |
347 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

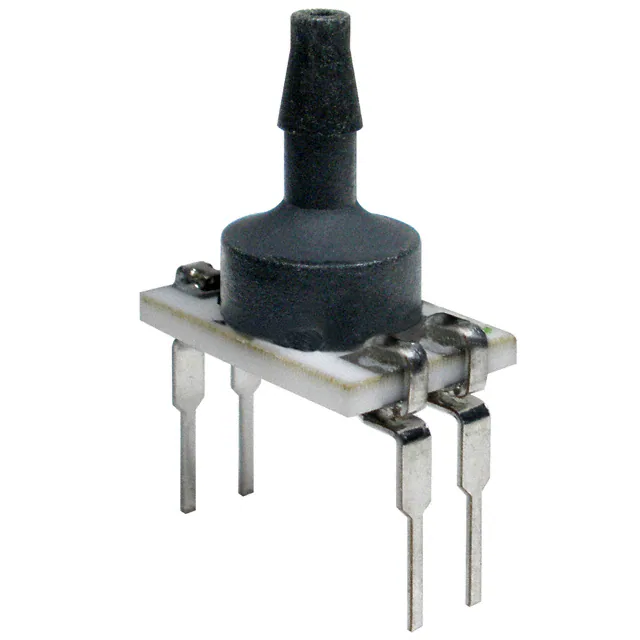

NBPDANN150PAUNVSENSOR 150PSIA 0.08" .13V |
300 |
|
Datasheet |
NBP | 4-DIP (0.453", 11.50mm), Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 130 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.08" (1.91mm) Tube | Barbed | - | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
TBPMANN150PGUCVSENSOR 150PSIG 0.11" .04575V SMT |
200 |
|
Datasheet |
TBP | 4-SMD, J-Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Surface Mount | 4-SMT |
|
|
NPA-500B-001DSENSOR 1PSID 0.12" 4.5V |
101 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
325540009-00SENSOR 15.95PSIA 16BIT |
197 |
|
Datasheet |
- | 8-SMD Module | Tube | Active | Board Mount | Absolute | 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
24PCAFA6DSENSOR 1PSID 0.2" .045V |
945 |
|
Datasheet |
24PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HV160-SM02-RSENSOR 2.17PSID 0.08" 16BIT |
154 |
|
Datasheet |
HV | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.09PSI ~ ±2.17PSI (±0.62kPa ~ ±15kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±14.5PSI (±100kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
|
NPA-730B-02WDSENSOR 0.07PSID 0.12" 14BIT SOIC |
233 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
116CP31-M04S2-50SENSOR 60PSIS 1/4" 3.5V |
289 |
|
Datasheet |
116CP | Module | Box | Active | Board Mount | Sealed Gauge | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 3.5 V | ±1.5% | 5V | Male - 1/4" (6.35mm) BSPP | Threaded | - | Connector | 120PSI (827.37kPa) | 2°C ~ 90°C | - | - | - | - |
|
|
HV120-SM02-RSENSOR 0.72PSID 0.08" 16BIT |
664 |
|
Datasheet |
HV | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.09PSI ~ ±0.72PSI (±0.62kPa ~ ±5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
SSCMRNN1.6BA7A5SENSOR 23.21PSIA 0.08" 12BIT SMT |
1,605 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Side Port | Tube | Active | Board Mount | Absolute | 23.21PSI (160kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
NPA-500B-05WGSENSOR 0.18PSIG 0.12" 4.5V |
110 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SDP37-125PA-TR-250PCSSENSOR 0.013PSID 0.08" .9V 16SMD |
950 |
|
- |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | -0.001PSI ~ 0.013PSI (-0.005kPa ~ 0.125kPa) | Analog Voltage | 100 mV ~ 900 mV (3.3V) | ±3% | 3V ~ 3.6V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±14.5PSI (±100kPa) | -20°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
|
SDP36-500PA-TR-250PCSSENSOR 0.07PSID 0.08" .9V 16SMD |
668 |
|
Datasheet |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | Analog Voltage | 100 mV ~ 900 mV (3.3V) | ±3% | 3V ~ 3.6V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
|
ND060ASENSOR 60PSIA 0.08" 16BIT |
265 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 60PSI (413.69kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 150PSI (1034.21kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
ND130-SM02-RSENSOR 1.09PSID 0.08" 16BIT |
264 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 0.07PSI ~ 1.09PSI (0.5kPa ~ 7.5kPa) | I2C, SPI | 16 b | ±0.15% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 3.61PSI (24.91kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
