Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ND120-SM02-RSENSOR 0.73PSID 0.08" 16BIT |
181 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 0.04PSI ~ 0.73PSI (0.25kPa ~ 5kPa) | I2C, SPI | 16 b | ±0.15% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
HSCDRRT001PD2A3SENSOR 1PSID 0.08" 12BIT 8DIP |
1,004 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDRRN030PGAB5SENSOR 30PSIG 0.08" 4.75V 8DIP |
121 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCSSNN100PDUNVSENSOR 100PSID .1725V 4SIP |
868 |
|
Datasheet |
TruStability® NSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 172.5 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
BLCR-L01D-U2SENSOR 0.04PSIG 0.12" .008V |
103 |
|
Datasheet |
BLCR | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.04PSI (±0.25kPa) | Analog Voltage | 0 mV ~ 8 mV | ±0.5% | 1.8V ~ 3.3V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
SDP611SENSOR 0.072PSID 0.2" 16BIT 3SIP |
374 |
|
Datasheet |
SDP600 | 3-SIP Module | Tray | Not For New Designs | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 16 b | ±3% | 3V ~ 3.6V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C | - | - | Through Hole | 3-SIP |
|

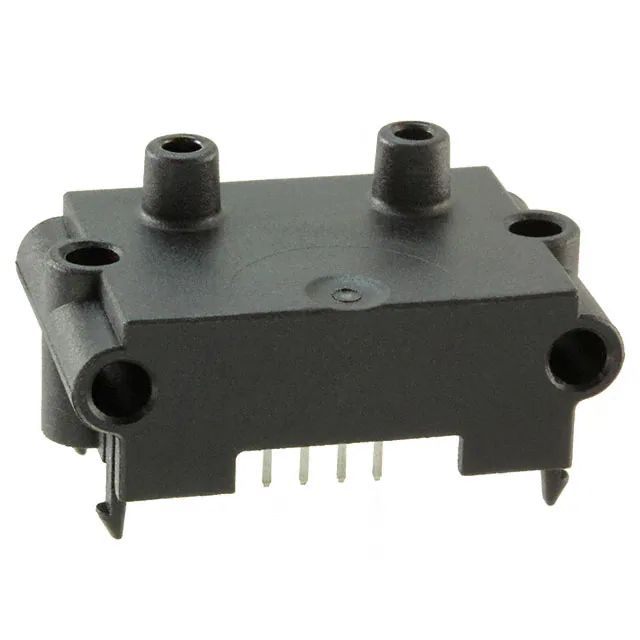

SDP600-500PASENSOR 0.072PSID 16BIT MODULE |
155 |
|
Datasheet |
SDP600 | 3-SIP Module | Tray | Not For New Designs | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 16 b | ±3% | 3V ~ 3.6V | - | No Port | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C | - | - | Through Hole | Module |
|
HSCMRRD400MG2A3SENSOR 5.8PSIG 0.08" 12BIT 8SMD |
538 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 5.8PSI (40kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
ABP2DDAN001PD2A3XXSENSOR 1PSIG 0.11" 14BIT 6DIP |
114 |
|
- |
ABP2 | 6-DIP Module, Dual Ports, Same Side | Box | Active | - | Vented Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
|
SP160-SM02-RSENSOR 5.8PSID 0.08" 16BIT |
245 |
|
Datasheet |
SP | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.73PSI ~ ±5.8PSI (±5kPa ~ ±40kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±36PSI (±249kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
NPA-730B-10WDSENSOR 0.36PSID 0.12" 14BIT SOIC |
103 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NPA-500B-030DSENSOR 30PSID 0.12" 4.5V |
106 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

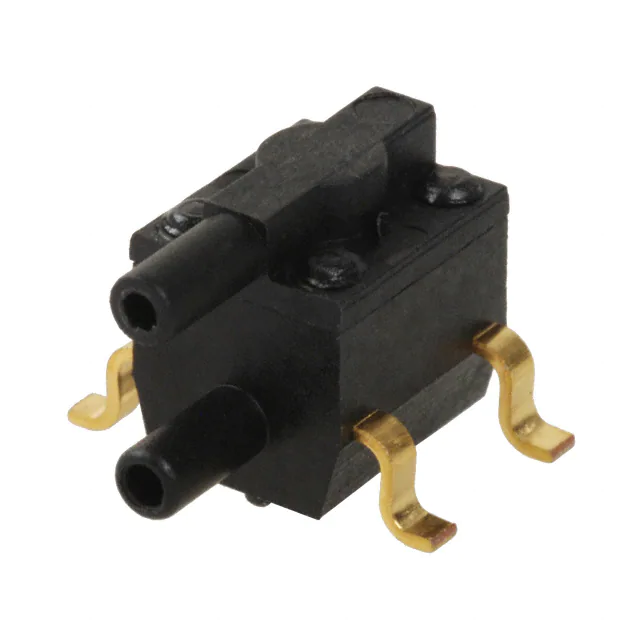

24PC01SMTSENSOR 1PSID 0.07" .045V |
161 |
|
Datasheet |
24PC SMT | 4-SMD Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±0.4% | 2.5V ~ 12V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | - | Gull Wing | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
HSCSANN100PA2A5SENSOR 100PSIA 0.19" 12BIT 4SIP |
173 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Tube | Active | Board Mount | Absolute | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
BPS110-AG01P0-2DGSENSOR 1PSIG 0.087" 4.5V 8SMD |
688 |
|
Datasheet |
BPS110 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | Board Mount | Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 2.7V ~ 5.5V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | Amplified Output | J Lead | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

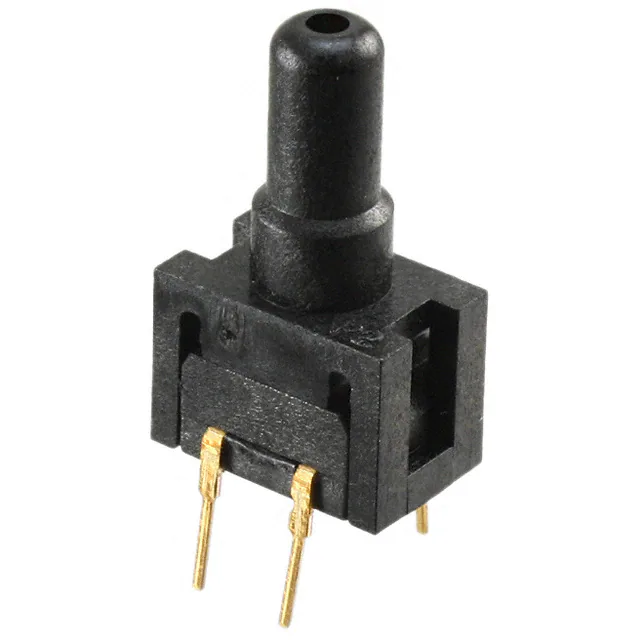

26PCFFA2GSENSOR 100PSIC 0.2" 0.1V |
306 |
|
Datasheet |
26PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDANT005PGAA5SENSOR 5PSIG 0.19" 4.5V 8DIP |
275 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

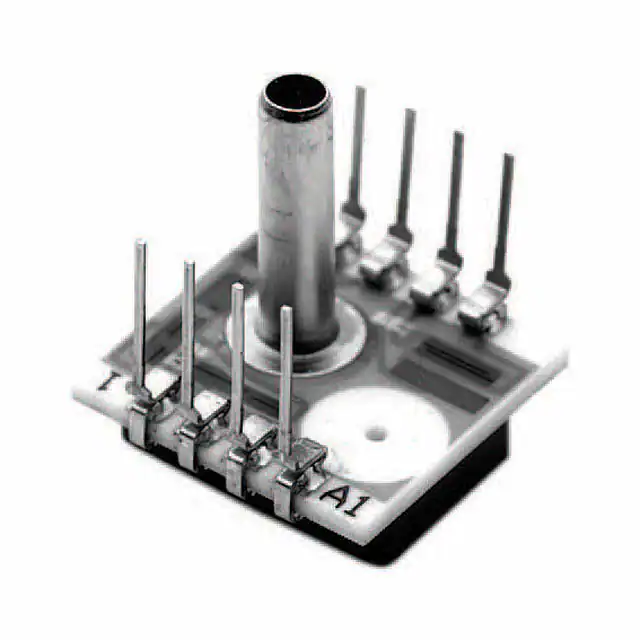

NPC-1220-005G-3-SSENSOR 5PSIG 0.12" .05V |
757 |
|
Datasheet |
NPC-1220 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | - | Male - 0.12" (3.04mm) Tube | Barbless | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

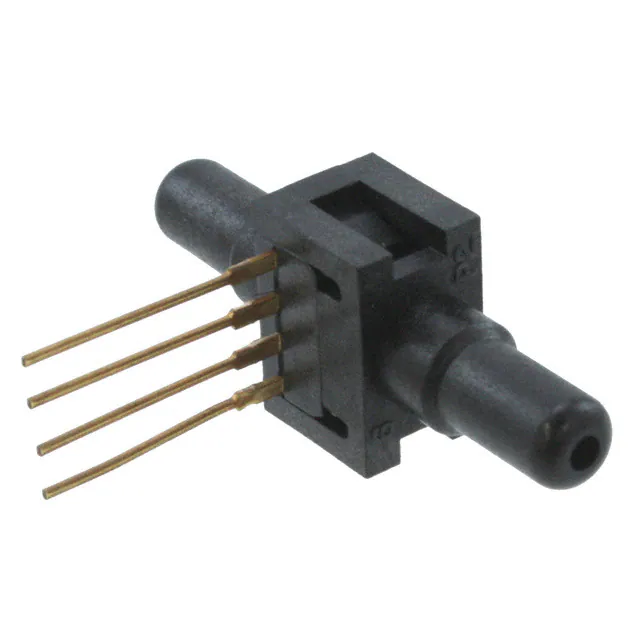

26PCGFA6DSENSOR 250PSID 0.2" .15V |
855 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (10V) | ±0.7% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SP110-SM02-RSENSOR 0.36PSID 0.08" 16BIT |
767 |
|
Datasheet |
SP | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.04PSI ~ ±0.36PSI (±0.25kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
