Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90809LXG-EAD-007-SPSENSOR 14.5PSI 4.5V 16SOIC |
496 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tube | Active | Industrial Automation | - | 14.5PSI (100kPa) | Analog Voltage | 0.5V ~ 4.5V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
|
SP4001511XTMA1SENSOR 203.05PSIA DSOSP14 |
1,790 |
|
Datasheet |
- | 14-BSSOP (0.220", 5.60mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 14.5PSI ~ 203.05PSI (100kPa ~ 1400kPa) | RF | - | - | 3.6V | - | No Port | - | - | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | PG-DSOSP-14-82 |
|
NPP-301B-100ASENSOR 15PSIA 0.08" .06V |
546 |
|
Datasheet |
NPP-301 | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.2% | 3V ~ 10V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXM2102AT1SENSOR 14.5PSIA .04V 5MPAK |
510 |
|
Datasheet |
MPXM2102 | 5-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
MPXM2053GST1SENSOR 7.25PSIG 0.12" .04V 5MPAK |
4,188 |
|
Datasheet |
MPXM2053 | 5-SMD Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | -0.6% ~ 0.4% | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
TBPLANN100PGUCVSENSOR 100PSIG 0.11" .0255V 6SMT |
474 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
MPXM2202GST1SENSOR 29.01PSIG 0.12" .04V MPAK |
544 |
|
Datasheet |
MPX2202 | 5-SMD Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPXM2102ASSENSOR 14.5PSIA 0.12" .04V 5MPAK |
3,995 |
|
Datasheet |
MPXM2102 | 5-SMD Module, Top Port | Tube | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPRSL0001PG0000SCSENSOR 1PSIG 0.17" 24BIT |
1,198 |
|
Datasheet |
MPR | 12-SMD Module | Tape & Reel (TR) | Active | Board Mount | Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.17" (4.2mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
MPXH6101A6T1SENSOR 15.23PSIA 5V 8SSOP |
644 |
|
Datasheet |
MPXH6101A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXV2010DPSENSOR 1.45PSID 0.13" .025V 8SOP |
1,047 |
|
Datasheet |
MPXV2010 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV2050GPSENSOR 7.25PSIG 0.13" .04V 8SOP |
109 |
|
Datasheet |
MPXV2050 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.3% | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPVZ4006GW7USENSOR 0.87PSIG 0.22" 4.6V |
138 |
|
Datasheet |
MPVZ4006G | 8-DIP Module | Tube | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Through Hole | - |
|
|
MMR920C04ARESENSOR 0.57PSIG 0.1" 7BIT |
489 |
|
Datasheet |
- | 12-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Gauge | -0.57PSI ~ 0.57PSI (-3.92kPa ~ 3.92kPa) | I2C, SPI | 7 b | ±0.65% | 3V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.14PSI (7.85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
MPX2102ASXSENSOR 14.5PSIA 0.19" .04V |
14,865 |
|
Datasheet |
MPX2102 | 4-SIP Module | Tray | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX2102APSENSOR 14.5PSIA 0.19" .04V |
3,223 |
|
Datasheet |
MPX2102 | 4-SIP Module | Tray | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX2010GSXSENSOR 1.45PSIG 0.19" .025V |
1,401 |
|
Datasheet |
MPX2010 | 4-SIP Module | Tray | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19" (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXV5010GC7USENSOR 1.45PSIG 0.13" 4.7V 8DIP |
120 |
|
Datasheet |
MPXV5010 | 8-DIP (0.550", 13.97mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
P-2000-501G-15-BNSENSOR 7.11PSIG 0.13" .09V 6DIP |
1,713 |
|
Datasheet |
P-2000 | 6-DIP (0.472", 12.00mm), Top Port | Bulk | Active | Board Mount | Gauge | 7.11PSI (49kPa) | Analog Voltage | 0 mV ~ 90 mV | - | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 14.21PSI (98kPa) | -20°C ~ 80°C | - | - | Through Hole | 6-DIP |
|

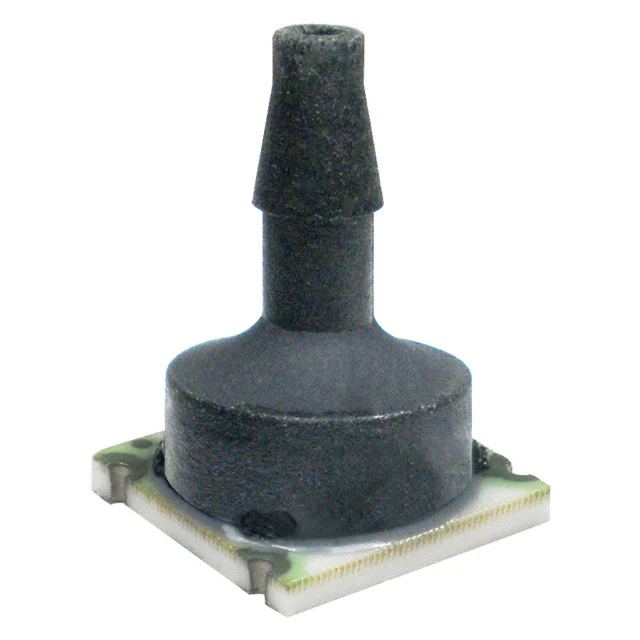

NBPLANN030PGUNVSENSOR 30PSIG 0.11" .105V |
697 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
