Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

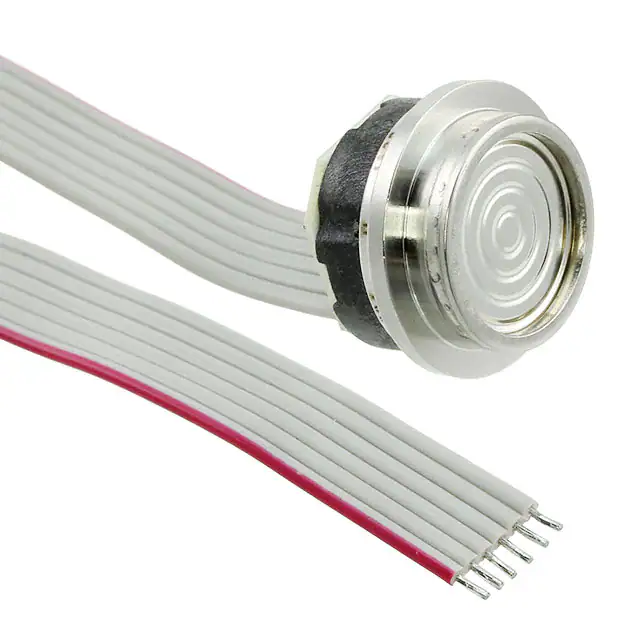

85-500A-0RSENSOR 500PSIA 0.1V |
58 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS01-G100KP-3WSENSOR 14.5PSIG 4.5V |
50 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 105°C | - | - | - | - |
|
HSCDRRN001ND2A3SENSOR 0.04PSID 0.08" 12BIT 8DIP |
293 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCCFA6GSENSOR 15PSIC 0.2" .225V |
31 |
|
Datasheet |
24PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCSNBN005NDAA5SENSOR 0.18PSID 0.19" 4.5V 4SIP |
87 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
PTE7100-22DC-0B050BNSENSOR 725.19PSIG 1/4"NPT 4.5V |
184 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-22CC-2B050BNSENSOR 725.19PSIG 7/16" 4.5V |
33 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 725.19PSI (5000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 1450.38PSI (10000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
PTE7100-32DC-0B200BNSENSOR 2900.75PSIG 1/4"NPT 4.5V |
28 |
|
Datasheet |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
|
26PCFFA6GSENSOR 100PSIC 0.2" 0.1V |
35 |
|
Datasheet |
26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
10 INCH-D-MVSENSOR 0.36PSID 0.19" .02V |
544 |
|
Datasheet |
ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-D-MVSENSOR 1.08PSID 0.19" .02V |
41 |
|
Datasheet |
ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

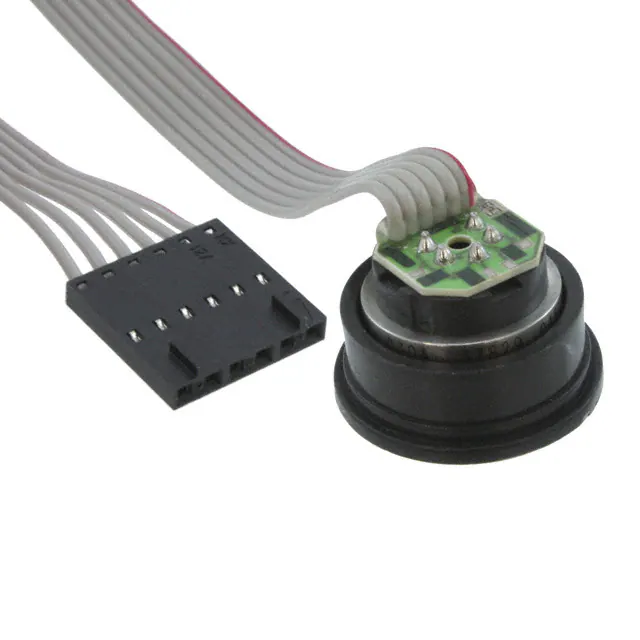

86-030A-CSENSOR 30PSIA 0.1V |
265 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

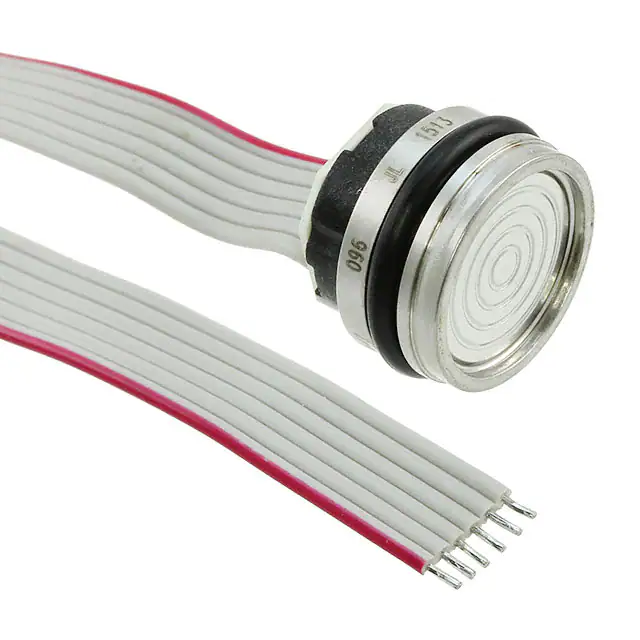

86-100G-RSENSOR 100PSIG 0.1V |
113 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300G-CSENSOR 300PSIG 0.1V |
97 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19J-005G2SENSOR 5PSIG 1/8"NPT 14BIT |
73 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 10PSI (68.95kPa) | -10°C ~ 80°C | - | - | - | - |
|
|
NPI-19J-100G2SENSOR 100PSIG 1/8"NPT 14BIT |
67 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 100PSI (689.48kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19J-200A2SENSOR 200PSIA 1/8"NPT 14BIT |
100 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19J-200G2SENSOR 200PSIG 1/8"NPT 14BIT |
45 |
|
Datasheet |
NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-15A-702SHSENSOR 1015.26PSIS .2V |
49 |
|
Datasheet |
NPI-15 | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 1015.26PSI (7000kPa) | Wheatstone Bridge | 0 mV ~ 200 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 2030.53PSI (14000kPa) | -40°C ~ 125°C | - | - | - | - |
|
M3256-00000E-010BGSENSOR 145.04PSIG 1/4" .02A |
54 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 145.04PSI (1000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 290PSI (2000kPa) | -40°C ~ 125°C | - | - | - | - |
