Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH619A-X007TOPTOISOLATOR 5.3KV DARL 4SMD |
8,432 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 1000% @ 1mA | - | 4.5µs, 29µs | 3.5µs, 14.5µs | DC | Darlington | 300V | 125mA | 1.2V | 60 mA | 1.2V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
VOM453TOPTOISOLATOR 3.75KV TRANS 5-SOP |
5,285 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.4V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 5-SOP |
|
MOCD223R2MOPTOISOLTR 2.5KV 2CH DARL 8SOIC |
8,661 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2500Vrms | 500% @ 1mA | - | 10µs, 125µs | 8µs, 110µs | DC | Darlington | 30V | 150mA | 1.25V | 60 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
LTV-844SOPTOISOLTR 5KV 4CH TRANS 16-SMD |
7,337 |
|
Datasheet |
LTV-8x4 | 16-SMD, Gull Wing | Tube | Active | 4 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 16-SMD |
|
PS2802-1-F3-AOPTOISOLATOR 2.5KV DARL 4SOIC |
11,617 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 90mA | 1.1V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
ILD217TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
11,034 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 100% @ 1mA | - | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
ILD1207TOPTOISO 4KV 2CH TRANS 8SOIC |
6,330 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | - | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOIC |
|

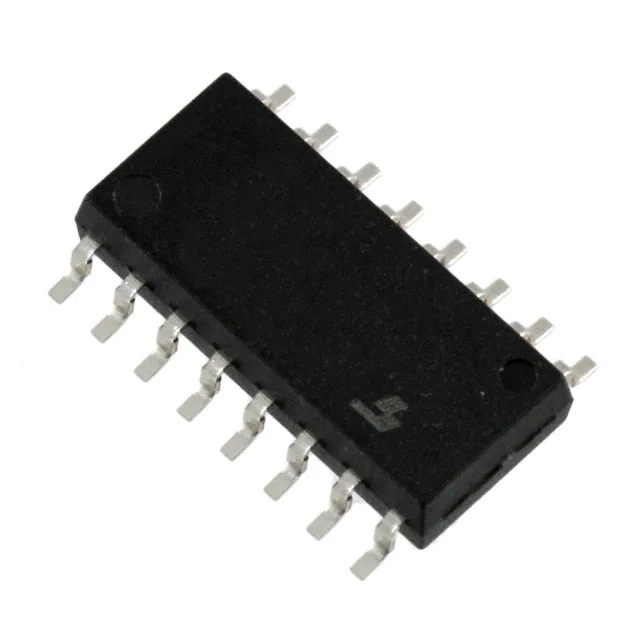

TLP291-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
80,072 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
PS2506L-1-F3-AOPTOISOLATOR 5KV DARL 4SMD |
6,416 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 200% @ 1mA | - | - | 100µs, 100µs | AC, DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
TLP291-4(TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
4,961 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
TLP291-4(GB,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
1,856 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tube | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
PS2565L-1-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
13,997 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
ACPL-224-500EOPTOISOLATOR 3KV 2CH TRANS 8SOIC |
5,460 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 2 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SO |
|
6N136OPTOISO 5.3KV TRANS W/BASE 8DIP |
5,636 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
PS2506L-1-AOPTOISOLATOR 5KV DARL 4SMD |
14,751 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 200% @ 1mA | - | - | 100µs, 100µs | AC, DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
CPC1001NTROPTOISOLATOR 1.5KV TRANS 4SMD |
120,276 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1500Vrms | 100% @ 200µA | 800% @ 200µA | 1µs, 30µs | - | DC | Transistor | 30V | - | 1.2V | 5 mA | 300mV | - | - | -40°C ~ 85°C | Surface Mount | 4-SOP (2.54mm) |
|
IS281-4GBOPTOISO 3.75KV 4CH TRANS |
20,898 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | - |
|
|
IS281-4OPTOISO 3.75KV 4CH TRANS |
13,645 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | - |
|
IS2801-4OPTOISO 3KV 4CH TRANS |
11,546 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3000Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | - |
|
|
TLP293-4(V4GBTPEOPTOISOLATOR 3.75KV TRANS SO16 |
11,535 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
