Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP293-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
9,335 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
6,134 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
FOD2712AR2OPTOISO 2.5KV TRANSISTOR 8SOIC |
5,323 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
TLP293-4(GB,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,918 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tube | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
3,730 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP290-4(TP,EOPTOISOLTR 2.5KV 4CH TRANS 16-SO |
2,348 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
TLP290-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
476 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|

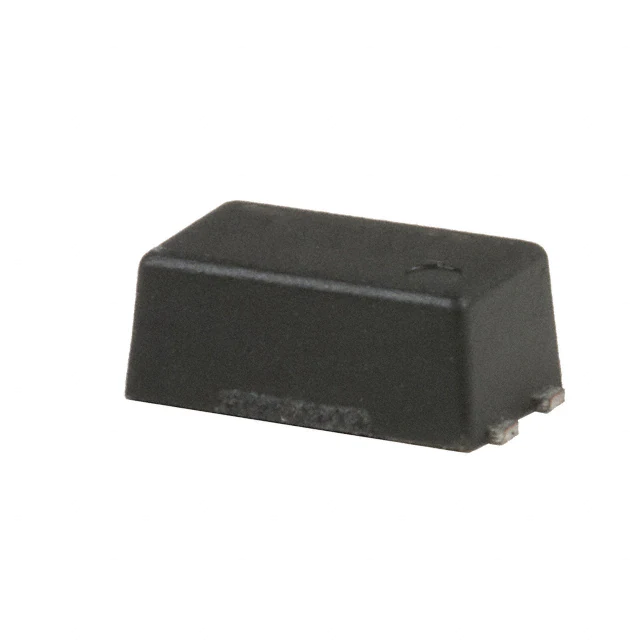

APV2111VYOPTOISO 1.5KV PHOTOVOLTAIC 4SSOP |
9,146 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 1500Vrms | - | - | 800µs, 100µs | - | DC | Photovoltaic | 8.2V | 8µA | 1.15V | 50 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 4-SSOP |
|
6N139-000EOPTOISO 3.75KV DARL W/BASE 8DIP |
9,837 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
FODM8801CR2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
7,055 |
|
Datasheet |
OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 1mA | 400% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
|
TLP292-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
43,953 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTR,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,772 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
781 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
6N136SDMOPTOISO 5KV TRANS W/BASE 8SMD |
3,567 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
6N136-000EOPTOISO 3.75KV TRANS W/BASE 8DIP |
6,176 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
TLP3905(TPR,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
2,874 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PS2501-4XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
1,768 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tube | Active | 4 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
TLP3905(TPL,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
384 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PC452J00000FOPTOISOLATOR 3.75KV DARL 4SMD |
20,880 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
ILD256TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
3,406 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | 2 | 4000Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
Transistor, Photovoltaic Output Optoisolators Electronic Components
Explore Transistor, Photovoltaic Output Optoisolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
