Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOCD213R2MOPTOISO 2.5KV 2CH TRANS 8SOIC |
11,756 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2500Vrms | 100% @ 10mA | - | 7.5µs, 5.7µs | 1.6µs, 2.2µs | DC | Transistor | 70V | 150mA | 1.25V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
FOD852SDOPTOISOLATOR 5KV DARLINGTON 4SMD |
24,379 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
ACPL-227-500EOPTOISOLATOR 3KV 2CH TRANS 8SOIC |
22,901 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 2 | 3000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SO |
|
|
ACPL-227-50BEOPTOISOLATOR 3KV 2CH TRANS 8-SO |
17,229 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 2 | 3000Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SO |
|
MCT9001SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
10,917 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2.4µs, 2.4µs | DC | Transistor | 55V | 30mA | 1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|

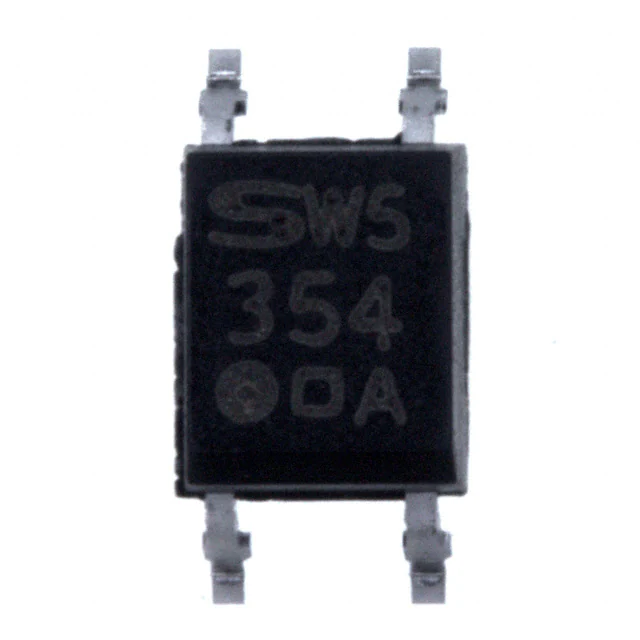

PC354N1J000FOPTOISOLATOR 3.75KV TRANS 4-SMD |
20,701 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
SFH619AOPTOISOLATOR 5.3KV DARL 4DIP |
6,893 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 1000% @ 1mA | - | 4.5µs, 29µs | 3.5µs, 14.5µs | DC | Darlington | 300V | 125mA | 1.2V | 60 mA | 1.2V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
MCT62SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
13,790 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5000Vrms | 100% @ 5mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
6N136MOPTOISO 5KV TRANS W/BASE 8DIP |
3,686 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
ELD207(TA)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
30,461 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
.JPG)
|
TLP109(TPL,EOPTOISO 3.75KV TRANS 6-SO 5 LEAD |
7,541 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | - | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 8mA | 1.64V | 20 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
MOCD223MOPTOISOLTR 2.5KV 2CH DARL 8SOIC |
5,270 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2500Vrms | 500% @ 1mA | - | 10µs, 125µs | 8µs, 110µs | DC | Darlington | 30V | 150mA | 1.25V | 60 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
LTV-247OPTOISO 3.75KV 4CH TRANS 16SO |
153,573 |
|
Datasheet |
LTV-2X7 | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
SFH628A-3X001OPTOISOLATOR 5.3KV TRANS 4DIP |
3,942 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | AC, DC | Transistor | 55V | 50mA | 1.1V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
FOD8523SDOPTOISOLATOR 5KV DARLINGTON 4SMD |
4,178 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 100µs, 20µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PS2815-1-F3-AOPTOISOLATOR 2.5KV TRANS 4-SSOP |
2,497 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | AC, DC | Transistor | 40V | 40mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
ILD207TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
10,991 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
ILD213TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
8,889 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 100% @ 10mA | - | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
ILD205TOPTOISO 4KV 2CH TRANS 8SOIC |
3,889 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 40% @ 10mA | 80% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
ILD206TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
3,331 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 63% @ 10mA | 125% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
