Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3H710NIP1HOPTOISOLATOR TRANSISTOR SMD |
33,640 |
|
Datasheet |
PC3H71 | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 500µA | 700% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 500µA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PS2811-1-F3-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
2,930 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | DC | Transistor | 40V | 40mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
MOCD217R2MOPTOISO 2.5KV 2CH TRANS 8SOIC |
52,927 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2500Vrms | 100% @ 1mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 30V | 150mA | 1.05V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PC367NJ0000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
27,320 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
SFH691ATOPTOISOLATOR 3.75KV TRANS 4-SOP |
8,676 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
TLP187(TPL,EOPTOISO 3.75KV DARL 6-SO, 4 LEAD |
20,044 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|

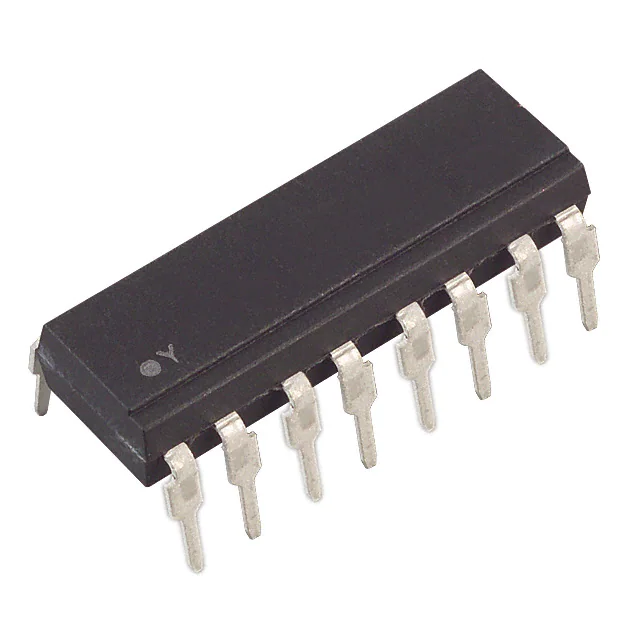

LTV-846OPTOISOLTR 5KV 4CH TRANS 16-DIP |
19,413 |
|
Datasheet |
LTV-846 | 16-DIP (0.300", 7.62mm) | Tube | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
|
|
LTV-847OPTOISOLTR 5KV 4CH TRANS 16-DIP |
5,172 |
|
Datasheet |
LTV-8x7 | 16-DIP (0.300", 7.62mm) | Tube | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Through Hole | 16-DIP |
|
VOD205TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
4,013 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
PS2805C-1-F3-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
3,734 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 10µs, 7µs | 5µs, 7µs | AC, DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
LTV-846SOPTOISOLTR 5KV 4CH TRANS 16-SMD |
113,091 |
|
Datasheet |
LTV-846 | 16-SMD, Gull Wing | Tube | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 16-SMD |
|
|
MOCD207R2MOPTOISO 2.5KV 2CH TRANS 8SOIC |
54,482 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 70V | 150mA | 1.25V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
LTV-847SOPTOISOLTR 5KV 4CH TRANS 16-SMD |
40,152 |
|
Datasheet |
LTV-8x7 | 16-SMD, Gull Wing | Tube | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Surface Mount | 16-SMD |
|
|
LTV-845OPTOISO 5KV 4CH DARLINGTON 16DIP |
12,321 |
|
Datasheet |
LTV-8x5 | 16-DIP (0.300", 7.62mm) | Tube | Active | 4 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 16-DIP |
|
MCT6OPTOISOLATOR 5KV 2CH TRANS 8-DIP |
10,736 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|

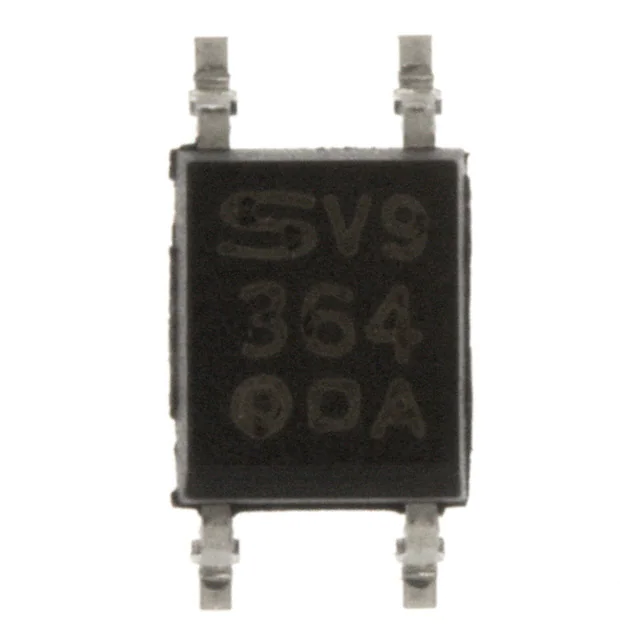

PC364NJ0000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
12,289 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
VOD213TOPTOISOLATOR 4KV 2CH TRANS 8SOIC |
37,078 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 100% @ 10mA | - | 5µs, 4µs | 5µs, 4µs | DC | Transistor | 70V | 50mA | 1.2V | 30 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
H11AA4SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
3,534 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
MOCD217MOPTOISO 2.5KV 2CH TRANS 8SOIC |
6,500 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2500Vrms | 100% @ 1mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 30V | 150mA | 1.05V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PC365NJ0000FOPTOISO 3.75KV DARL 4-MINI-FLAT |
16,315 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
