Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

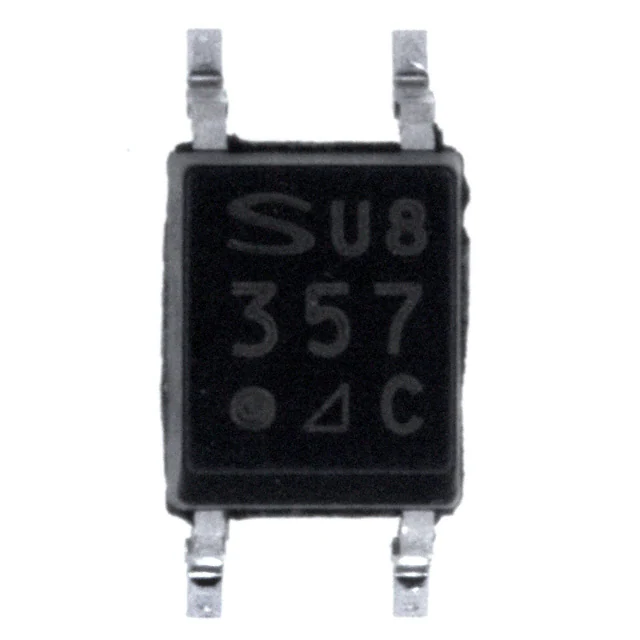

PC357N3J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
55,101 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
PC357N4J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
18,501 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

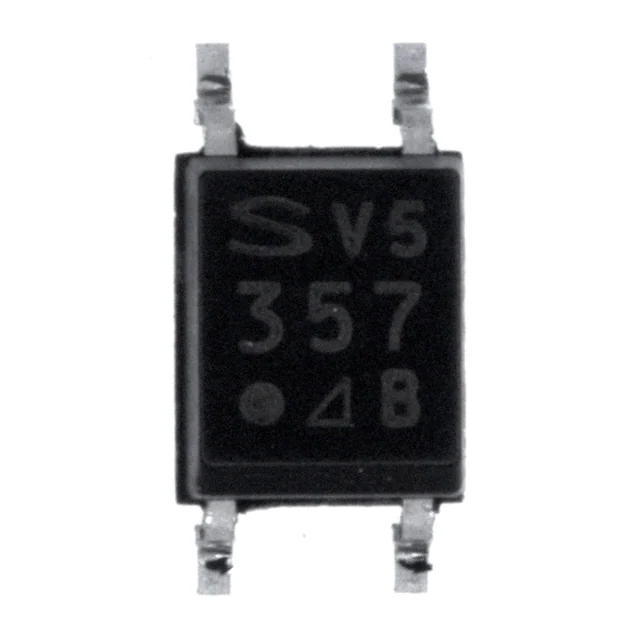

PC357N2J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
170,546 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
TLP188(TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
7,264 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|
VOL628A-3TOPTOISOLATOR 5KV TRANS LSOP-4 |
3,832 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
MOC217R2MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
2,597 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.07V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PS2501L-1-AOPTOISOLATOR 5KV TRANS 4SMD |
55,839 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tube | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
IS127OPTOISO 3.75KV DARL MINI-FLAT |
16,244 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 4µs, 3µs | DC | Darlington | 300V | - | 1.2V | 50 mA | 1.2V | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
MOC207R2MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
18,064 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PS2505L-1-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
13,696 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
.jpg)
|
PS2705-1-F3-AOPTOISOLATOR 3.75KV TRANS 4SMD |
2,574 |
|
- |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Not For New Designs | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 40V | 80mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
PS2702-1-F3-AOPTOISOLATOR 3.75KV DARL 4SMD |
52,554 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 200mA | 1.1V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
H11AA1SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
37,170 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
PS2561DL-1Y-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
14,079 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
MCT62SOPTOISO 5KV 2CH TRANSISTOR 8SMD |
7,814 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 5000Vrms | 100% @ 5mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
SFH6206-2TOPTOISOLATOR 5.3KV TRANS 4-SMD |
33,118 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6206-3TOPTOISOLATOR 5.3KV TRANS 4-SMD |
7,688 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
PS2703-1-F3-AOPTOISOLATOR 3.75KV TRANS 4SMD |
17,453 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 400% @ 5mA | - | 10µs, 10µs | DC | Transistor | 120V | 30mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
PS2701A-1-F3-AOPTOISOLATOR 3.75KV TRANS 4SMD |
8,529 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | - | 5µs, 7µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
PC367N2J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
50,219 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
