Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS2533L-1-F3-AOPTOISOLATOR 5KV DARL 4SMD |
12,254 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1500% @ 1mA | 6500% @ 1mA | - | 100µs, 100µs | DC | Darlington | 350V | 150mA | 1.15V | 80 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
TLP3906(TPL,EOPTOISO 3.75KV PHVOLT SO6 |
24,367 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 200µs, 300µs | - | DC | Photovoltaic | 7V | 12µA | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
ILD223TOPTOISO 4KV 2CH DARLINGTON 8SOIC |
13,900 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 500% @ 1mA | - | 15µs, 30µs (Min) | - | DC | Darlington | 30V | - | 1.3V (Max) | - | 1V | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
|
TCMT4100OPTOISO 3.75KV 4CH TRANS 16-SOP |
39,431 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Surface Mount | 16-SOP |
|
CPC1303GRTROPTOISOLATOR 5KV TRANSISTOR 4SMD |
5,061 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 200% @ 200µA | 2500% @ 200µA | 2µs, 8µs | - | DC | Transistor | 30V | - | 1.2V | 50 mA | 500mV | - | - | -40°C ~ 85°C | Surface Mount | 4-SMD |
|
|
TCMT4100T0OPTOISO 3.75KV 4CH TRANS 16SOP |
16,692 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Surface Mount | 16-SOP |
|
CNY17-4S-TA1OPTOISO 5KV TRANS W/BASE 6SMD |
6,400 |
|
Datasheet |
CNY17 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.45V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
APV1121SXOPTOISO 2.5KV PHOTOVOLTAIC 4-SOP |
673 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 2500Vrms | - | - | 400µs, 100µs | - | DC | Photovoltaic | 8.7V | 14µA | 1.15V | 50 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 4-SOP |
|
ACPL-847-300EOPTOISOLTR 5KV 4CH TRANS 16-SMD |
8,371 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tube | Active | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 16-SMD |
|
IS2805-4OPTOCOUPLER 3.75KV 4CH 16SOIC |
16,630 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 3µs, 4µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SOIC |
|
PS2533-1-AOPTOISOLATOR 5KV DARL 4DIP |
6,907 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 1500% @ 1mA | 6500% @ 1mA | - | 100µs, 100µs | DC | Darlington | 350V | 150mA | 1.15V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|

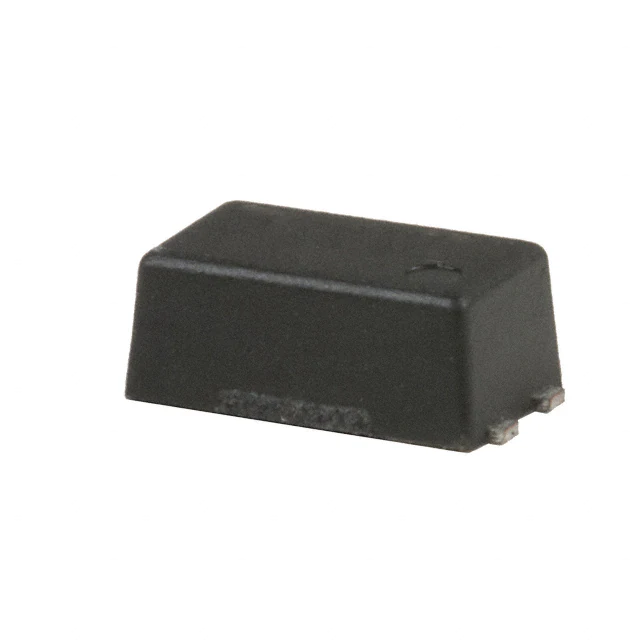

PS2911-1-F3-AXOPTOISOLATOR 2.5KV TRANS 4-SMD |
3,293 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | 40µs, 120µs | 5µs, 10µs | DC | Transistor | 40V | 40mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
HCPL-0500-000EOPTOISO 3.75KV TRANS W/BASE 8SO |
6,079 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 3750Vrms | 5% @ 16mA | - | 200ns, 1.3µs | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO |
|
FODM8801CR2VOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,494 |
|
Datasheet |
OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 1mA | 400% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
|
PS2705A-1-AOPTOISOLATOR 3.75KV TRANS 4SMD |
19,660 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Strip | Not For New Designs | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | - | 5µs, 7µs | AC, DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
PS2533L-1-AOPTOISOLATOR 5KV DARL 4SMD |
2,126 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 1500% @ 1mA | 6500% @ 1mA | - | 100µs, 100µs | DC | Darlington | 350V | 150mA | 1.15V | 80 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
ACPL-247-500EOPTOISO 3KV 4CH TRANS 16SOIC |
18,842 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
HCPL2731MOPTOISO 5KV 2CH DARLINGTON 8DIP |
607 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 500% @ 1.6mA | - | - | - | DC | Darlington | 18V | 60mA | 1.3V | 20 mA | - | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
PS2913-1-F3-AXOPTOISOLATOR 2.5KV TRANS 4SMD |
15,708 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 2500Vrms | 50% @ 1mA | 200% @ 1mA | 80µs, 50µs | 10µs, 10µs | DC | Transistor | 120V | 30mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
APV2111VWOPTOCOUPLER PHOTOVO 4SSOP |
8,064 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 1 | 1500Vrms | - | - | 800µs, 100µs | - | DC | Photovoltaic | 8.2V | 8µA | 1.15V | 50 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 4-SSOP |
