Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TLP291(BLL-TP,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
15,819 |
|
Datasheet |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
TLP291(GB,SEOPTOISOLATOR 3.75KV TRANS 4-SO |
1,578 |
|
Datasheet |
- | 4-SOIC (0.179", 4.55mm Width) | Tube | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
LTV-217-C-GOPTOISOLATOR 3.75KV TRANS 4-SSOP |
19,872 |
|
Datasheet |
LTV-2X7 | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SSOP |
|
FOD817DSDOPTOISOLATOR 5KV TRANSISTOR 4SMD |
18,347 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-PDIP-GW |
|
EL3H7(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
267,738 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SSOP |
|
LTV-814S-TA1OPTOISOLATR 5KV TRANSISTOR 4-SMD |
182,756 |
|
Datasheet |
LTV-8x4 | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Surface Mount | 4-SMD |
|
TLP183(BL-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
177,651 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP293(GB-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
82,926 |
|
Datasheet |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
|
TLP183(GB-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
77,311 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP183(TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
56,470 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP293(GR-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
41,873 |
|
Datasheet |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
|
TLP293(BL-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
20,544 |
|
Datasheet |
- | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
.jpg)
|
LTV-355TOPTOISO 3.75KV DARLINGTON 4SOP |
98,696 |
|
Datasheet |
LTV-355T | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|

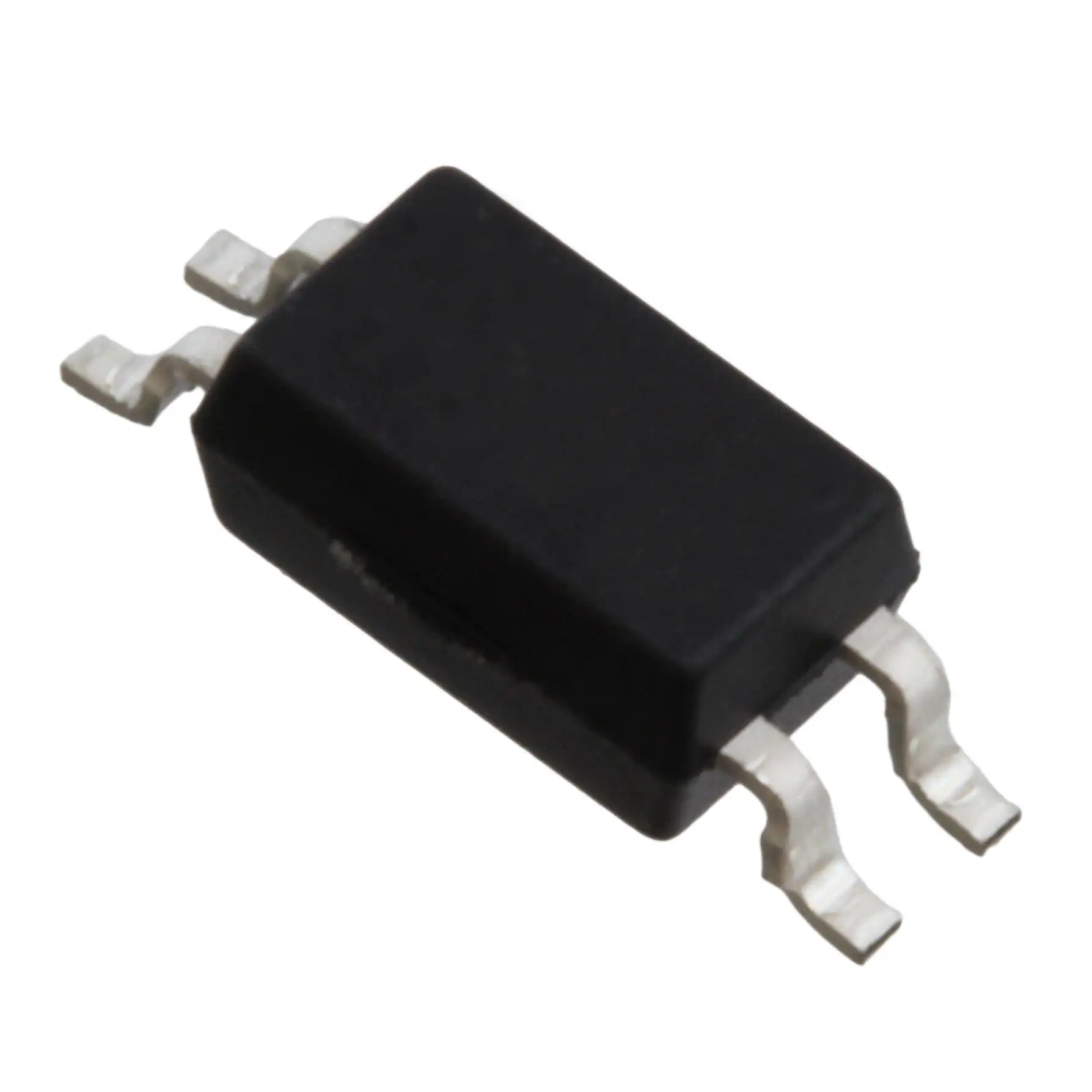

VOS617A-4TOPTOISOLATOR 3.75KV TRANS 4SSOP |
66,240 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.18V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SSOP |
|
SFH6156-2TOPTOISOLATOR 5.3KV TRANS 4-SMD |
46,176 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
VOS618A-3TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
39,934 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 5µs, 8µs | 5µs, 7µs | DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SSOP |
|
|
VOS618A-3X001TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
31,183 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 5µs, 8µs | 5µs, 7µs | DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SSOP |
|
LTV-827SOPTOISOLATOR 5KV 2CH TRANS 8-SMD |
27,450 |
|
Datasheet |
LTV-8x7 | 8-SMD, Gull Wing | Tube | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Surface Mount | 8-SMD |
|
|
VOS617A-3TOPTOISOLATOR 3.75KV TRANS 4-SSOP |
19,907 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.18V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
HCPL-817-500EOPTOISOLATOR 5KV TRANSISTOR 4SMD |
19,017 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | - |
