Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
D3V-11-2A5-KSWITCH SNAP ACT SPST-NC 11A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NC | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
V-161-1C6(R)SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V15H16-CZ300A05-KSWITCH SNAP ACTION SPDT 16A 250V |
1,117 |
|
Datasheet |
V15 | Tray | Obsolete | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 350gf | 60gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|
V15T16-CZ100A05-KSWITCH SNAP ACTION SPDT 16A 250V |
581 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
V15T16-EZ200A06-KSWITCH SNAP ACTION SPDT 16A 250V |
290 |
|
Datasheet |
V15 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
MS0850502F025S1ASWITCH SNAP ACTION SPDT 5A 125V |
174 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 12gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
MS105A0101HSWITCH SNAP ACTION SPDT 5A 125V |
2,421 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 65gf | - | 0.370" (9.4mm) | 0.118" (3.0mm) | - | 0.039" (1.0mm) | -40°C ~ 85°C |
|
D3V-64-3C4SWITCH SNAP ACT SPST-NO 6A 250V |
244 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V7-1C29D8SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
JJOV0UL650NONPRBKSWITCH DETECT SPST-NO 0.001A 5V |
188 |
|
Datasheet |
JJO | Bulk | Obsolete | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Chassis Mount | Solder Lug | - | - | 40gf | - | 0.240" (6.1mm) | 0.015" (0.4mm) | - | - | -40°C ~ 85°C |
|
ZMA03A150S06PCSWITCH SNAP ACTION SPDT 3A 125V |
449 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 49gf | 11gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
MBD5ASWITCH SNAP ACT SPST-NO 10A 250V |
0 |
|
- |
MB | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 274gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
83263814SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V3D | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 31gf | 6.118gf | 0.606" (15.4mm) | - | 0.050" (1.3mm) | 0.130" (3.3mm) | -20°C ~ 125°C |
|
LCA10150P00QCSWITCH SNAP ACTION SPDT 10A 125V |
396 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
|
ZM10E60E01SWITCH SNAP ACT SPDT 0.1A 125V |
800 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | - | - | - | - | - | - | -40°C ~ 125°C |
|
|
ZM10E50B01SWITCH SNAP ACT SPDT 100MA 125V |
0 |
|
Datasheet |
ZM | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 10gf | 0.465" (11.8mm) | 0.140" (3.6mm) | 0.032" (0.81mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
MBG5B1SWITCH SNAP ACT SPST-NO 10A 250V |
0 |
|
- |
MB | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 85gf | - | 0.437" (11.1mm) | 0.197" (5.0mm) | 0.047" (1.2mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
D3V-6G1M-3C24-KSWITCH SNAP ACT SPST-NO 6A 250V |
196 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
D419-VGAMSWITCH SNAP ACTION MINI |
2,910 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

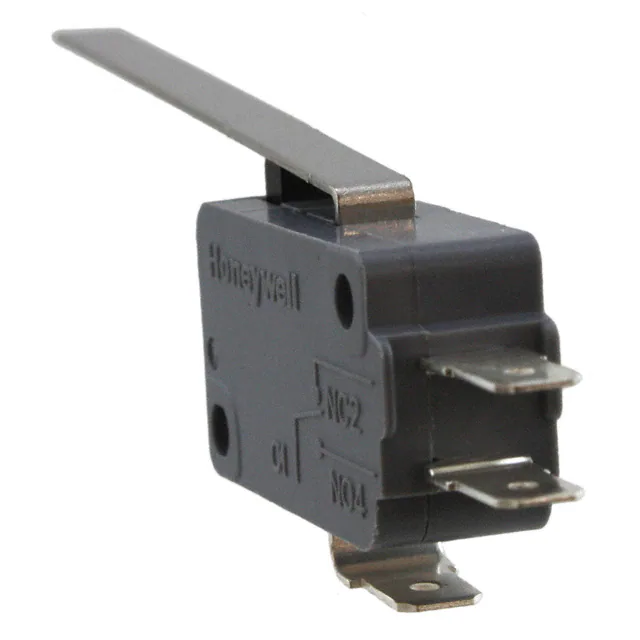

V15T16-EZ200A03-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -25°C ~ 125°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
