Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83170935SWITCH SNAP ACT SPDT 0.1A 250V |
826 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 41gf | 7.000gf | 0.571" (14.5mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
DGG3-E7RDSWITCH SNAP ACTION SPDT 50MA 30V |
891 |
|
Datasheet |
- | Bulk | Active | 3PDT | On-Off | 3A (AC) | 250 V | - | Lever, Roller | - | - | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|

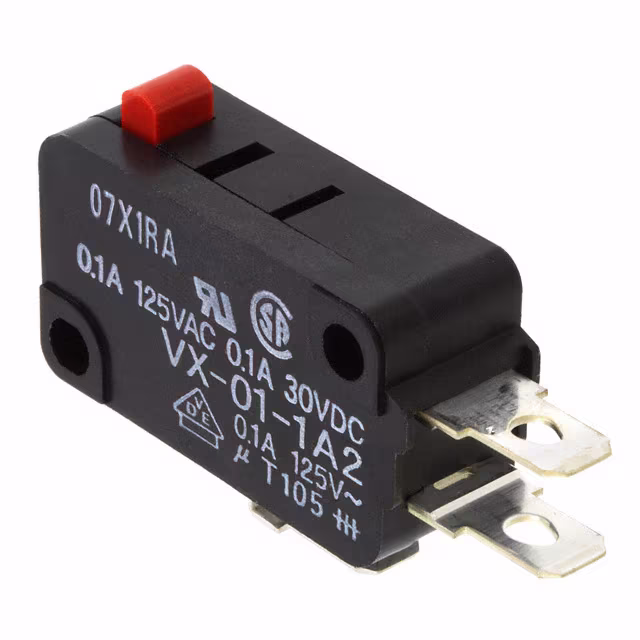

VX-01-1A2SWITCH SNAP ACT SPDT 0.1A 125V |
101 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
E3102AAPAEXSWITCH DETECTOR SPST-NC 5A 250V |
489 |
|
Datasheet |
3100 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
D2SW-3L2DSWITCH SNAP ACTION SPDT 3A 125V |
486 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
C0055RBSWITCH SNP ACT SPST-NC 0.2A 250V |
322 |
|
Datasheet |
0055 | Bulk | Active | SPST-NC | On-Mom | 200mA (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | - |
|
|
E3101AAPAEXSWITCH DETECTOR SPST-NO 5A 250V |
488 |
|
Datasheet |
3100 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
D2SW-01L3MSWITCH SNAP ACT SPDT 0.1A 125V |
163 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.421" (10.70mm) | - | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
D2SW-01M-0SWITCH SNAP ACTION SPDT 0.1A 30V |
457 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.025" (0.65mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
D2SW-3MSWITCH SNAP ACTION SPDT 3A 125V |
186 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
E3111AAWAEXSWITCH DETECTOR SPDT 5A 250V |
500 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111BAPAEXSWITCH DETECTOR SPDT 5A 250V |
500 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
.jpg)
|
D2SW-3L3-3MSSWITCH SNAP ACT SPST-NO 3A 125V |
174 |
|
Datasheet |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2HW-C273MRSSWITCH SNP ACT SPST-NO 0.1A 125V |
239 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
D2VW-5L2A-1SWITCH SNAP ACTION SPDT 5A 125V |
170 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
E3111CAPAEXSWITCH DETECTOR SPDT 5A 250V |
500 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
D2RVSWITCH SNAP SPST-NO 0.25A 100V |
151 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | - | 0.567" (14.4mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -10°C ~ 60°C |
|
BZ-2RSWITCH SNAP ACTION SPDT 15A 125V |
191 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
J-7-V4SWITCH SNAP ACTION SPDT 7A 250V |
641 |
|
Datasheet |
J | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | IP40 | - | 20gf | 3.059gf | 0.328" (8.3mm) | 0.178" (4.5mm) | 0.047" (1.2mm) | 0.030" (0.76mm) | -10°C ~ 80°C |
|

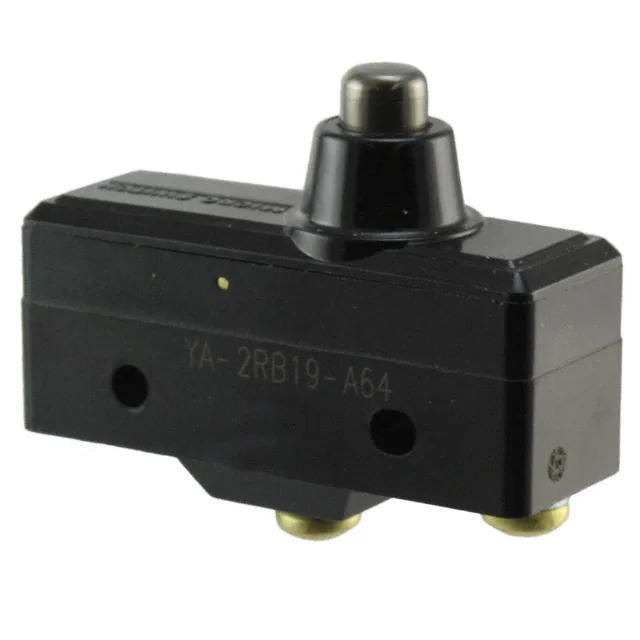

YA-2RB19-A64SWITCH SNAP ACT SPST-NO 20A 125V |
199 |
|
Datasheet |
YA | Bulk | Active | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
