Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLSZLS0213PBLS Z SLOW ACT ROLLER LEVER 4A 2 |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-On | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZLS1115PBLS Z SLOW ADJ. ROD 4A 1 NO + 1 N |
60 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Off, Off-On | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS1111PBLS Z SNAP ROLLER LEVER V2 4A 1 N |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS0211PBLS Z SNAP ROLLER LEVER V2 4A 2NC |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSTLS1115PBLS T SLOW ADJ. ROD 4A 1 NO + 1 N |
60 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Off, Off-On | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZLS1113PBLS Z SLOW ROLLER LEVER 4A 1 NO + |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Off, Off-On | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS1115PBLS Z SNAP ADJ. ROD 4A 1NO + 1NC |
60 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS0215PBLS Z SNAP ADJ. ROD 4A 2NC |
60 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS1113PBLS Z SNAP ADJ.ROLLER LEVER 4A 1N |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS0213PBLS Z SNAP ADJ.ROLLER LEVER 4A 2 |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
3MN19SWITCH SNAP ACTION SPDT 15A 120V |
196 |
|
Datasheet |
MN | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 312gf | 113gf | 0.122" (3.1mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | 0.080" (2.03mm) | -55°C ~ 85°C |
|

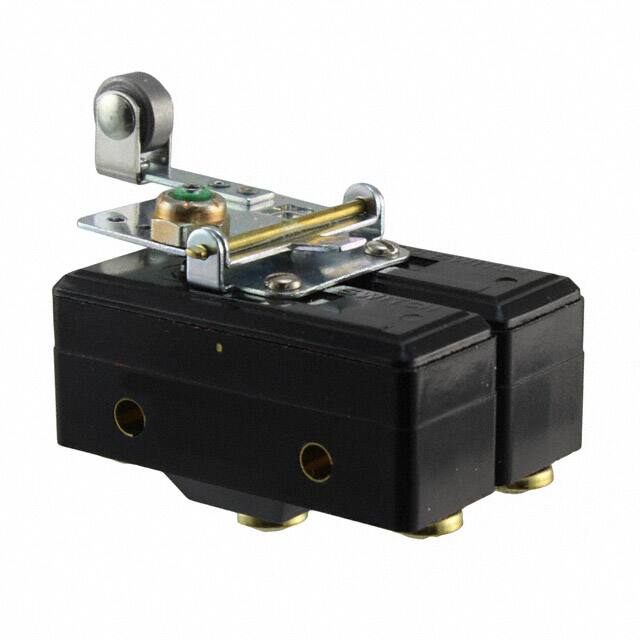

6AS36SWITCH SNAP ACT SPDTX2 15A 125V |
37 |
|
Datasheet |
AS | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 227gf | 14gf | 1.172" (29.8mm) | - | 0.110" (2.8mm) | 0.020" (0.5mm) | -55°C ~ 85°C |
|
GLAC20CSWITCH SNAP ACTION DPDT 6A 120V |
30 |
|
Datasheet |
GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.890" (48.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|
1CH28SWITCH SNAP ACTION SPDT 4A 28V |
30 |
|
- |
CH | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Cable Leads | - | Sealed | 2722 ~ 5443gf | 1814gf | - | - | 0.020" (0.5mm) | 0.250" (6.35mm) | - |
|
|
V15S05-1EZ050-K01SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|

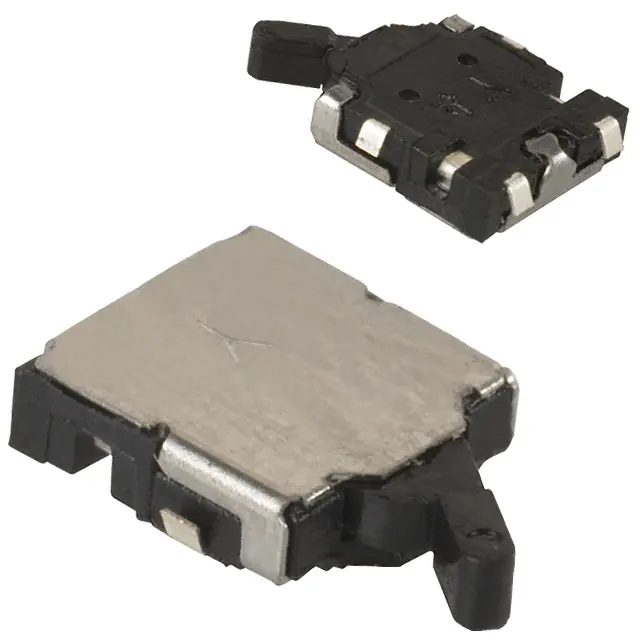

ESE-18LJ01SWITCH DETECTOR SPST-NO 0.01A 5V |
2,488 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

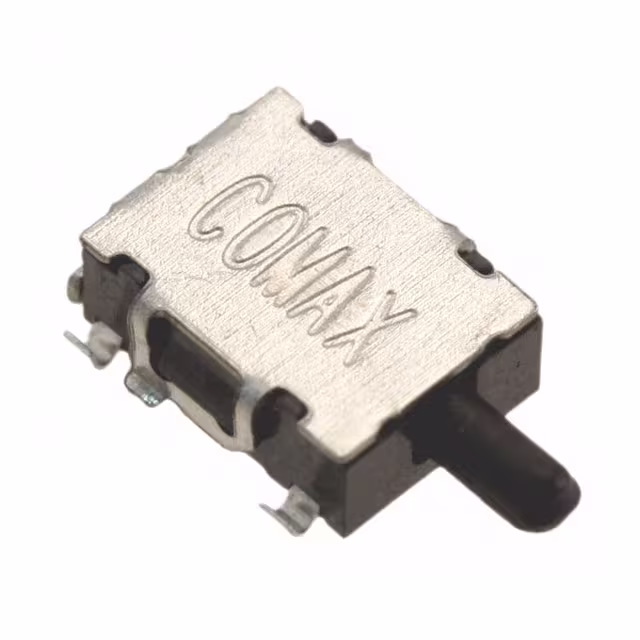

DS-180 RTSWITCH DETECTOR SPST-NO 1MA 5V |
2,709 |
|
Datasheet |
DS, COMAX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide | 60gf | - | 0.148" (3.75mm) | 0.018" (0.45mm) | - | - | - |
|
|
D3C 1001RSubminiature Basic Switch |
4,119 |
|
Datasheet |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZMA00A080P00PCSWITCH SNAP ACT SPDT 100MA 125V |
1,669 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
MS-118305-GSWITCH SNAP ACT SPDT 100MA 30V |
2,732 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | 5.000gf | 0.283" (7.2mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | - |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
