Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V19S05-EZ100SWITCH SNAP ACTION SPDT 5A 125V |
1,189 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
ZM50B10A01SWITCH SNAP ACTION SPDT 5A 125V |
18,777 |
|
Datasheet |
ZM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 60gf | 8.000gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
SS-01GLPBSWITCH SNAP ACT SPDT 0.1A 125V |
469 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
V15T16-CP200-KSWITCH SNAP ACT SPST-NO 16A 250V |
1,089 |
|
Datasheet |
V15 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
V15T16-CC100-KSWITCH SNAP ACT SPST-NC 16A 250V |
790 |
|
Datasheet |
V15 | Tray | Active | SPST-NC | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
D453-Q1LD-G2SWITCH SNAP ACTION |
18,100 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZX40C30A01SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZX | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 90gf | 15gf | 0.276" (7.0mm) | 0.051" (1.3mm) | 0.012" (0.3mm) | 0.008" (0.2mm) | -40°C ~ 120°C |
|
|
83274022SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 16gf | 3.059gf | 0.394" (10.0mm) | - | 0.020" (0.5mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
ESE-18L61ASWITCH DETECTOR SPST-NC 0.01A 5V |
1,748 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
V19S05-V3Z025A02SWITCH SNAP ACTION SPDT 5A 125V |
201 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | PC Pin | IP40 | - | 15gf | 3.000gf | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.080" (2.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
|
ZM10B10A01SWITCH SNAP ACT SPDT 100MA 125V |
19,446 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 60gf | 8.000gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
SS0750301F040V1ASWITCH SNAP ACTION SPDT 3A 125V |
1,920 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
.jpg)
|
D3V-6G-1C4-KSWITCH SNAP ACTION SPDT 6A 250V |
122 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
ZM50E50A01SWITCH SNAP ACTION SPDT 5A 125V |
5,550 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | - | 146gf | 35gf | - | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
1478670-1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 12gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1-1478601-2SP6DTBNLE MICRO SWITCH. NORM LEV |
569 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D459-P4AASNAP ACTION SWITCH |
3,995 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

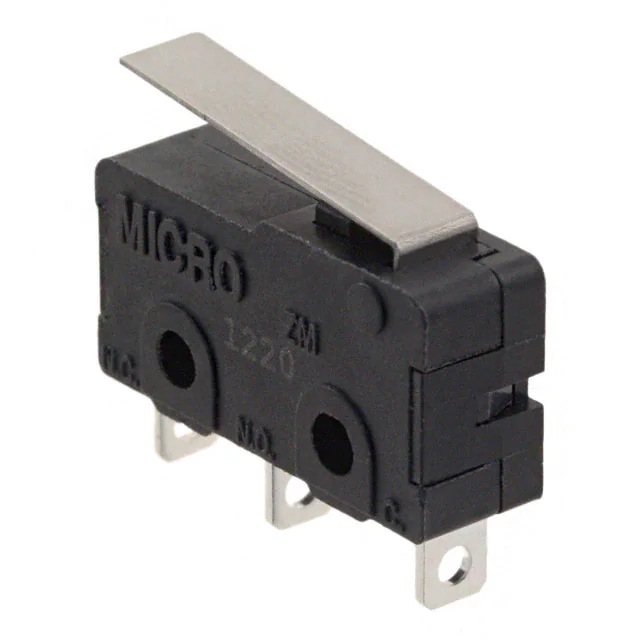

ZM50D10B01SWITCH SNAP ACTION SPDT 5A 125V |
904 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 6.000gf | 0.465" (11.8mm) | 0.140" (3.6mm) | 0.032" (0.81mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
V15T22-EC200SWITCH SNAP ACT SPST-NC 22A 250V |
645 |
|
Datasheet |
V15 | Bulk | Active | SPST-NC | On-Mom | 22A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
DJ1G-ANA0SWITCH SNAP ACTION SPDT 2A 12V |
5,802 |
|
- |
DJ | Bulk | Active | SPDT | On-Mom | 2A (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | - | 0.136" (3.45mm) | - | - | - | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
