Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2R-P4SWITCH SNAP ACTION SPDT 15A 125V |
382 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 624gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
11SX1-TSWITCH SNAP ACTION SPDT 3A 250V |
200 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 99gf | 21gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
BZ-2RDSWITCH SNAP ACTION SPDT 15A 125V |
198 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
BA-2RB-A2SWITCH SNAP ACTION SPDT 20A 125V |
185 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
8626SWITCH SNAP ACTION SPST-NO 4.6A |
159 |
|
Datasheet |
- | Bulk | Active | SPST-NO | On-Mom | 4.6A (AC) | - | 12 V | - | Panel Mount | Quick Connect | - | - | - | - | - | - | - | - | - |
|
BZ-2RSSWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Solder Lug | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|

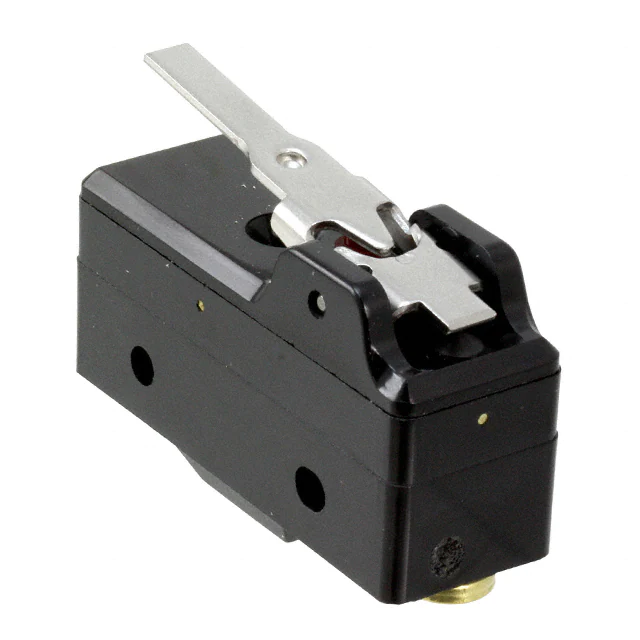

BA-1RV111-A2SWITCH SNAP ACTION SPDT 20A 125V |
200 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 300mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 99gf | 28gf | 0.750" (19.1mm) | 0.290" (7.4mm) | 0.025" (0.6mm) | 0.062" (1.6mm) | -55°C ~ 85°C |
|
BZ-2RL2-A2SWITCH SNAP ACTION SPDT 15A 125V |
198 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 141gf | 14gf | 1.125" (28.6mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
17SX21-TSWITCH SNAP ACTION SPDT 5A 115V |
600 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
BZ-2RQ1TSWITCH SNAP ACTION SPDT 15A 125V |
198 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
12SX22SWITCH SNAP ACTION SPDT 1A 125V |
200 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
BZ-RMXSWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | Reset Plunger on Bottom | - | - | 0.750" (19.1mm) | - | - | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
XCKN2145P20SWITCH SNAP ACTION DPST 3A 240V |
709 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
TLSZLS1104PDLS Z SLOW ROLLER CENTRAL M 4A 1N |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Off, Off-On | 4A (AC), 1A (DC) | 240 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 918gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
BZ-RX122SWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 198 ~ 283gf | - | 0.625" (15.9mm) | 0.015" (0.4mm) | - | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
TLSZNS0204PDLS Z SNAP ROLLER CENTRAL MOUNT 4 |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 918gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZNS1104PDLS Z SNAP ROLLER CENTRAL M 4A 1N |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 1A (DC) | 240 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 918gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZLS0211PBLS Z SLOW ROLLER LEVER V2 4A 2NC |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-On | 4A (AC), 1A (DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZLS1111PBLS Z SLOW ROLLER LEVER V2 4A 1 N |
72 |
|
Datasheet |
TLS | Box | Active | DPST-NO/NC | On-Off, Off-On | 4A (AC), 1A (DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
|
|
TLSZLS0215PBLS Z SLOW ADJ. ROD 4A 2NC |
60 |
|
Datasheet |
TLS | Box | Active | DPST-NC | On-On | 4A (AC), 1A (DC) | 240 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | 20gf | - | - | - | - | - | -30°C ~ 80°C |
