Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCP16DTE4S04SWITCH SNAP ACTION SPDT 16A 125V |
999 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | - | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.075" (1.9mm) | -40°C ~ 125°C |
|
|
HCP16DTE4L04SWITCH SNAP ACTION SPDT 16A 125V |
999 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | - | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.075" (1.9mm) | -40°C ~ 125°C |
|
|
HCP10DTD5L04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
HCP16DTD5L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 170gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
HCP16DTD5S04SWITCH SNAP ACTION SPDT 16A 125V |
994 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 220gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
D2FD-01L30-1HSWITCH SNAP ACT SPDT 0.1A 125V |
671 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP60 - Dust Tight | - | 66gf | 5.099gf | 0.445" (11.3mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -20°C ~ 70°C |
|
|
HCP16DTE3L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 50gf | - | 0.602" (15.3mm) | 0.366" (9.30mm) | 0.083" (2.1mm) | - | -40°C ~ 125°C |
|
|
HCP10DTE3L04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 50gf | - | 0.602" (15.3mm) | 0.366" (9.30mm) | 0.083" (2.1mm) | - | -40°C ~ 125°C |
|
|
HCP16DTE3S04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | - | 0.602" (15.3mm) | 0.366" (9.30mm) | 0.083" (2.1mm) | - | -40°C ~ 125°C |
|
|
HCP10DTE3S04SWITCH SNAP ACTION SPDT 10A 125V |
996 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | - | 0.602" (15.3mm) | 0.366" (9.30mm) | 0.083" (2.1mm) | - | -40°C ~ 125°C |
|
|
HCP20DTD0H04SWITCH SNAP ACTION SPDT 20A 125V |
991 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 300gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
LCS012P00WA26AYSWITCH SNAP SPST-NO 100MA 125V |
1,697 |
|
Datasheet |
LCS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 85°C |
|

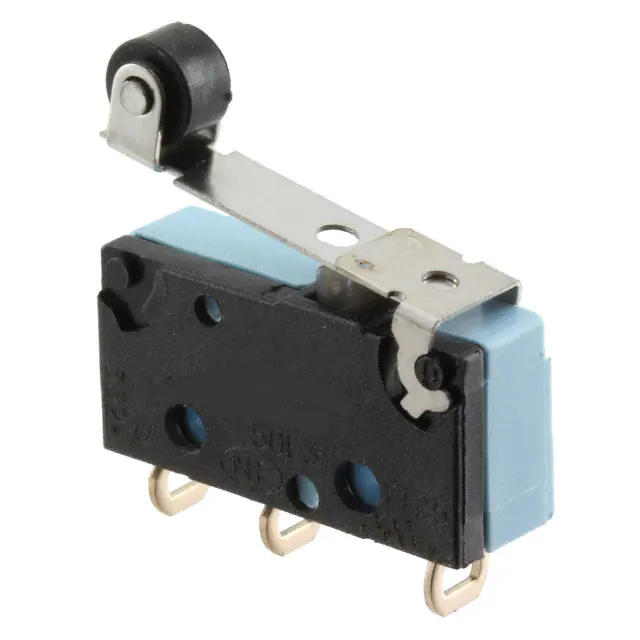

X0230765SWITCH SNAP ACTION SPDT 10A 250V |
349 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 102gf | 20gf | 0.571" (14.5mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
|
HCP16DTE5S04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 220gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
HCP16DTE5L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
HCP10DTE5S04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 220gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
HCP20DTD1H04SWITCH SNAP ACTION SPDT 20A 125V |
500 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 290gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP20DTD2H04SWITCH SNAP ACTION SPDT 20A 125V |
500 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | - | 0.602" (15.3mm) | 0.234" (5.9mm) | 0.040" (1.0mm) | 0.047" (1.2mm) | -40°C ~ 125°C |
|
|
HCP20DTE0H04SWITCH SNAP ACTION SPDT 20A 125V |
500 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP20DTD4H04SWITCH SNAP ACTION SPDT 20A 125V |
498 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 175gf | - | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.075" (1.9mm) | -40°C ~ 125°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
