Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TD1250AF160QP1SWITCH DETECT SPST-NO 0.05A 16V |
470 |
|
Datasheet |
TD1250 | Bag | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
HCP10DTE5L04SWITCH SNAP ACTION SPDT 10A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | - | 0.815" (20.7mm) | 0.106" (2.7mm) | 0.018" (0.45mm) | 0.045" (1.1mm) | -40°C ~ 125°C |
|
SS-01GL1373-FTSWITCH SNAP ACTION SPDT |
495 |
|
Datasheet |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCP26DTD1Q04SWITCH SNAP ACTION SPDT 26A 125V |
500 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 26A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 340gf | - | 0.602" (15.3mm) | 0.110" (2.8mm) | 0.020" (0.5mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
SS-5D1SWITCH SNAP ACTION SPDT 5A 125V |
383 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
HCP26DTD2Q04SWITCH SNAP ACTION SPDT 26A 125V |
490 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 26A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 185gf | - | 0.602" (15.3mm) | 0.234" (5.9mm) | 0.040" (1.0mm) | 0.047" (1.2mm) | -40°C ~ 125°C |
|
SS-5GL1131DSWITCH SNAP ACTION SPDT 5A 125V |
350 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
HCP16DTD0L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP16DTD0S04SWITCH SNAP ACTION SPDT 16A 125V |
999 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP10DTD0S04SWITCH SNAP ACTION SPDT 10A 125V |
973 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
D2FD-2L0-1TSWITCH SNAP ACTION SPDT 2A 125V |
745 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP60 - Dust Tight | - | 204gf | 25gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
SS-5GLD2SWITCH SNAP ACTION SPDT 5A 125V |
364 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
SS-5GLD1SWITCH SNAP ACTION SPDT 5A 125V |
345 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V-15G2-1C24-KSWITCH SNAP ACTION SPDT 15A 250V |
255 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
SS-01GLD1SWITCH SNAP ACT SPDT 0.1A 125V |
144 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ASQMR17420ASWITCH SNAP ACT FAIL DETECT 16V |
948 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.280" (7.1mm) | - | - | 0.065" (1.7mm) | -40°C ~ 85°C |
|
|
HCP26DTE4Q04SWITCH SNAP ACTION SPDT 26A 125V |
500 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 26A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 205gf | - | 0.736" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.075" (1.9mm) | -40°C ~ 125°C |
|
|
HCP16DTE0L04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|
|
HCP16DTE0S04SWITCH SNAP ACTION SPDT 16A 125V |
1,000 |
|
Datasheet |
HCP | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | - | 0.579" (14.7mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 125°C |
|

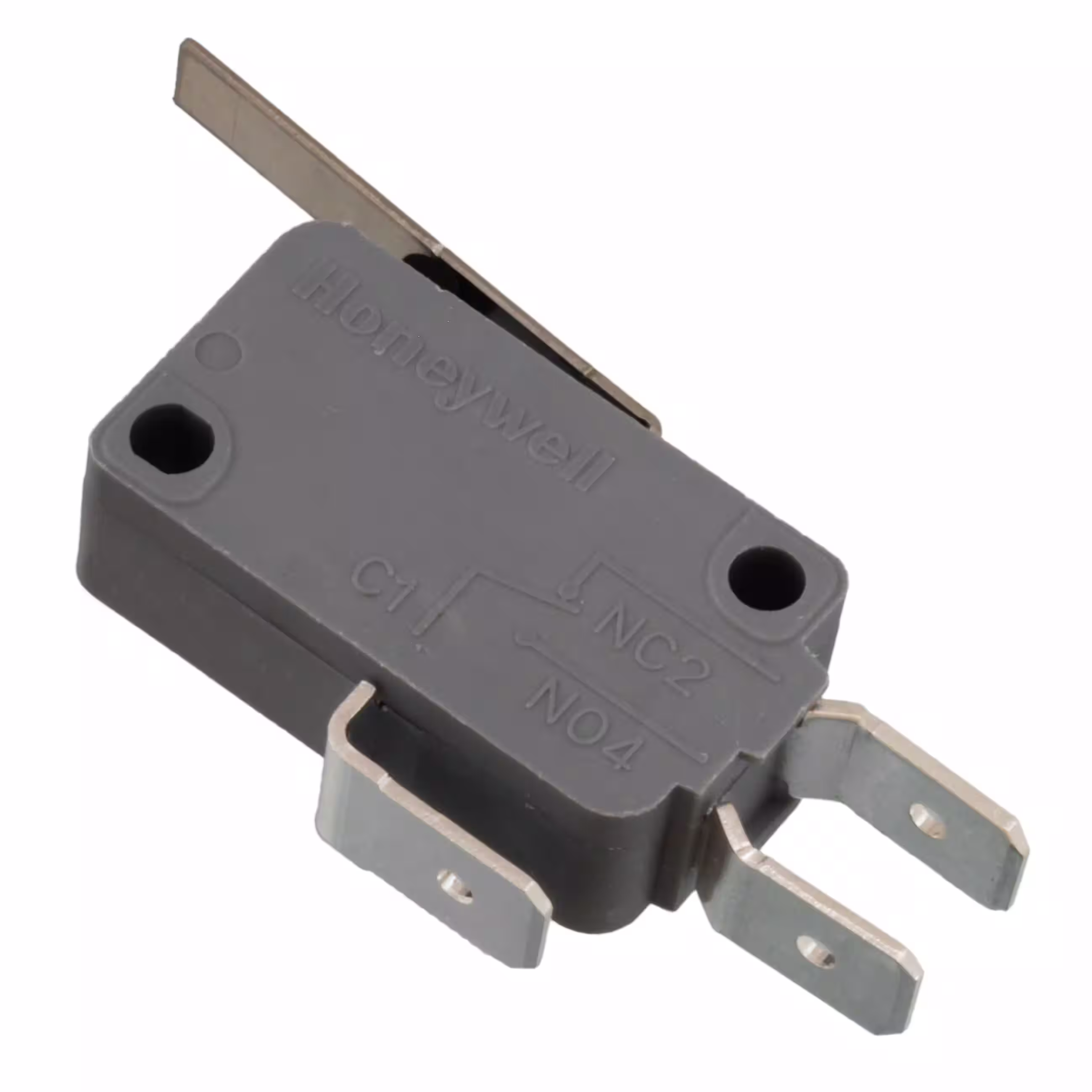

V15T16-CZ100A02SWITCH SNAP ACTION SPDT 16A 250V |
1,200 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
