Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1CH111SWITCH SEALED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BAF1-2RN4-RHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Manual Palm Button | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 907gf | 227gf | - | - | - | - | -32°C ~ 71°C |
|
|
BAF1-2RN4-LHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Manual Palm Button | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 907gf | 227gf | - | - | - | - | -32°C ~ 71°C |
|
|
445330470SWITCH SNAP ACTION 2NC/1NO FLAT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.454RFOOT SWITCHFL1U1RSUSTDCLRGD 1NO/ |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS3YDC1ASWITCH SNAP ACTION SPDT 10A 600V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 600 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 2.200" (55.9mm) | 0.070" (1.78mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
LSW6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
11CX12HMSWITCH LIMIT EXPLOSION PROOF |
0 |
|
Datasheet |
CX | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.465RFOOT SWITCHFL1SU2SUSTDCLRGD 2NO/ |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.176RFOOT SWITCHFS1U2RUSTDCLRGD 2NO/2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91CX2SWITCH SNAP ACT SPDTX2 15A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
51.209RFOOT SWITCHFS2U2(2X)STDCLR 2NO/2 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AEQ2789SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
Square D | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007CR61EDSWITCH LIMIT DPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Adjustable Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
LSYAC6B-4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
51.460RFOOT SWITCHFL1U1DU1USTDCLRGD 2X1 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

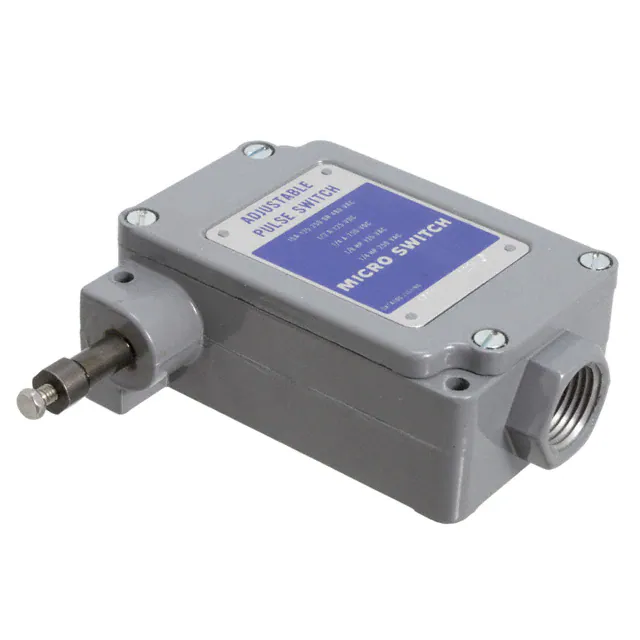

1PD1SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
PD | Bulk | Discontinued at Digi-Key | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Adjustable Plunger | Chassis Mount | Screw Terminal | - | Sealed | 1588gf | - | - | 0.110" (2.8mm) | - | - | - |
|
|
LSF5ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Plug In | - | Status Indicator | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
3SE03AT36PCSWITCH LIMIT ROLLER TOP PLUNGER |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Roller Plunger | Chassis Mount | Connector | - | - | - | - | - | - | - | - | - |
|
|
612.1035.986SWITCH LIMIT PNP 0.2A 12V |
0 |
|
Datasheet |
GC | Bulk | Active | Transistor Output, PNP | - | 200mA (DC) | - | 12 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
