Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 34gfm | - | - | 55° | - | - | -29°C ~ 71°C |
|
11LS1SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC) | 125 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 23° | 23° | 16° | 23° | -29°C ~ 71°C |
|
D5A-9511SWITCH SNAP ACTION PNP SLD ST |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 400gf | - | 0.600" (15.2mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.158" (4.0mm) | -20°C ~ 75°C |
|

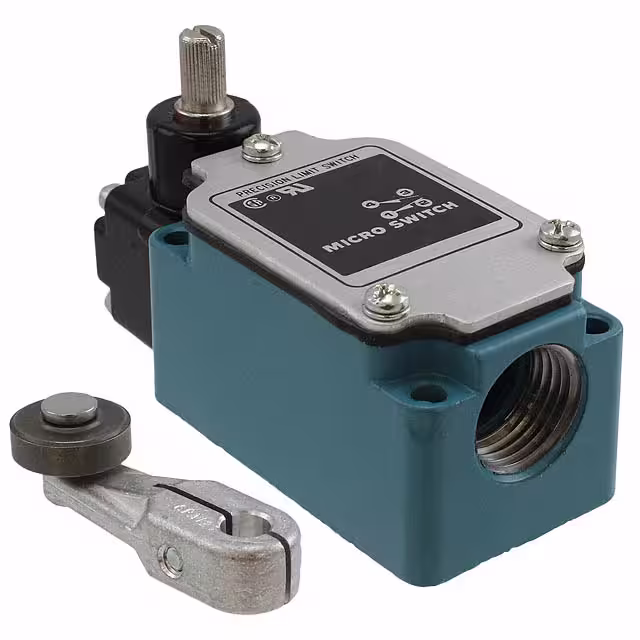

1LS1-L-SIGSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
9007AW16M11SWITCH LIMIT 15A 600V |
0 |
|
Datasheet |
Square D 9007AW | Box | Active | - | - | 15A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -51°C ~ 85°C |
|
5LS7SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1588gf | 454gf | 1.730" (43.9mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
LS4YAC2BSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03AM16PCSWITCH LIMIT SIDE ROTARY |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | Side Rotary - No Lever | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSD2FSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
GLCB07E7B-F049LIMIT SWITCH |
0 |
|
- |
GLC | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
HL300WNS2M26SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NO (DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
HL300WS2M1SWITCH LIMIT DPDT 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
LSYAC7LR-FPSWITCH SNAP ACTION DPDT 7A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 7A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
D4A-4Q17NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Sequence Action, Status Indicator | 40gfm | 5.103gfm | - | 12° | 6° | 65° | -10°C ~ 80°C |
|
|
51.715GFOOT SWITCHFM2SU2(2X)F2GY DPDTMO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
14XE1-12SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 255gf | 57gf | 0.429" (10.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
51.206RFOOT SWITCHFS2SU1R(2X)STDCLR 1NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9007CR67T10SWITCH NEMA LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007TYD5SWITCH LIMIT 12A 600V |
0 |
|
Datasheet |
T | Box | Active | - | - | 12A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007CR61CSWITCH LIMIT DPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
