Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
201LS3SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
XCKJ561LIMIT SWITCH 240VAC 10AMP XCKJ + |
0 |
|
Datasheet |
XCKJ | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
4HS79SWITCH SNAP ACT SPDT 0.5A 125V |
0 |
|
- |
HS | Bulk | Obsolete | SPDT | On-Mom | 500mA (AC), 25A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Wire Leads | - | - | 283 ~ 624gf | 113gf | 0.615" (15.6mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.010" (0.25mm) | -54°C ~ 121°C |
|
D5A-8511SWITCH SNAP ACTION PNP SLD ST |
1 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 400gf | - | 0.825" (21.0mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.197" (5.0mm) | -20°C ~ 75°C |
|
|
LSQUC3K170SWITCH LEVER FOR ROTARY |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | - | - | 46gf | - | - | 5° | 3° | 80° | - |
|
1LS3-4CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
T4016-040TMSWITCH SNAP ACTION FLAT ACT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03AH16PSWITCH LIMIT 2-SIDED PLUNGER |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | Side Plunger | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
51.461RFOOT SWITCHFL1U2SUSTDCLRGD 2NO/2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.719BFOOT SWITCH (2X)F1BK DPDTMAIN2MC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.719GFOOT SWITCH (2X)F1GY DPDTMAIN2MC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C66B2S10SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
606.1500.569FOOT SWITCH F1-ZSP1D |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
606.1500.570FOOT SWITCH F1-ZSP3D |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
606.2610.047FOOTSWITCH F2-U1Y/U1Z UN |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYLB7MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -40°C ~ 121°C |
|

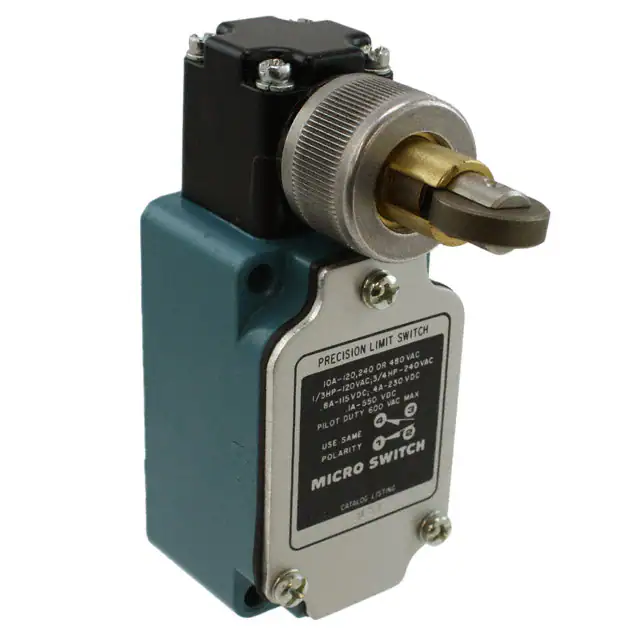

3LS1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
- |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
LSYLC4MX-FPSWITCH LIMIT |
0 |
|
- |
* | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSK7L-8CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Screw Terminal | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
|
3SE03AS16PCSWITCH LIMIT PLAIN SIDE PLNGR |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Plunger | Chassis Mount | Connector | - | - | - | - | - | - | - | - | - |
