Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCKVR54D1H29SWITCH LIMIT 4PST-NC 3A 240V |
0 |
|
Datasheet |
XCKV | Box | Active | 4PST-NC | On-Mom | 3A (AC), 550mA (DC) | 240 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
51.164RFOOT SWITCHFS1SU1DSU1USTDCLRGD 2 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

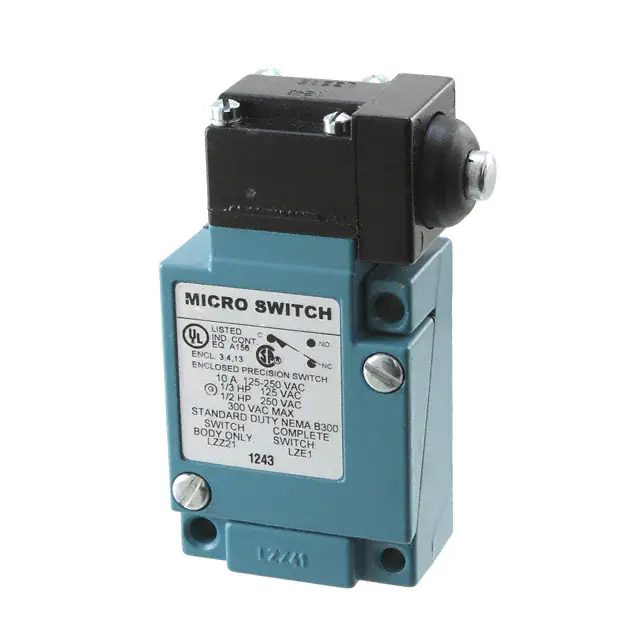

LZE1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
- |
LZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 120 V | - | Side Plunger | Chassis Mount | Screw Terminal | - | Sealed | 1377gf | - | - | 0.120" (3.0mm) | 0.005" (0.13mm) | 0.197" (5.0mm) | - |
|
9007CR53FSWITCH NEMA LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
SZL-WL-B-NSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYPB3KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 9° | 3° | 68° | -1°C ~ 105°C |
|
|
51.416RFOOT SWITCHFL1SU1DSU1SSTDCLRA/T |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9007CR61JSWITCH LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007CR61ESWITCH NEMA LIMIT 4PST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
51.251RFOOT SWITCHFS2U1(2X)USTDCLRGD 1N |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C52B1SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
201LS242SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 121°C |
|
|
LSYFB7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
LSA4L4SWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
GSXC01A1ESWITCH EXPLOSION PROOF LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BXE4LSWITCH LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V3-601SWITCH SNAP ACT SPDT 15.1A 125V |
0 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15.1A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113.392gf | 0.578" (14.68mm) | 0.031" (0.79mm) | 0.016" (0.4mm) | 0.010" (0.25mm) | - |
|
|
51.165RFOOT SWITCHFS1SU2SUSTDCLRGD 2NO/ |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.804BSWITCH SNAP ACTION BLACK IP43 |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSB2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary - No Lever | Chassis Mount | Plug In | - | - | 28gfm | - | - | 25° | 12° | 110° | -1°C ~ 121°C |
