Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51.412RFOOT SWITCHFL1U1DU1SSTDCLRA/T 2X |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZF1SWITCH SNAP ACTION SPDT SEALED |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8AS188SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPST-NO | Off-On | - | - | - | Lever, Roller | Panel Mount | Wire Leads | - | - | 595gf | 57gf | - | - | 0.018" (0.45mm) | 0.008" (0.2mm) | - |
|
|
9007C54B2P6SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
1PB557SWITCH LIMIT PB PNL MT SPDT 5A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

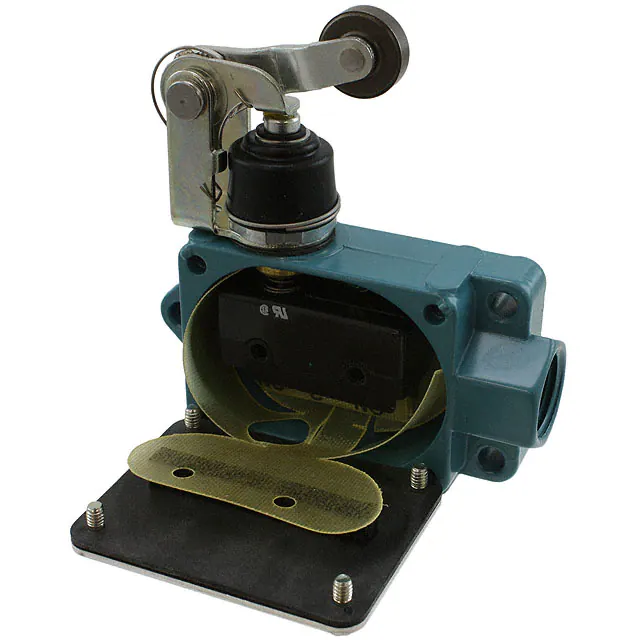

DTF2-2RN2-LHSWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
DTF | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 1134gf | 57gf | - | 0.310" (7.9mm) | 0.120" (3.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
WLD18-RP60-N 5MSWITCH LIMIT SEAL 5M CABLE |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLD28140N5MSWITCH SNAP ACTION AIRT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D5A-9514SWITCH SNAP ACTION PNP |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 3m | 400gf | - | 0.600" (15.2mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.158" (4.0mm) | -20°C ~ 75°C |
|
D5A-9515SWITCH SNAP ACTION PNP SLD ST |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 5m | 400gf | - | 0.600" (15.2mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.158" (4.0mm) | -20°C ~ 75°C |
|
|
LSQ053SWITCH SNAP ACTION SPDT 20A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-On | 20A (AC) | 120 V | - | Side Rotary, Roller | Chassis Mount | Connector | - | - | 46gf | - | - | 17° | 8° | 58° | -12°C ~ 121°C |
|
|
BAF1-3CNX1SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-On | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 680gf | - | 2.094" (53.2mm) | 0.094" (2.4mm) | - | 0.219" (5.6mm) | -32°C ~ 71°C |
|
3SF11141KA001BA1SWITCH LIMIT RND PLUNGER 2NC |
0 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 60°C |
|
|
HL100WS2M1SWITCH LIMIT DPDT 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
9007C54FP10Y19021SWITCH LIMIT 12A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 12A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
9007C66B1S22Y203SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
606.2830.417FOOT SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Foot Switch | - | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
616.1600.295FOOTSWITCH |
0 |
|
Datasheet |
- | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Foot Switch | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | - |
|
|
616.1000.443FOOT SWITCH, SINGLE PEDAL |
0 |
|
Datasheet |
- | Bulk | Active | 4PST-2NO/2NC | On-Off, Off-On | - | - | - | Foot Switch | - | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
5LS1-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 3175gf | 907gf | 1.730" (43.9mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
