Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSB6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary - No Lever | Chassis Mount | Plug In | - | - | 28gfm | - | - | 25° | 12° | 110° | -1°C ~ 121°C |
|
LSB7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 28gfm | - | - | 25° | 12° | 110° | -1°C ~ 121°C |
|
D5A-2100SWITCH SNP ACT SPST-NC 0.01A 24V |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | SPST-NC | On-Mom | 10mA (AC/DC) | 24 V | 12 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP40 | Cable Length 1m | 30gf | - | 0.079" (2.0mm) | - | 0.0002" (0.005mm) | 0.060" (1.5mm) | -20°C ~ 75°C |
|
D5A-2200SWITCH SNP ACT SPST-NC 0.01A 24V |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | SPST-NC | On-Mom | 10mA (AC/DC) | 24 V | 12 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP40 | Cable Length 1m | 50gf | - | 0.079" (2.0mm) | - | 0.0002" (0.005mm) | 0.060" (1.5mm) | -20°C ~ 75°C |
|
|
D5A-3212SWITCH SNAP ACTION PNP |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 50gf | - | 0.256" (6.5mm) | - | 0.0002" (0.005mm) | 0.060" (1.5mm) | -20°C ~ 75°C |
|
D5A-3300SWITCH SNP ACT SPST-NC 0.01A 24V |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | SPST-NC | On-Mom | 10mA (AC/DC) | 24 V | 12 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 100gf | - | 0.256" (6.5mm) | - | 0.0002" (0.005mm) | 0.060" (1.5mm) | -20°C ~ 75°C |
|

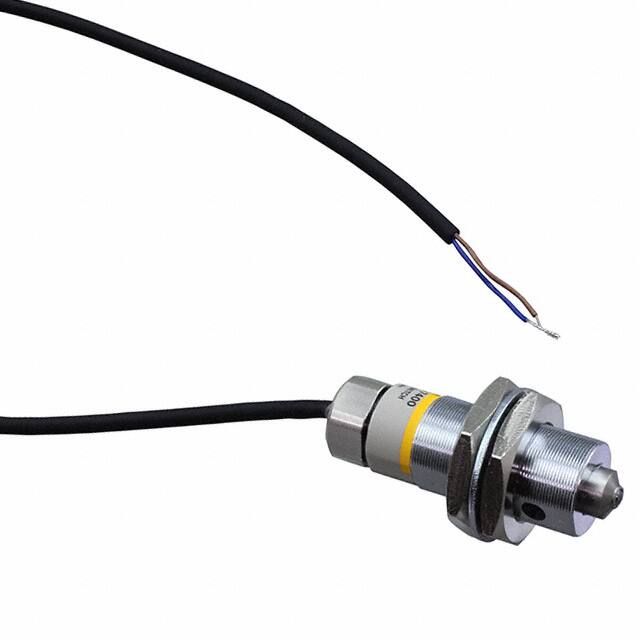

D5A-7400SWITCH SNP ACT SPST-NC 0.01A 24V |
0 |
|
Datasheet |
D5A | Bulk | Last Time Buy | SPST-NC | On-Mom | 10mA (AC/DC) | 24 V | 12 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 250gf | - | 0.173" (4.4mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.079" (2.0mm) | -20°C ~ 75°C |
|
|
606.2440.573TWOPEDAL FOOT SWITCH F2-SU2ZPS/S |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZW1SWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AO18SWITCH LIMIT DPDT 3A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-On | 3A (AC), 200mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
D4C-3202-MSWITCH SNAP ACTION SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67F - Dust Tight, Oil Resistant, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
606.2220.015FOOTSWITCH TWO PEDAL |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.162RFOOT SWITCHFS1U1DU1SUSTDCLRGDA/T |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCA12-RP-NSWITCH LIMIT RLLR LEVR CORRPROOF |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLBA02E7BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 10gfm | - | 18° | 18° | 8° | - | -25°C ~ 85°C |
|
|
HL300WN2M16SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NO (DM) | On-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
9007AEQ4090SWITCH LIMIT |
0 |
|
Datasheet |
Square D | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYDB2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 93°C |
|
|
LSXR3KSWITCH SNAP ACTION SPDT 10A 120V |
1 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 19gfm | - | - | 15° | 5° | 60° | -1°C ~ 121°C |
|
|
LSYDB4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 93°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
