Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

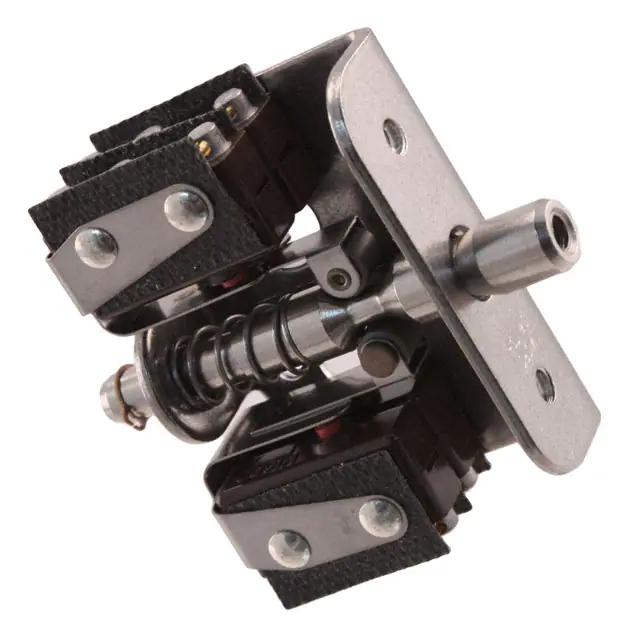

8AC1SWITCH SNAP ACT SPDTX4 5A 250V |
85 |
|
Datasheet |
AC | Bulk | Active | SPDT x 4 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Push-Pull Plunger | Chassis Mount | Solder Lug | - | - | - | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -53°C ~ 121°C |
|
3AC68SWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1360gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 149°C |
|
|
V3-1080SWITCH SNAP ACT SPST-NO 10A 250V |
200 |
|
Datasheet |
V3 | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113gf | 0.625" (15.9mm) | - | - | 0.040" (1.02mm) | - |
|
|
DTS 111 BP-TDETECTOR SWITCH, ON-(MOM), TOP A |
1,480 |
|
- |
DTS | Tape & Reel (TR) | Active | SPST-NC (DB) | On-Off | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | - | - | - | - | -40°C ~ 80°C |
|
|
DTS 205 CPTDECTECTOR SWITCH, OFF-MOM, SIDE |
2,299 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 3.6 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 41gf | - | 0.065" (1.65mm) | 45° | - | - | -40°C ~ 85°C |
|
|
DTS 205 CJ-TDECTECTOR SWITCH, OFF-MOM, SIDE |
2,289 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 3.6 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 41gf | - | 0.065" (1.65mm) | 45° | - | - | -40°C ~ 85°C |
|
|
DTS 110 CBP-RT-1DECTECTOR SWITCH, OFF-MOM, SIDE |
2,989 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 122gf | - | 0.287" (7.30mm) | 0.014" (0.35mm) | - | - | -40°C ~ 85°C |
|
|
SPVS310100SWITCH DETECT SPST-NO 0.001A 5V |
9,963 |
|
Datasheet |
SPVS | Tape & Reel (TR) | Active | SPST-NO | Off-On | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 36gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
AVT3200613SWITCH SNAP ACT SPDT 0.1A 125V |
200 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
DTS 110 BBP-RTDECTECTOR SWITCH, ON-(MOM), SIDE |
2,979 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 122gf | - | 0.287" (7.30mm) | 0.014" (0.35mm) | - | - | -40°C ~ 85°C |
|
|
MS-118305-ASWITCH SNAP ACT SPDT 100MA 30V |
7,940 |
|
Datasheet |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 25gf | - | 0.236" (6.0mm) | - | - | 0.020" (0.5mm) | -20°C ~ 70°C |
|
|
DTS 316 CP-RTDECTECTOR SWITCH, OFF-MOM, SIDE |
959 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 15gf | - | - | 0.020" (0.5mm) | - | - | -40°C ~ 85°C |
|
|
AH1664SWITCH ROLLER LVR SPDT 3A 125V |
350 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 55gf | 4.000gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
AV32023SWITCH SNAP ACTION SPDT 3A 125V |
199 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 50gf | 7.546gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

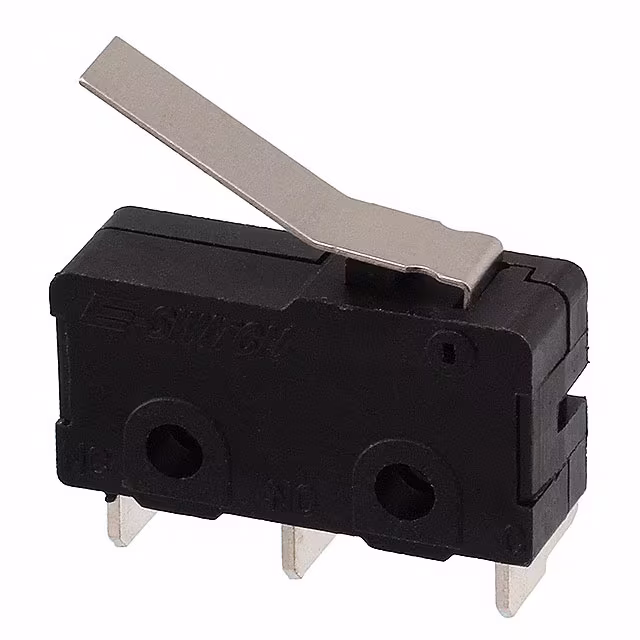

MS0850506F020V2ASWITCH SNAP ACTION SPDT 5A 125V |
594 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 20gf | 8.000gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
DE10VSNOPTRSLIDE SWITCH |
2,585 |
|
Datasheet |
DE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 50gf | - | 0.063" (1.6mm) | 0.037" (0.94mm) | - | 0.004" (0.1mm) | -40°C ~ 85°C |
|
|
AVT38243SWITCH HINGE LEVER SPDT 3A 125V |
440 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 35gf | 3.059gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AVT32143SWITCH HINGE LEVER SPDT 3A 125V |
280 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.467gf | 0.346" (8.80mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | -25°C ~ 85°C |
|
|
AV35423SWITCH ROLLER LEVER SPDT 3A 125V |
200 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 16gf | 1.530gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AV34443SWITCH ROLLER LEVER SPDT 3A 125V |
198 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 35gf | 2.957gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
