Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV3244SWITCH ROLLER LEVER SPDT 3A 125V |
197 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 35gf | 2.957gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AVT3232SWITCH SNAP ACTION SPDT 3A 125V |
196 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 12gf | 1.224gf | 0.346" (8.80mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.063" (1.6mm) | -25°C ~ 85°C |
|
|
AVT3242SWITCH ROLLER LEVER SPDT 3A 125V |
180 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 16gf | 1.530gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AH1684619SWITCH ROLLER LVR SPDT 0.1A 125V |
396 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 26gf | 2.000gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
ZX40E10A01SWITCH SNAP ACTION SPDT 3A 125V |
306 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.051" (1.3mm) | 0.012" (0.3mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
AH1860619SWITCH SNAP ACT SPDT 0.1A 125V |
245 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AVM32053SWITCH SNAP ACTION SPDT 5A 125V |
200 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AVM3205SWITCH SNAP ACTION SPDT 5A 125V |
198 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AVL32053SWITCH SNAP ACTION SPDT 5A 125V |
104 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
DE30HSNOTRSLIDE SWITCH |
2,991 |
|
Datasheet |
DE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 50gf | - | 0.091" (2.3mm) | 0.035" (0.9mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
DTS-06A-1-CTSWITCH DETECTOR SPST-NO 0.1A 30V |
659 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 30gf | - | 0.240" (6.1mm) | 0.020" (0.5mm) | - | - | -40°C ~ 85°C |
|
|
DE50HSNOPTRSLIDE SWITCH |
3,791 |
|
Datasheet |
DE | Tape & Reel (TR) | Active | SPDT | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.055" (1.4mm) | 0.043" (1.1mm) | - | 0.015" (0.4mm) | -40°C ~ 85°C |
|
|
DTS 209 CP R-TDECTECTOR SWITCH, OFF-MOM, SIDE |
3,439 |
|
Datasheet |
DTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | - | 36gf | - | - | 0.016" (0.41mm) | - | - | -10°C ~ 60°C |
|

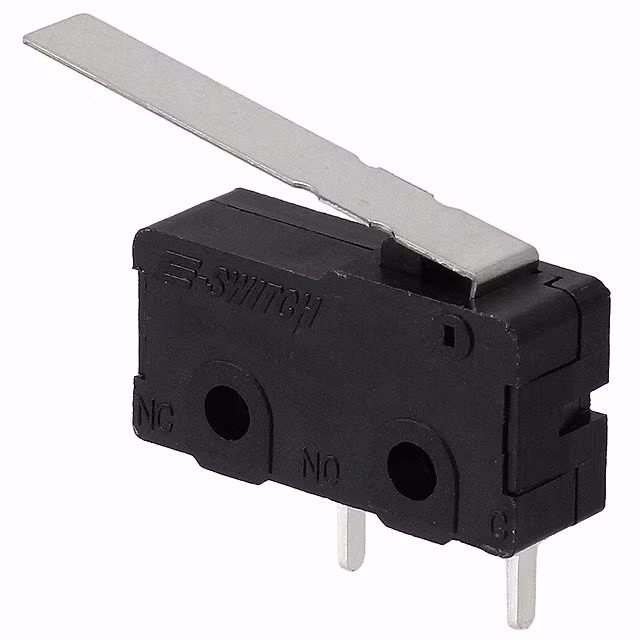

MS0850503F040P1CSWITCH SNAP ACT SPST-NO 5A 125V |
288 |
|
Datasheet |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 20gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
AVT3220613SWITCH HINGE LVR SPDT 0.1A 125V |
268 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 7.954gf | 0.306gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AV3834613SWITCH HINGE LVR SPDT 0.1A 125V |
199 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 25gf | 2.549gf | 0.346" (8.80mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.063" (1.6mm) | -25°C ~ 85°C |
|
|
AVT3844613SWITCH ROLLER LVR SPDT 0.1A 125V |
180 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 35gf | 2.957gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
DE60VJNOTRSLIDE SWITCH |
2,300 |
|
Datasheet |
DE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 40gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
AVL3225SWITCH HINGE LEVER SPDT 5A 125V |
190 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 55gf | 4.000gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
AVL32153SWITCH HINGE LEVER SPDT 5A 125V |
190 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 60gf | 4.000gf | 0.346" (8.80mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
