Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMGGF5L0CSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
11SM401-TSWITCH SNAP ACTION SPDT 5A 250V |
176 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

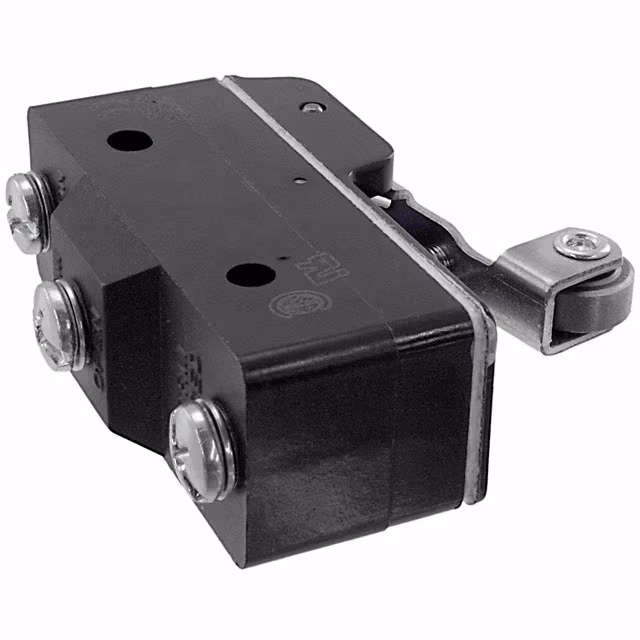

BZ-7RW82255518TSWITCH SNAP ACTION SPDT 15A 125V |
106 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 198gf | 43gf | 1.188" (30.2mm) | - | 0.050" (1.3mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-2RD72-A2SWITCH SNAP ACTION SPDT 1A 125V |
196 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
BZ-2RQ1SWITCH SNAP ACTION SPDT 15A 125V |
322 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

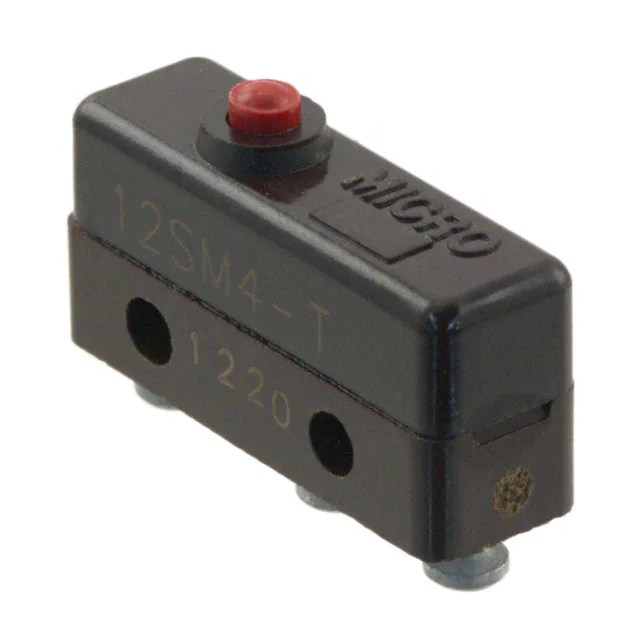

12SM4-TSWITCH SNAP ACTION SPDT 1A 125V |
200 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|

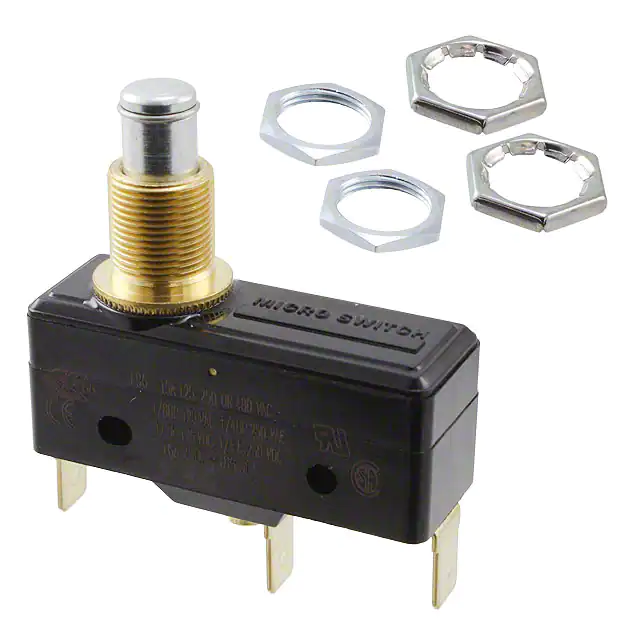

BZ-2RQ1-D6SWITCH SNAP ACTION SPDT 15A 125V |
157 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
83137052SWITCH SNAP ACTION SPDT 5A 250V |
273 |
|
Datasheet |
83137 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -20°C ~ 125°C |
|
6SX7-TSWITCH SNAP ACTION SPDT 1A 125V |
145 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 204°C |
|
GLDB01A4JSWITCH SNAP ACTION SPDT 6A 120V |
13 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
12SX2-TSWITCH SNAP ACTION SPDT 1A 125V |
158 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|

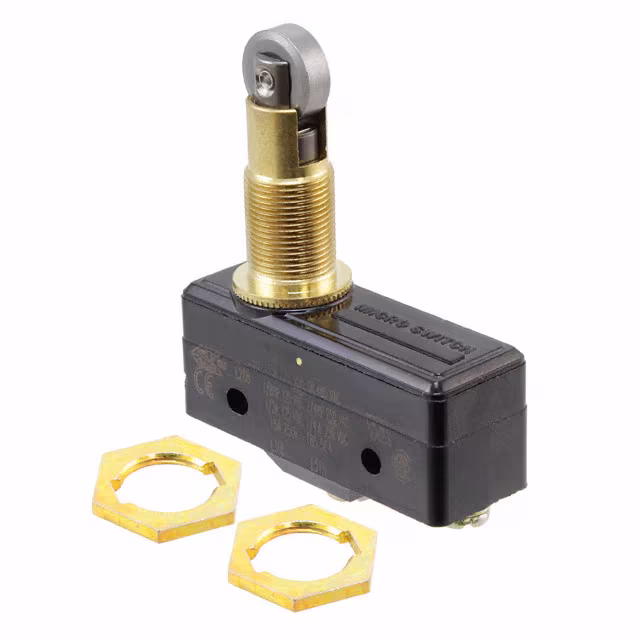

BZ-2RQ18TSWITCH SNAP ACTION SPDT 15A 125V |
169 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
313SX3-TSWITCH SNAP ACTION SPDT 1A 125V |
165 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 20gf | 3.059gf | 0.305" (7.75mm) | 0.185" (4.7mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | -55°C ~ 125°C |
|
BM-1RQ18-A2SWITCH SNAP ACTION SPDT 22A 125V |
196 |
|
Datasheet |
BM | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 198 ~ 283gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

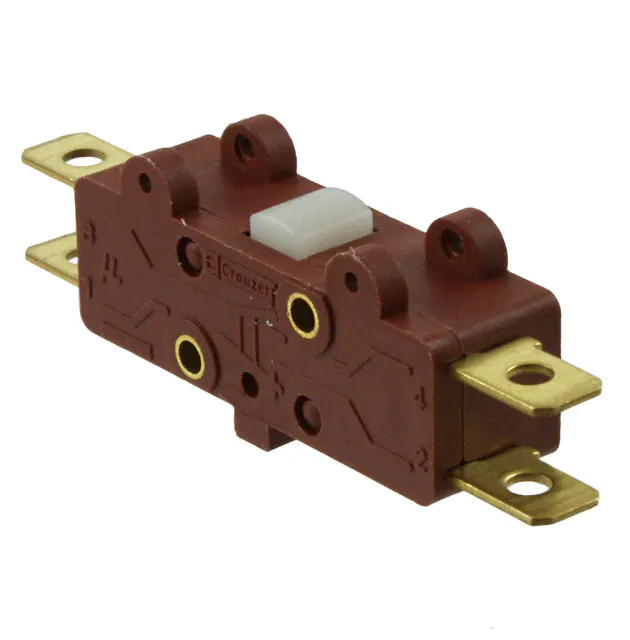

83154001SWITCH SNAP ACTION SPDT 5A 250V |
322 |
|
Datasheet |
83154 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (DC) | - | 250 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Magnetic Blowout | 400gf | 100gf | 0.451" (11.45mm) | - | 0.026" (0.65mm) | 0.026" (0.7mm) | -40°C ~ 125°C |
|

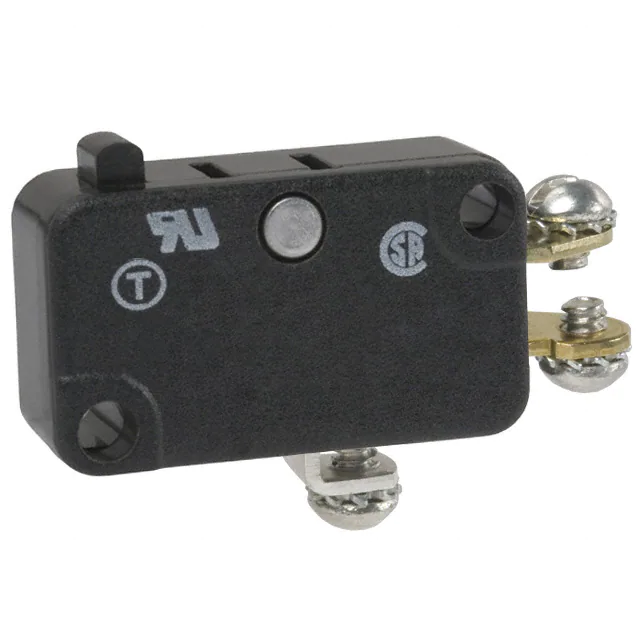

V3-129SWITCH SNAP ACTION SPDT 11A 125V |
195 |
|
- |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 227gf | 57gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
83139103SWITCH SNAP ACTION SPDT 5A 125V |
300 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m, Explosion Proof | 306gf | 61gf | 0.343" (8.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
WW2K29H-D9SWITCH PLUNGER 3PST 3A QC |
200 |
|
Datasheet |
WW | Bulk | Active | 3PST-2NO/1NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | - |
|
83884102SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Overtravel Plunger | Panel Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|

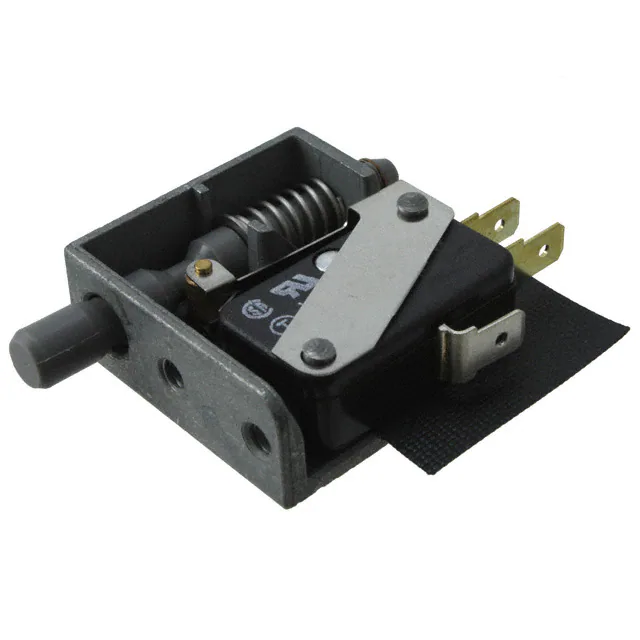

22AC1-D8SWITCH SNAP ACTION SPDT 15A 125V |
194 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
