Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15T16-EZ100A06SWITCH SNAP ACTION SPDT 16A 250V |
1,172 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 10gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|

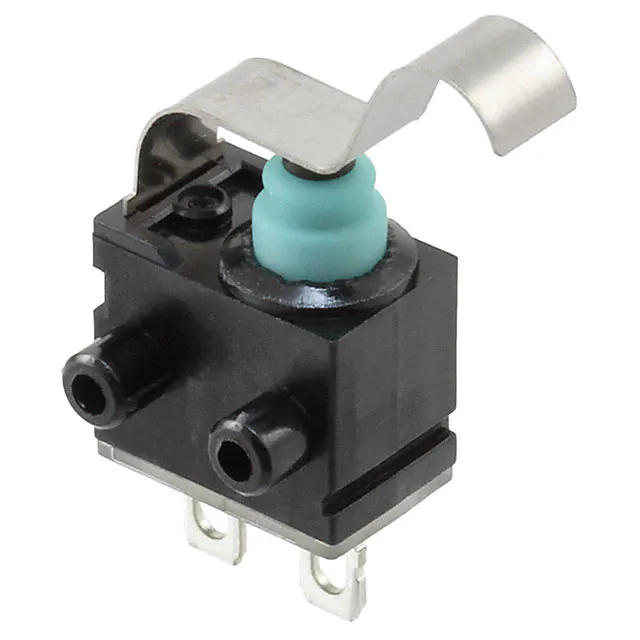

ASQM16438SWITCH SNP ACT SPST-NO 0.05A 16V |
990 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
ASQ10327SWITCH SNAP ACT SPST-NC 0.1A 30V |
949 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|

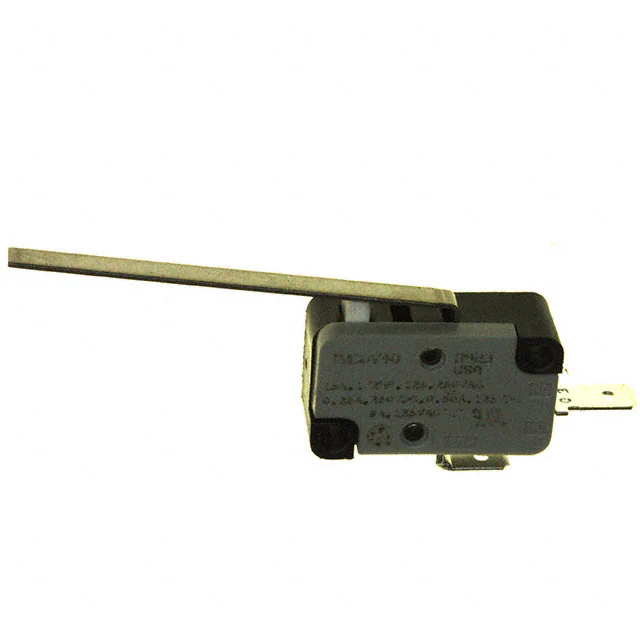

TMCJG6VT1640YSWITCH SNAP ACT SPST-NO 15A 125V |
328 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 10gf | 0.600" (15.2mm) | 0.312" (7.9mm) | 0.090" (2.3mm) | 0.141" (3.6mm) | -55°C ~ 150°C |
|
D3V-11G26-1C24-KSWITCH SNAP ACTION 11A 250V |
172 |
|
Datasheet |
D3V | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V-155-1C26SWITCH SNAP ACTION SPDT 15A 250V |
103 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V7-5F17D8-289SWITCH SNAP ACTION SPDT 3A 125V |
192 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 8.000gf | - | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.028" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|

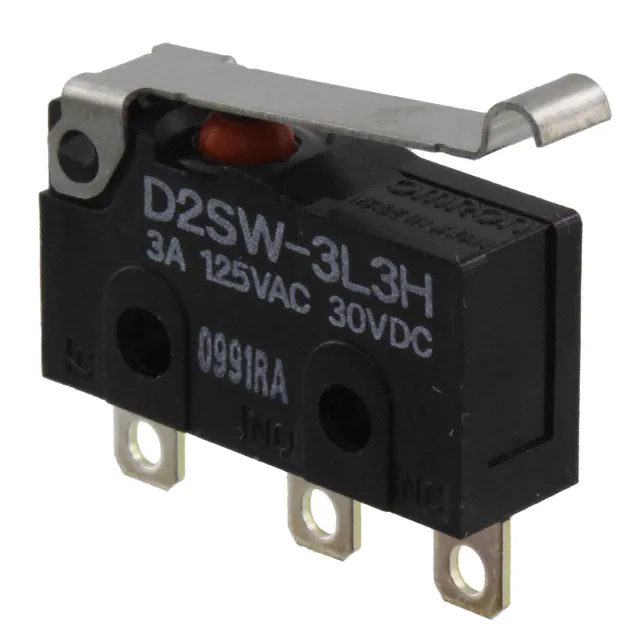

D2SW-3L3HSWITCH SNAP ACTION SPDT 3A 125V |
152 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
D2SW-3L3TSWITCH SNAP ACTION SPDT 3A 125V |
618 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2F-L2-DSWITCH SNAP ACTION SPDT 3A 125V |
691 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D3V-21G5-1C4A-KSWITCH SNAP ACT SPDT 21A 250V |
233 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 21A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 145gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 85°C |
|
ZMT03ACJS05KCE22SWITCH SNAP ACTION SPDT 3A 125V |
496 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 48gf | 7.000gf | 0.358" (9.1mm) | 0.138" (3.5mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|
VM3SBQF1802L04SWITCH LIMIT SPST-NC 10A 125V |
101 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 190gf | 80gf | 0.602" (15.30mm) | 0.071" (1.8mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
|
PP2-7H1-2D2SWITCH DETECTOR DPDT 10A 277V |
1,753 |
|
Datasheet |
PP2 | Bulk | Active | DPDT | On-Mom | 10A (AC) | 277 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | IP40 | - | - | - | 0.378" (9.6mm) | - | - | - | 0°C ~ 85°C |
|
|
ZMTG03CJS02WCE24SWITCH SNAP ACTION SPDT 3A 125V |
202 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 50gf | 8.000gf | 0.398" (10.1mm) | 0.118" (3.0mm) | - | 0.024" (0.6mm) | -40°C ~ 85°C |
|
V-15G3-1B5-KSWITCH SNAP ACTION SPDT 15A 250V |
275 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|

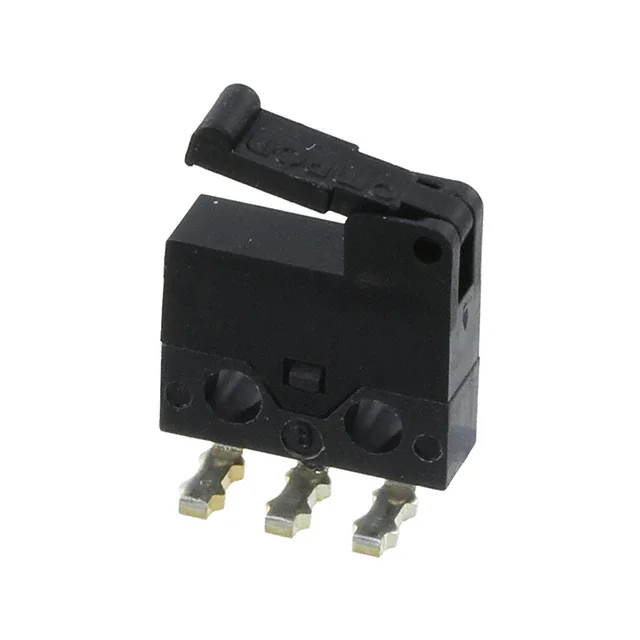

D2MQ-4L-105-1-RSWITCH SNAP ACT SPDT 0.05A 30V |
166 |
|
Datasheet |
D2MQ | Bulk | Active | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 40gf | 4.079gf | 0.280" (7.1mm) | 0.083" (2.1mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|
V15W2-EZ100-W2SWITCH SNAP ACTION SPDT 5A 125V |
1,770 |
|
Datasheet |
V15W2 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 100gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
VM3SAQF1802L06SWITCH LIMIT SPST-NO 10A 125V |
146 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 240gf | 100gf | 0.807" (20.50mm) | 0.060" (1.5mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
TFCDK6ST1040CSWITCH SNAP ACTION SPDT 11A 277V |
894 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 10gf | 0.600" (15.2mm) | 0.060" (1.5mm) | 0.015" (0.38mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
